18
HCD-DX155/DX255

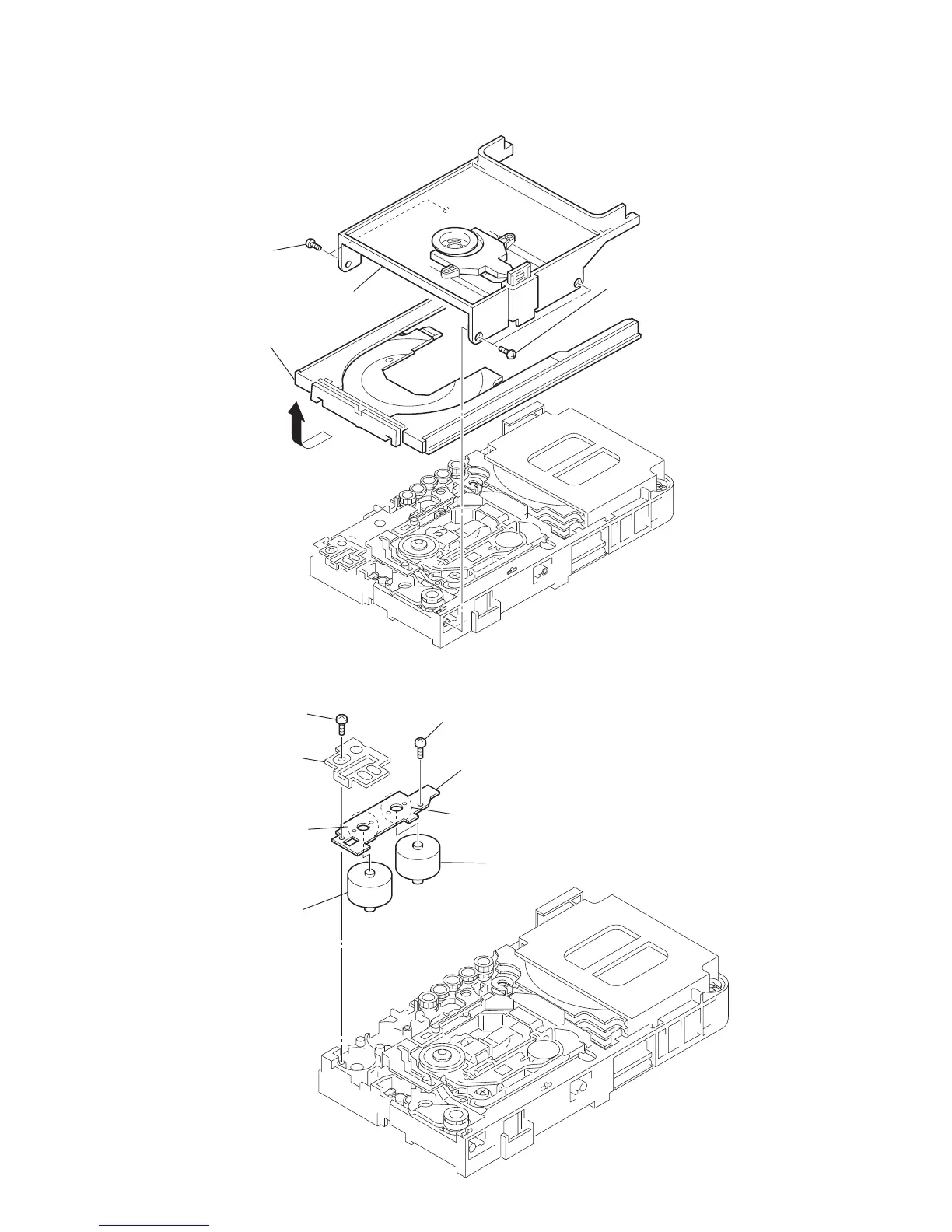

3-10. TRAY
1
two
screws
(+BTTP 2.6
)
2
two
screws
(+BTTP 2.6)
3
bracket
4
5
tray
1
screw
(+BTTP 2.6)
2
bracket
3
screw
(+BTTP 2.6)
4
MOTOR board
5
Remove soldering from the two points.
6
M761 (LD/ST MOTOR)
7
Remove soldering from the two points.
8
M762 (BU U/D MOTOR)
3-11. MOTOR BOARD M761 (LD/ST MOTOR), M762 (BU U/D MOTOR)
