Sony HCD-DX255 - Gear (BU1)

23
HCD-DX155/DX255
2 screw
(+PTPWH 2.6 × 8)
4 screw
(+PTPWH 2.6
× 8)
6 screw
(+PTPWH 2.6
× 8)
3 pulley (BU)
5 gear (BU2)
7 gear (BU1)
1 belt (sub tray)
gear (BU1)
cam (BU)

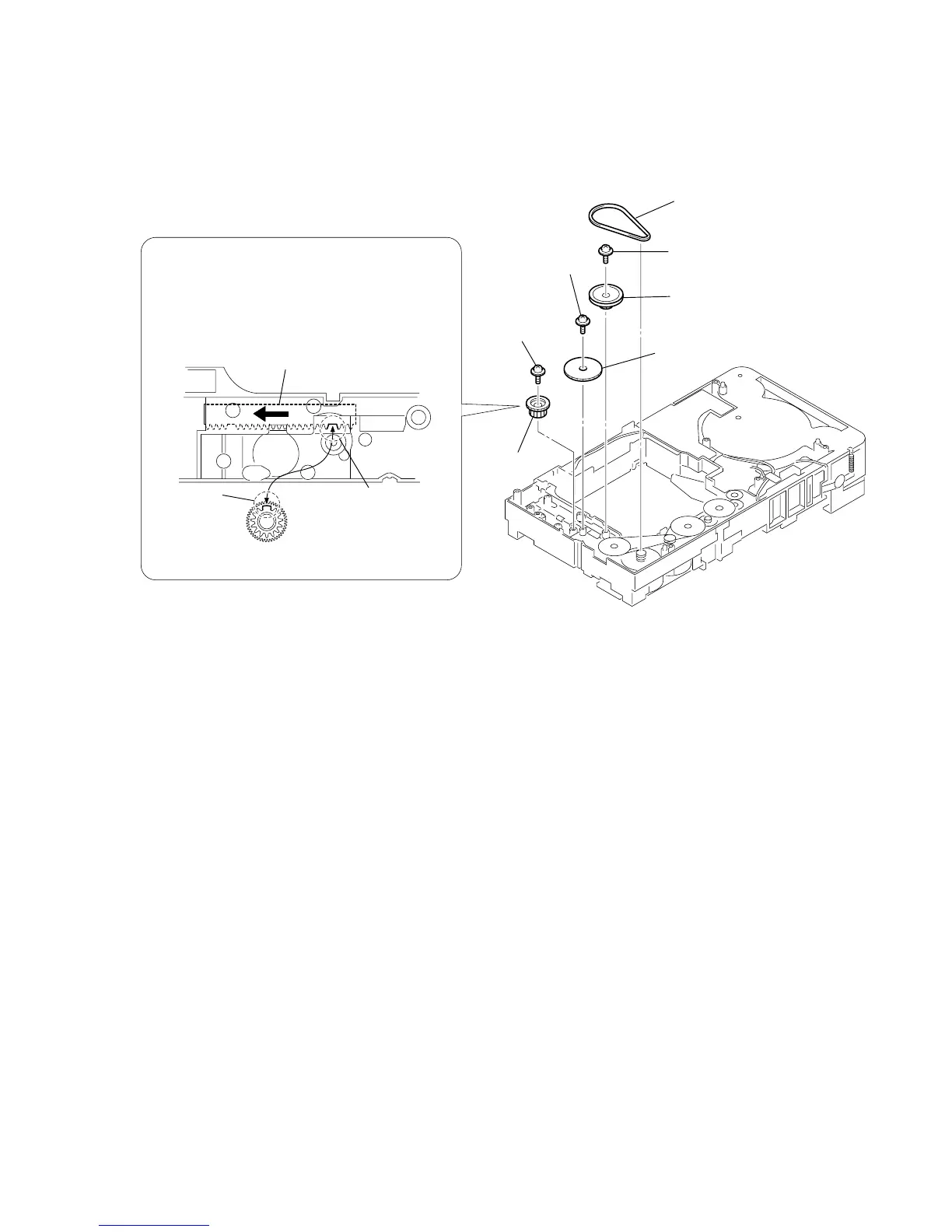

PRECAUTION DURING GEAR (BU1) INSTALLATION
Before re-assembling, slide the cam (BU) in the direction of
the arrow.
Assemble the gear (BU1) in such a manner that the groove
of the cam (BU) is aligned with the rib of the gear (BU1).
rib
groove
3-20. GEAR (BU1)
