19
HCD-DX155/DX255
1
two floating
screws
(+PTPWH2.6)
2
floating
screw
(+PTPWH2.6)
3
base unit (DVBU101)
1
two
screws
(+BTP 2.6
×
8
)
2
two
screws
(+BTP 2.6
×
8
)
6
holder (310) assy
4
insulator
screw
7
insulator
screw
qd
optical pick-up
(KHM-310CAB)
5
0
insulator
qa
insulator
8
insulator
screw
qs
insulator
3
insulator
screw
9
insulator

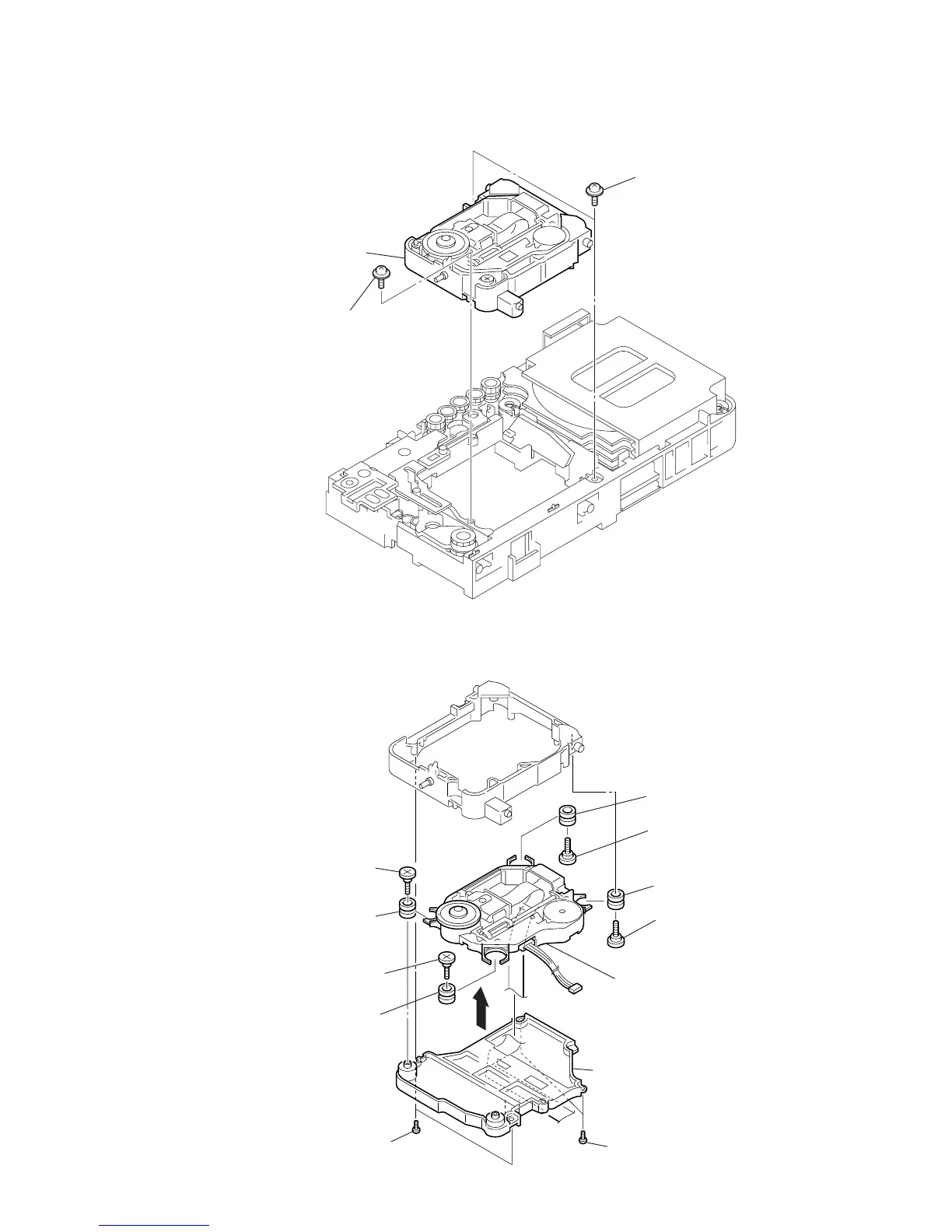

3-12. BASE UNIT (DVBU101)
3-13. OPTICAL PICK-UP (KHM-310CAB)
