68
HCD-DX155/DX255
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 2-654-836-01 KNOB (VOL)
52 2-654-835-01 RING (VOL)
53 2-653-097-01 ORNAMENT (RIGHT)
54 2-653-096-01 ORNAMENT (PLAY)
55 2-653-098-01 WINDOW, INDICATION
56 2-664-622-01 SHEET (WINDOW), ADHESIVE
57 2-653-095-01 ORNAMENT (POWER)
58 2-653-085-11 PANEL, FRONT (DX155: E3, SP, AUS)
58 2-653-085-21 PANEL, FRONT (DX155: US, CND)
58 2-653-085-31 PANEL, FRONT (DX255)
58 2-653-085-41 PANEL, FRONT (DX155: MX)
59 2-653-941-01 BUTTON (POWER)
60 3-087-053-01 +BVTP2.6 (3CR)
61 2-653-091-01 BUTTON (DISC)
62 2-653-094-01 INDICATOR (DISC)
63 2-653-942-01 BUTTON (PLAY)
64 A-1148-823-A LED BOARD, COMPLETE
65 A-1148-824-A JACK BOARD, COMPLETE
66 A-1148-821-A FL BOARD, COMPLETE
67 1-828-384-11 WIRE (FLAT TYPE) (23 CORE)
68 3-531-576-01 RIVET
S800 1-418-725-51 ENCODER, ROTARY (12 TYPE)
(– + VOLUME)

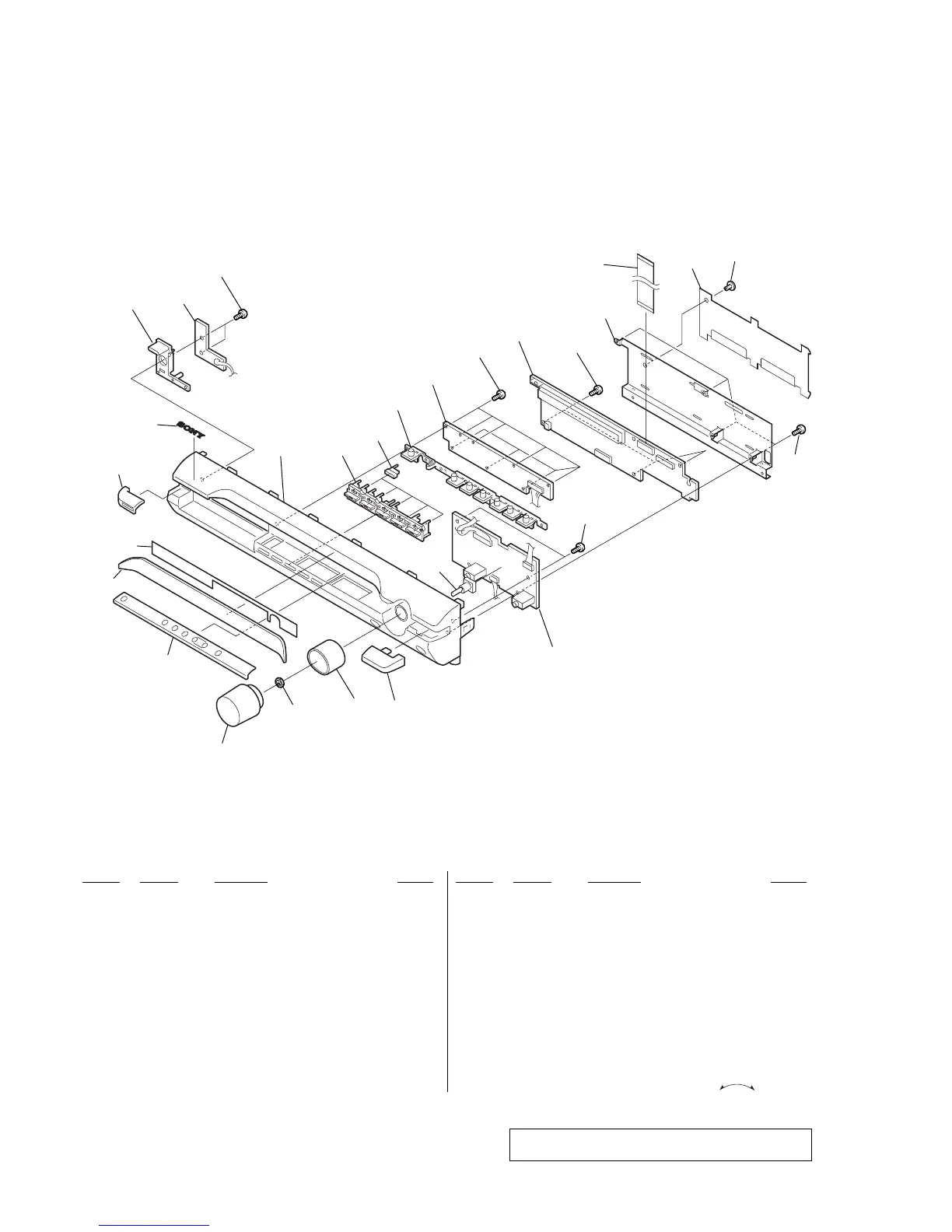

7-2. FRONT PANEL SECTION
53
54
55
56
57
58
51
52
including
S800
S800
60
67
60
66
60
60
68
60
61
62
63
64
65
59
not
supplied
not
supplied
not
supplied
not
supplied
Note: If the wire (flat type) was replaced, fold it some as the
wire (flat type) before replacement.
