69
HCD-DX155/DX255
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 3-077-331-21 +BV3 (3-CR)
102 1-828-369-11 WIRE (FLAT TYPE) (21 CORE)
103 1-828-331-11 WIRE (FLAT TYPE) (13 CORE)
104 1-828-301-11 WIRE (FLAT TYPE) (7 CORE)
105 1-828-327-11 WIRE (FLAT TYPE) (13 CORE)
106 3-077-331-01 +BV3 (3-CR)
✩ 107 A-1151-985-A MAIN BOARD, COMPLETE (DX155: US, CND)
✩ 107 A-1152-007-A MAIN BOARD, COMPLETE (DX155: SP)
✩ 107 A-1152-028-A MAIN BOARD, COMPLETE (DX255)
✩ 107 A-1171-566-A MAIN BOARD, COMPLETE (DX155: E3)
✩ 107 A-1172-050-A MAIN BOARD, COMPLETE (DX155: AUS)
✩ 107 A-1172-052-A MAIN BOARD, COMPLETE (DX155: MX)
108 A-1144-950-A POWER BOARD, COMPLETE (E3, SP, AUS)
108 A-1146-005-A POWER BOARD, COMPLETE
(DX155: US, CND/DX255)
108 A-1146-091-A POWER BOARD, COMPLETE (DX155: MX)
0 109 1-827-226-41 CORD, POWER (DX155: MX)
0 109 1-829-259-11 CORD, POWER (DX155: AUS)
0 109 1-830-188-11 CORD, POWER (DX155: E3, SP)
0 109 1-830-190-11 CORD, POWER (DX155: US, CND/DX255)
110 3-703-244-00 BUSHING (2104), CORD (EXCEPT DX155: MX)
* 110 3-703-571-12 BUSHING (S) (4516), CORD (DX155: MX)
111 4-232-478-41 FOOT
112 4-059-585-01 TIE, CABLE
113 2-597-972-01 SHEET, RADIATION (DX255: CND)
113 2-597-972-21 SHEET, RADIATION (DX155: EXCEPT US)
113 2-597-972-51 SHEET, RADIATION (DX255: US)
113 2-597-972-61 SHEET, RADIATION (DX155: US)
114 2-597-972-11 SHEET, RADIATION
115 2-677-839-01 +PWH 3X8 (SUMITITE)
116 1-828-774-51 WIRE (FLAT TYPE) (24CORE)
117 2-683-531-01 PWB WASHER (DX155: E3, SP, AUS)
0 F901 1-532-325-00 FUSE (T6.3AL/250V)(DX155: E3, SP, AUS)
0 F901 1-532-749-11 FUSE, GLASS CYLINDRICAL (DIA.5)(8A/125V)
(DX155: US, CND, MX/DX255)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3
#4 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3

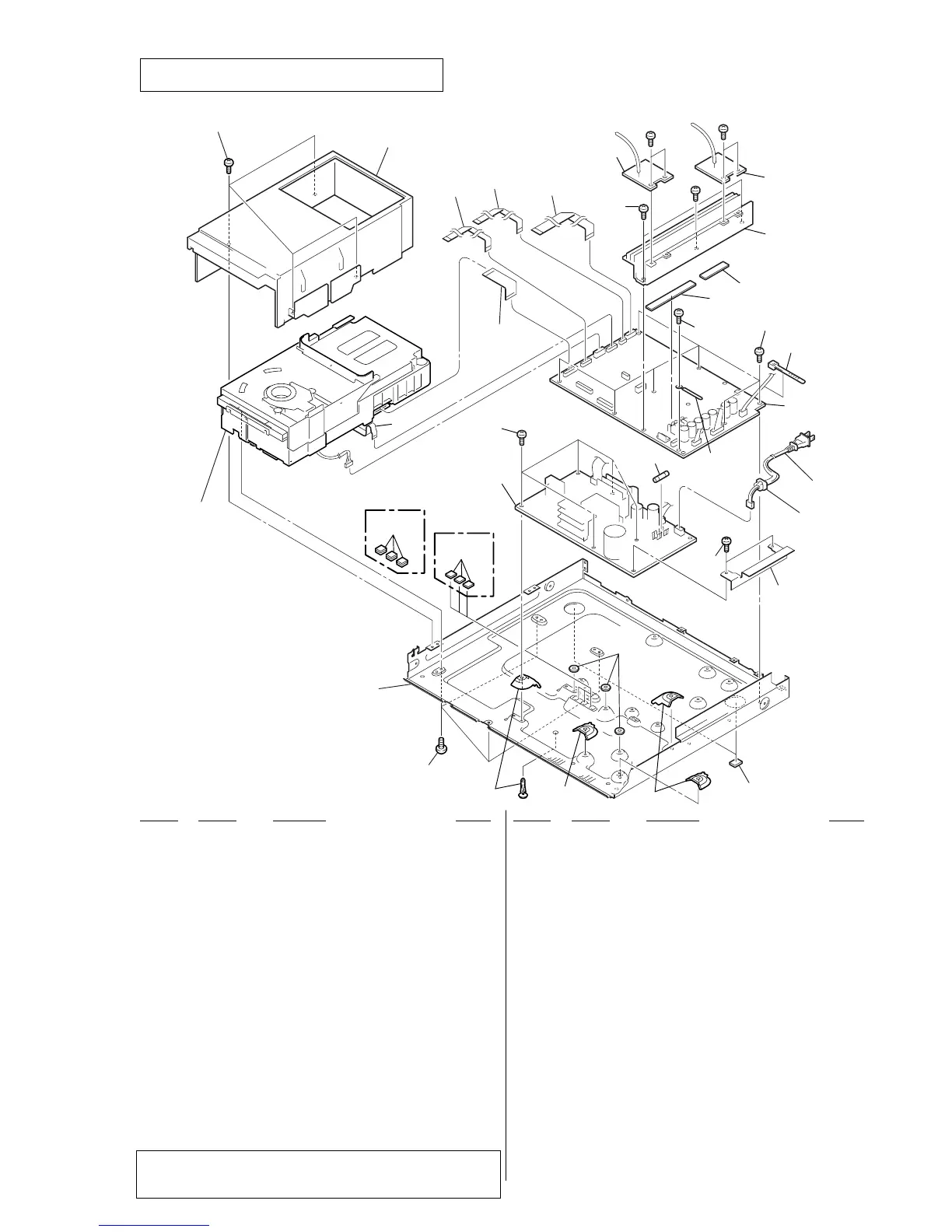

7-3. CHASSIS SECTION
✩ New part of EEP ROM (IC1103) on the MAIN board cannot be used.
Therefore, if the mounted MAIN board (A-1151-985-A, etc.) is replaced,
exchange new EEP ROM (IC1103) with that used before the replacement.
Note: If the wire (flat type) was replaced, fold it some as the
wire (flat type) before replacement.
F901
101
not supplied
101
103
104
105
DVD mechanism
deck section
108
111
117
115
116
101
113
114
107
106
101
not
supplied
not supplied
not
supplied
not
supplied
#2
#4
102
109
110
112
#1
not
supplied
not
supplied
#1
not
supplied
not supplied
not
supplied
not
supplied
not
supplied
(DX155 :
SP, AUS, E3)
(Except
DX155 :
SP, AUS, E3)
Ver. 1.2
