HCD-EC68/EC78
11

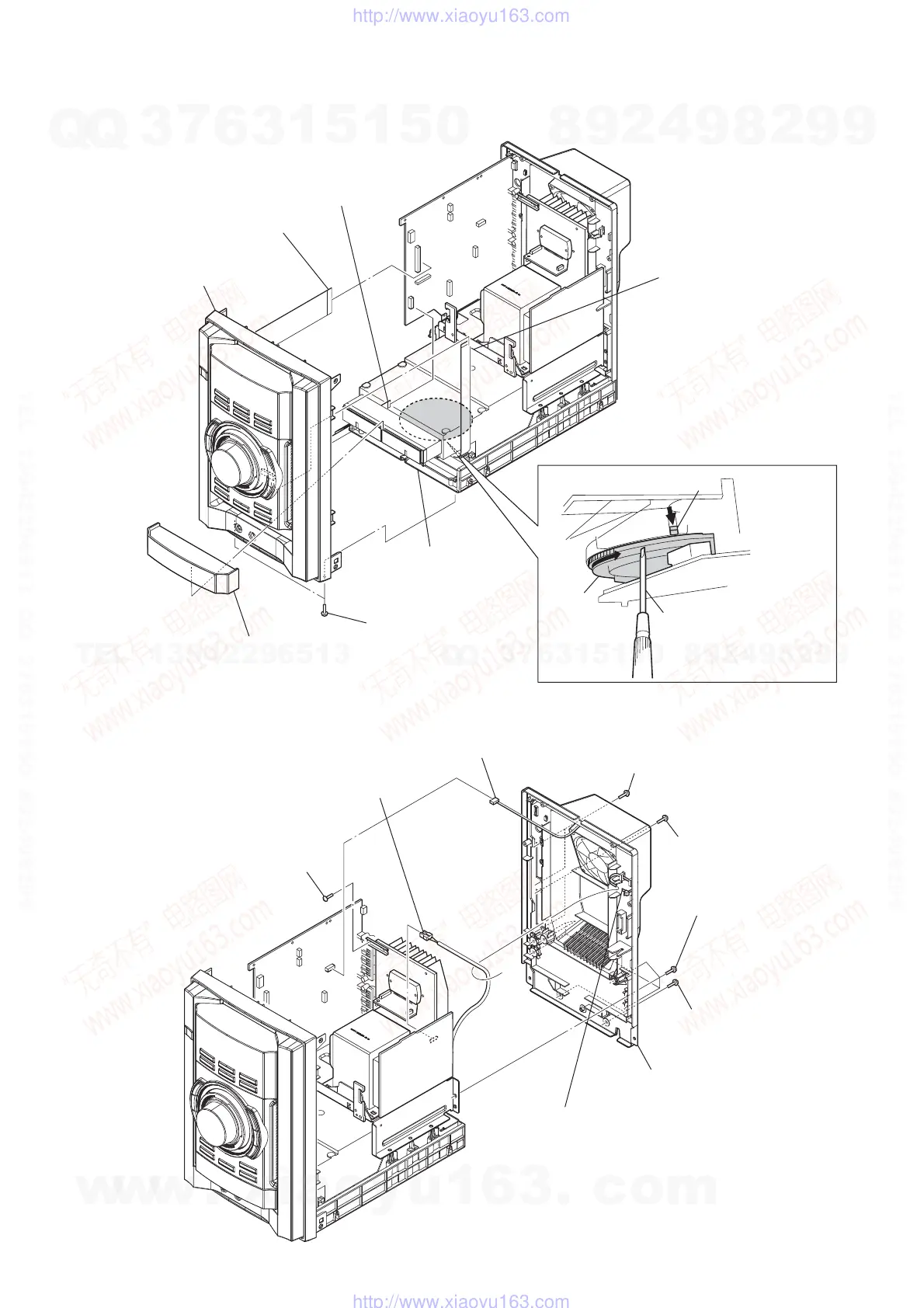

3-6. FRONT PANEL SECTION
two screws
(BVTP3
×
10)
flexible flat cable
(9 core)
(CN605)
Turn a gear by a driver
till a lever falls down
to the position of the figure.
pull the tray by hand.
lever
gear
flexible flat cable (27 core)
(CN607)
flexible flat cable (13 core)
(CN302)
door (CD)
front panel section
3-7. BACK PANEL BLOCK
six screws
(BVTP3
×
10)
two screws
(BVTP3
×
10)
screw
(BVTP3
×
10)
connector (power cord)
(CN053)
connector (CN601)
back panel block
Cut the clamp.
two screws
(BVTP3
×
10)
two screws
(BVTP3
×
10) (EC78)
Note: Please do not forget fixation by clamping
when you install the power cord.
