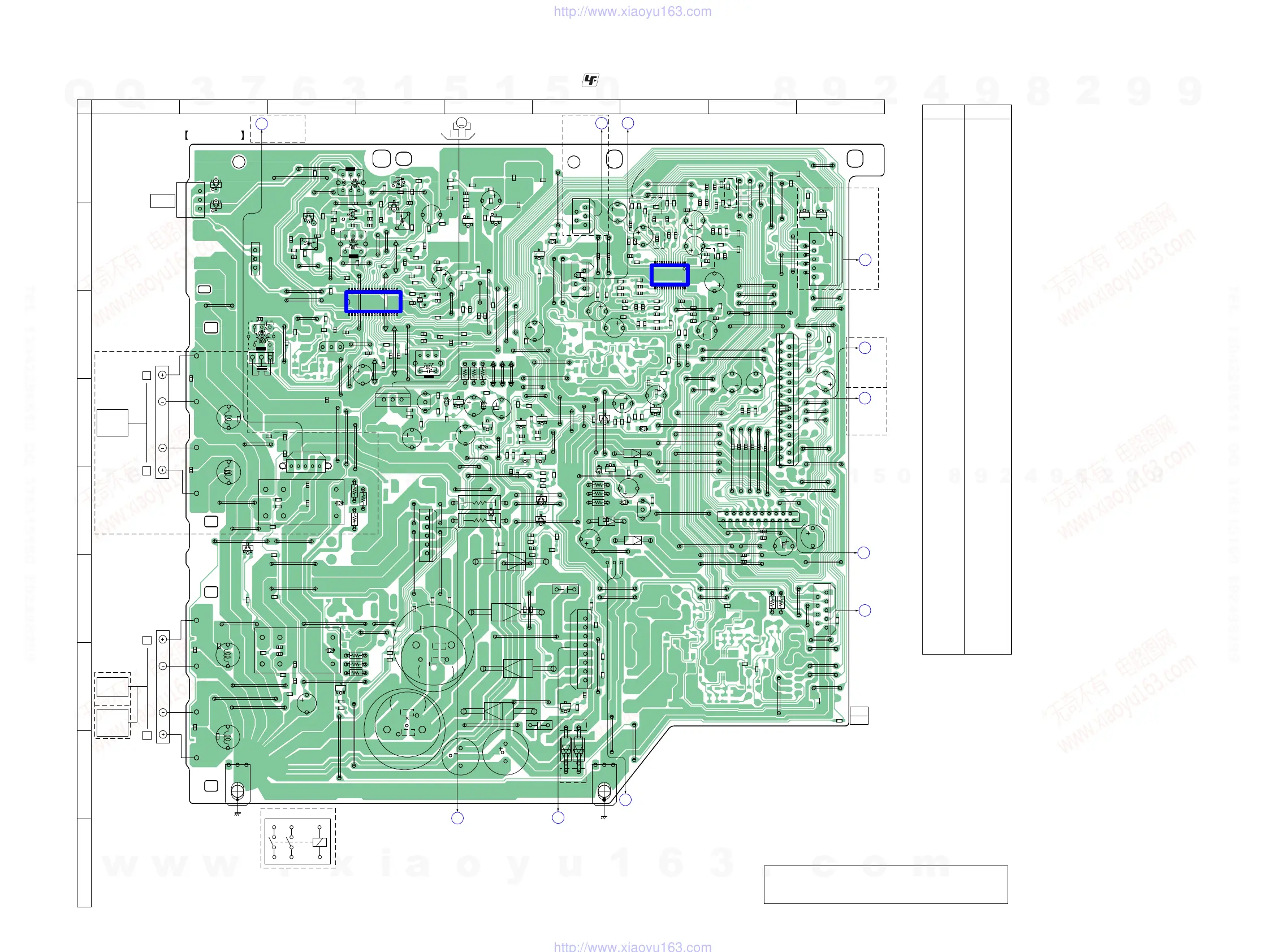

7-5. PRINTED WIRING BOARD - MAIN Board -
• : Uses unleaded solder.
• See page 23 for Circuit Boards Location.
(Page 30)
(Page 30)
Ref. No. Location
• Semiconductor
Location
D601 E-2
D602 E-6
D603 E-3
D604 G-3
D605 D-5
D606 E-6
D607 G-5
D608 F-5
D609 G-5
D610 F-5
D611 H-6
D612 H-6
D614 B-6
D615 D-7
D617 D-6
D618 E-6
D619 E-6
D620 E-7
D621 D-5
D622 D-5
D628 D-7
D629 H-6
D630 H-6
D631 E-7
D791 E-5
D801 B-3
D802 A-4
D803 B-4
D804 B-3
D805 B-2
D806 A-2
IC602 B-7
IC801 C-4
Q601 D-4
Q602 D-5
Q603 D-5
Q604 G-3
Q605 D-6
Q606 D-5
Q608 B-6
Q611 D-5
Q612 D-6
Q616 B-9
Q617 B-9
Q618 D-7
Q619 G-6
Q622 E-6
Q624 E-7
Q801 B-5
Q802 B-5
(Page 32)
(Page 24)
(Page 31)
(Page 34)
(Page 34)
(Page 35)
(Page 32)
Note: Refer to “SUFFIX-12/SUFFIX-13 DISCRIMINATION
OF PANEL BOARD” (page 3) of the servicing notes
for suffi x-12 and suffi x-13.
