HCD-EC68/EC78
12

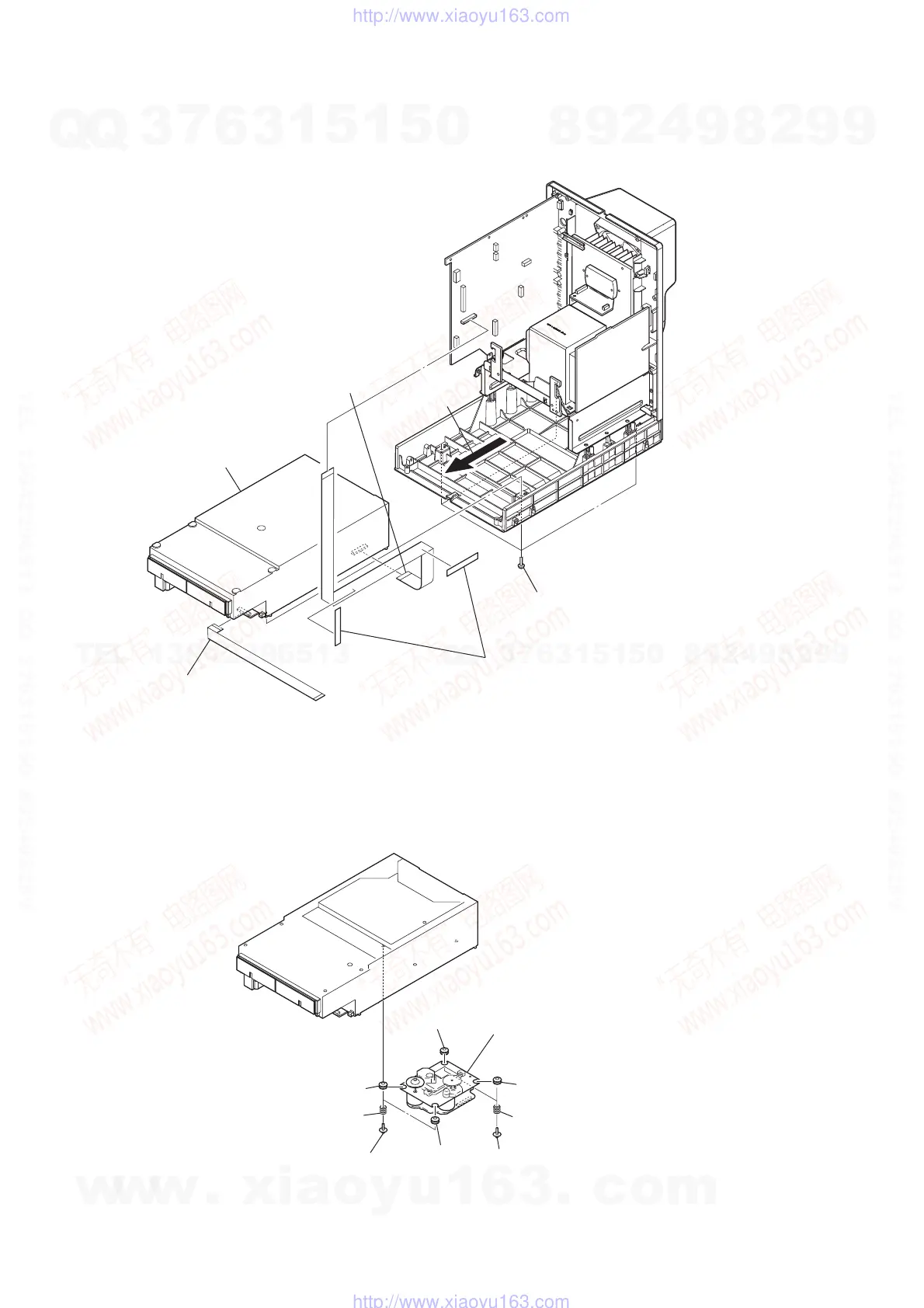

3-8.
CD MECHANISM BLOCK
3-9.
BU BLOCK
four
screws
(BVTP3
×
10)
two
tapes
flexible flat cable
(21
core)
(MAIN board: CN608/
CD board: CN201)
flexible flat cable (13 core)
CD mechanism block
Note:
When installing the CD mechanism section,
install two tapes for prevention of noise.
two
screws
(PTPWHM2.6)
two coil springs
(insurator)
two coil springs
(insurator)
insulator
insulator
insulator
insulator
BU
block
two
screws
(PTPWHM2.6)
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
11
13
Table of Contents
Default Chapter
1
Te L 13942296513
1
Table of Contents
2
1 Servicing Notes
3
2 General
6
Other Operations
7
3 Disassembly
8
Disassembly Flow
8
Side Panel (L)/(R)
9
Top Panel (EC68: UK Model)/Top Panel Block (Except EC68: UK Model)
9
Tape Mechanism Deck (Except EC68: UK Model)
10
MAIN Board
10
Front Panel Section
11
Back Panel Block
11
CD Mechanism Block
12
BU Block
12
OP Base Assy (KSM-213D)
13
4 Test Mode
14
5 Mechanical Adjustments
18
6 Electrical Adjustments
18
7 Diagrams
23
Printed Wiring Board - CD Board
24
Schematic Diagram - CD Board
25
Printed Wiring Board
26
DECK Board (Except EC68: UK Model)
26
Printed Wiring Board - MAIN Board
27
Schematic Diagram - MAIN Board (1/2)
28
Schematic Diagram - MAIN Board (2/2)
29
Printed Wiring Board - HI AMP Board (EC78)
30
Schematic Diagram - HI AMP Board (EC78)
30
Printed Wiring Board - LOW AMP Board
31
Schematic Diagram - LOW AMP Board
31
Printed Wiring Board - PANEL Board (Suffi X-12)
32
Printed Wiring Board - PANEL Board (Suffi X-13)
32
Schematic Diagram - PANEL Board
33
Printed Wiring Boards - KEY Section
34
Schematic Diagram - KEY Section
34
Printed Wiring Board - PT Board
35
Schematic Diagram - PT Board
36
8 Exploded Views
44
Panel Section
44
Tape Deck Section (Except EC68: UK)
45
Front Panel Section
46
Chassis Section
47
Main Section
48
CD Mechanism Section (CDM88A-K6BD90-WOD)
49
9 Electrical Parts List
50
