HCD-EC98P
13

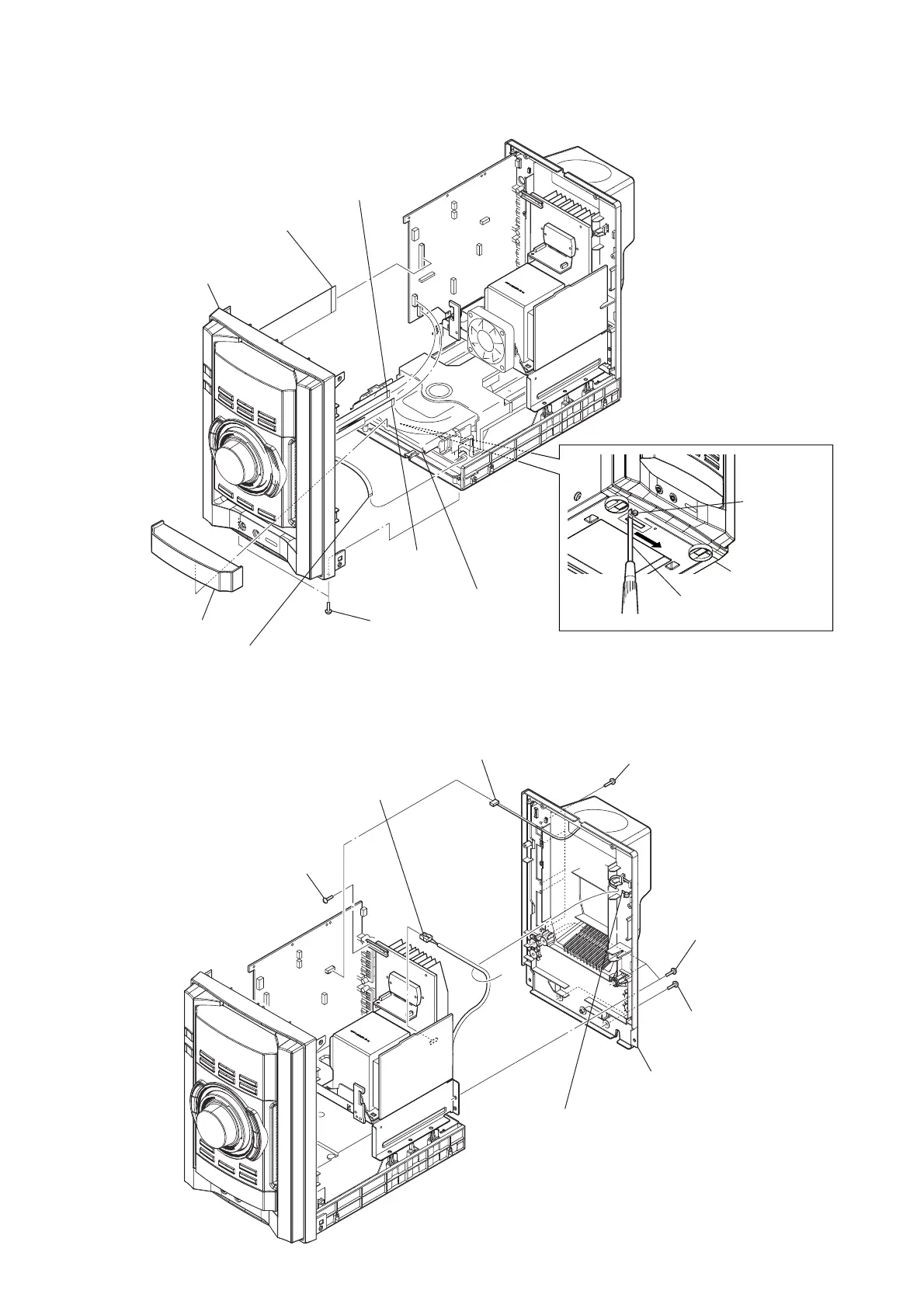

3-6.
FRONT P
ANEL BLOCK (US and Canadian models)
two
screws
(BVTP3
×
10)
flexible flat cable
(9 core) (CN605)
flexible flat cable
(5 core) (CN001)
flexible flat cable
(1
1 core) (CN609)
Slide the boss by a driver
.
pull the tray by hand.
flexible flat cable (31 core)
(CN803)
door (1 CD-G)
front panel block
boss
bottom side
3-7.
BACK P
ANEL BLOCK
four
screws
(BVTP3
×
10)
two
screws
(BVTP3
×
10)
screw
(BVTP3
×
10)
connector (power cord)
(CN053)
fan connector (CN601)
back panel block
Cut the clamp.
five
screws
(BVTP3
×
10)
Note:
Please do not forget fixation by clamping
when you install the power cord.
