HCD-EC98P
201 1-797-193-12 MECHANICAL, CD (DLM3A)
202 2-632-062-11 BELT (DLM3A)
203 4-227-045-31 SPRING (INSULATOR), COIL
204 4-227-549-31 INSULATOR
205 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
0 206 A-4735-357-A BASE ASSY, OP (KSM-213D)
207 1-832-404-21 CABLE, FLEXIBLE FLAT (16 CORE)
208 A-1217-914-A CD BOARD, COMPLETE
209 2-584-656-01 WASHER, POLYETHYLENE
S201 1-771-853-11 SWITCH, DETECTION (LIMIT)

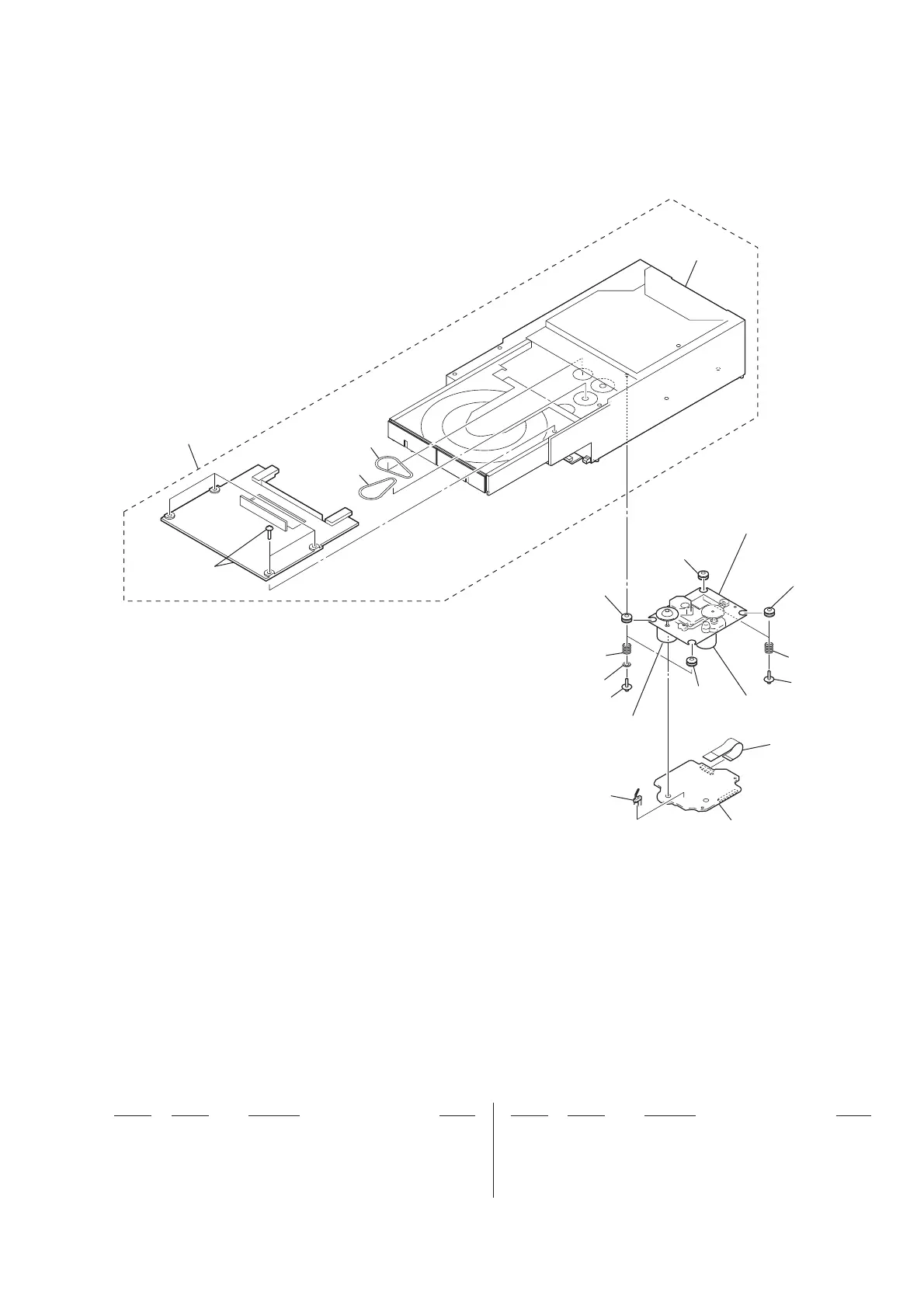

7-5. 3 CD MECHANISM SECTION (Australian model)
(CDM88A-K6BD90-WOD)
206
(including sled motor (M402),
spindle motor (M401))
207
208
S201
sled motor (M402)
spindle motor (M401)
203
203
204
204
204
204
202
202
205
209
201
not supplied
not supplied
205
