49
HCD-EC98P
101
109
102
102
104
106
107
#1
#1
#1
#1
#2
#2
main section
not supplied
not supplied
not supplied
(US, CND) (AUS)
3 CD mechanism section
not supplied
(AC HOLD board)
M601
108
107
105
105
105
105
105
1 CD mechanism section
"
"
101 1-832-838-21 CABLE, FLEXIBLE FLAT (13 CORE) (AUS)
102 4-225-252-01 CUSHION (FOOT)
104 3-701-748-00 CLAMP
105 3-254-143-11 SCREW (B3), (+) BV TAPPING
0 106 1-834-967-21 CORD, POWER (AUS)
0 106 1-834-978-11 CORD, POWER (US, CND)
107 1-834-181-21 CABLE, FLEXIBLE FLAT (21 CORE) (AUS)
107 1-835-334-21 CABLE, FLEXIBLE FLAT (21 CORE) (US, CND)
108 1-832-666-21 CABLE, FLEXIBLE FLAT (5 CORE) (US, CND)
109 3-229-336-11 SCREW, +BVWH TAPPING (AUS)
M601 1-787-400-11 D.C. FAN
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
#2 7-685-661-14 SCREW +BVTP 4X12 TYPE2 N-S
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

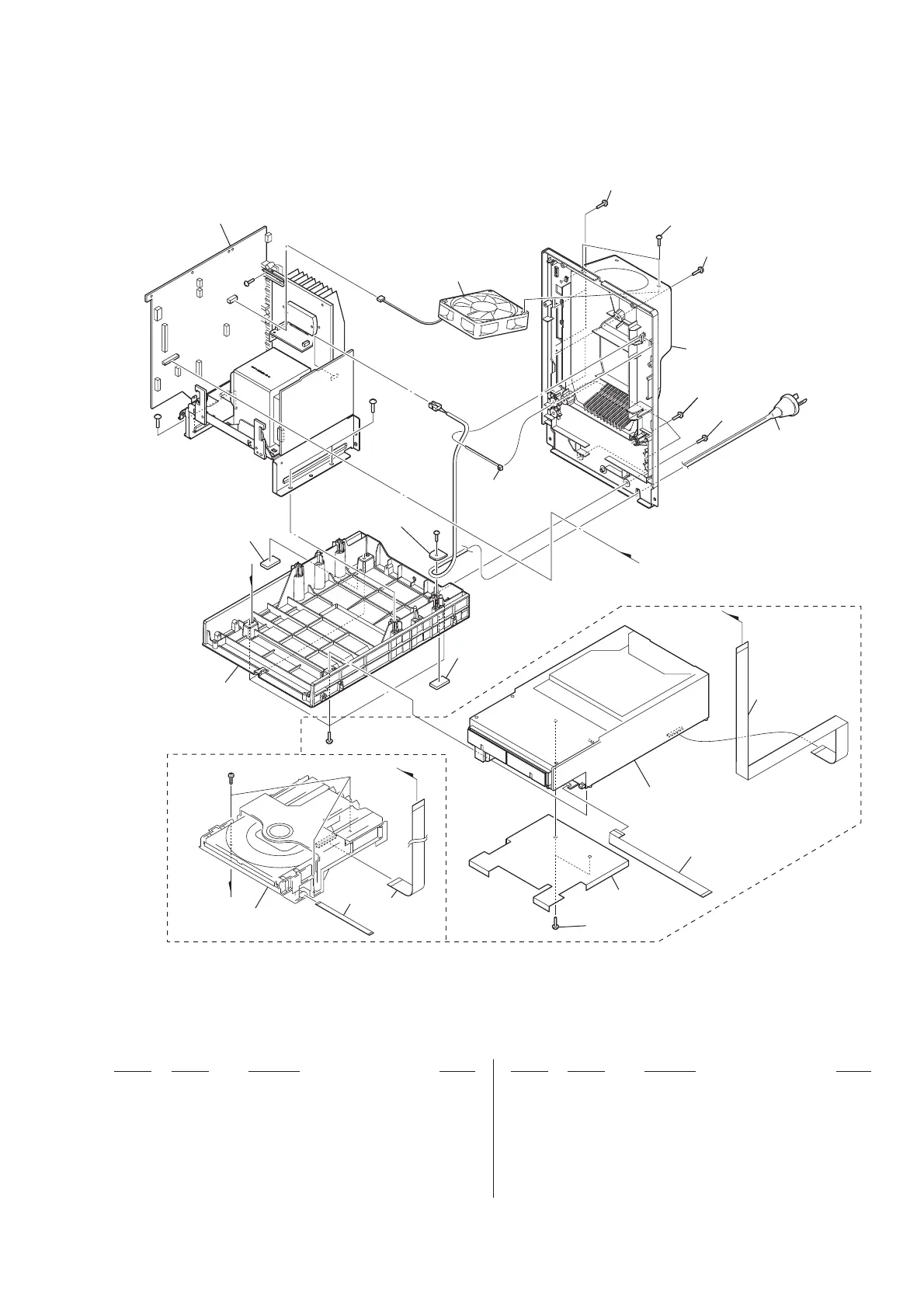

7-3. CHASSIS SECTION
