HCD-EC98P
HCD-EC98P
3030

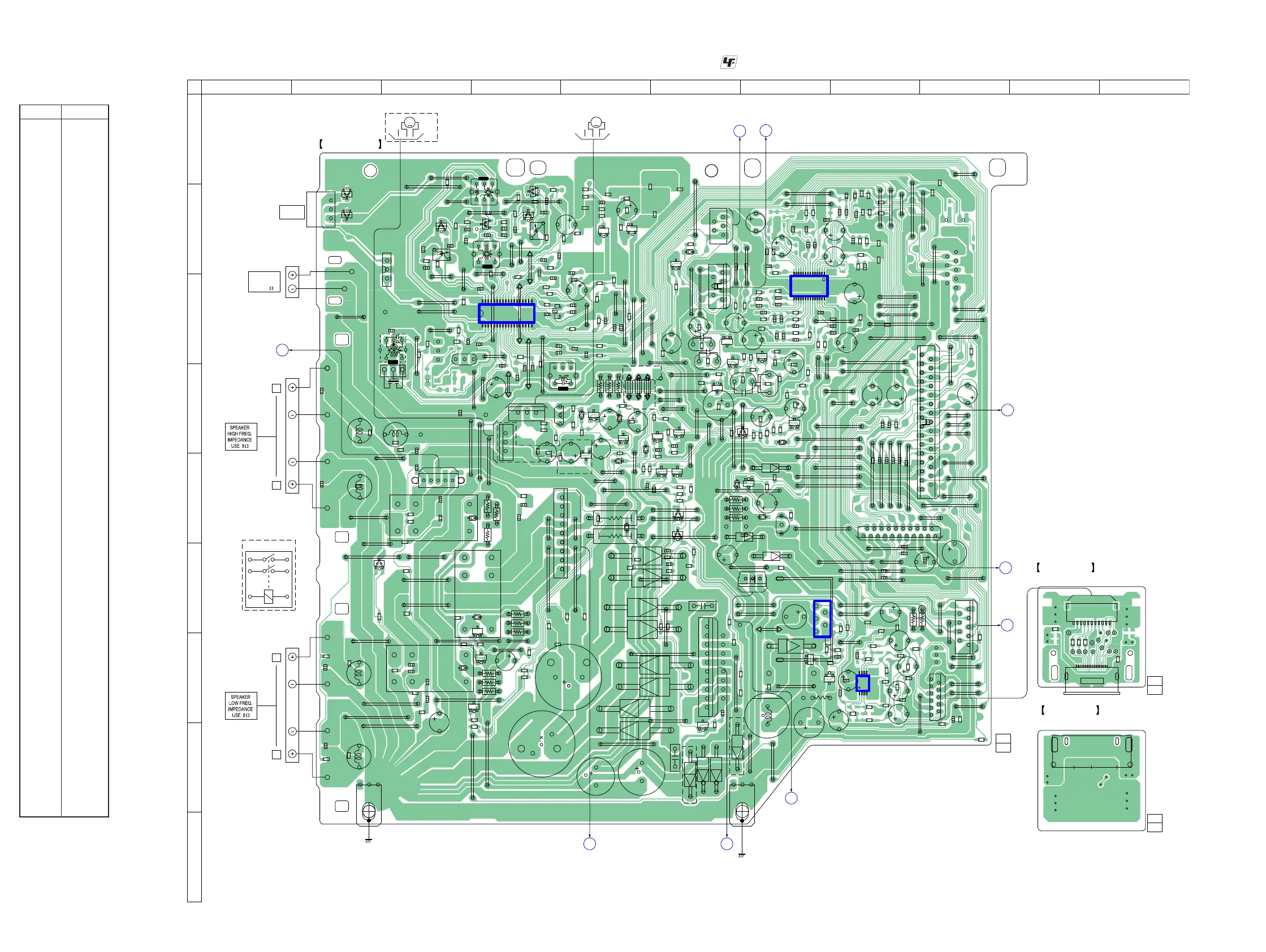

6-5. PRINTED WIRING BOARDS - MAIN Section -
• : Uses unleaded solder.
• See page 27 for Circuit Boards Location.
(Page 35)
Ref. No. Location
• Semiconductor
Location
D601 F-2
D602 E-6
D603 E-4
D604 G-3
D605 E-5
D606 E-6
D607 G-6
D608 F-5
D609 H-5
D610 F-5
D611 H-6
D612 H-6
D614 B-6
D615 E-7
D617 D-7
D618 E-6
D619 E-7
D620 F-7
D621 D-5
D622 D-5
D623 G-6
D624 F-5
D625 G-5
D626 F-5
D628 D-7
D631 E-7
D633 H-6
D634 H-6
D701 G-7
D702 F-4
D703 D-5
D791 E-5
D801 B-4
D802 B-4
D803 B-4
D804 B-3
D805 B-2
D806 B-2
IC602 C-7
IC701 F-7
IC770 G-8
IC801 C-4
Q601 D-4
Q602 D-5
Q603 D-5
Q604 G-4
Q605 E-6
Q606 E-6
Q607 E-5
Q608 B-6
Q611 D-6
Q612 D-6
Q618 D-7
Q619 H-6
Q622 E-7
Q624 E-7
Q700 D-6
Q701 C-7
Q702 C-6
Q703 C-6
Q704 F-4
Q705 G-4
Q761 G-7
Q762 G-7
Q801 B-5
Q802 B-5
(Page 34)
(Page 39)
(Page 36)
(Page 28)
(Page 35)
(Page 38)
(Page 38)
(Page 34)
