HCD-EC98P
SECTION 7
EXPLODED VIEWS
1 3-276-203-01 DOOR (CD) (AUS)
1 3-298-721-01 DOOR (1CD-G) (US, CND)
2 3-363-099-32 SCREW (CASE 3 TP2)
3 2-890-831-01 PANEL (L), SIDE (US, CND)
3 2-890-831-11 PANEL (L), SIDE (AUS)
4 2-890-830-01 PANEL (R), SIDE (US, CND)
4 2-890-830-11 PANEL (R), SIDE (AUS)
5 2-890-829-01 PANEL (TOP) (US, CND)
5 2-890-829-11 PANEL (TOP) (AUS)
6 3-254-143-11 SCREW (B3), (+) BV TAPPING
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
#5 7-685-247-14 SCREW +KTP 3X10 TYPE2 NON-SLIT
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice.
Some delay should be anticipated when
ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
R R
Parts of Color Cabinet’s Color
• Abbreviation
AUS : Australian model
CND : Canadian model

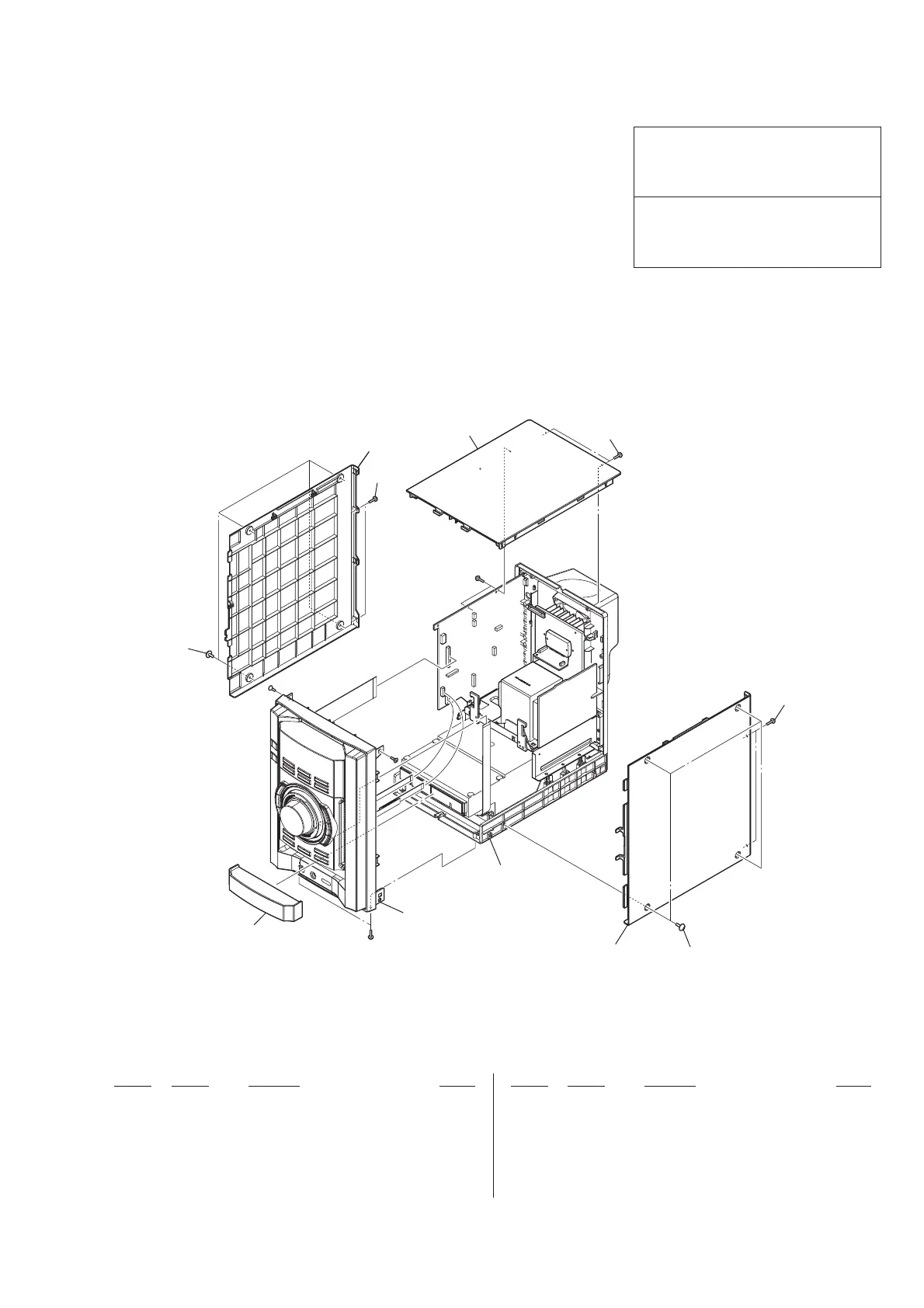

7-1. PANEL SECTION
1
2
4
2
3
#1
#1
#5
#5
chassis section
front panel section
5
6
6
6
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
Les composants identifi és par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifi é.
To Next Page
