HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
10

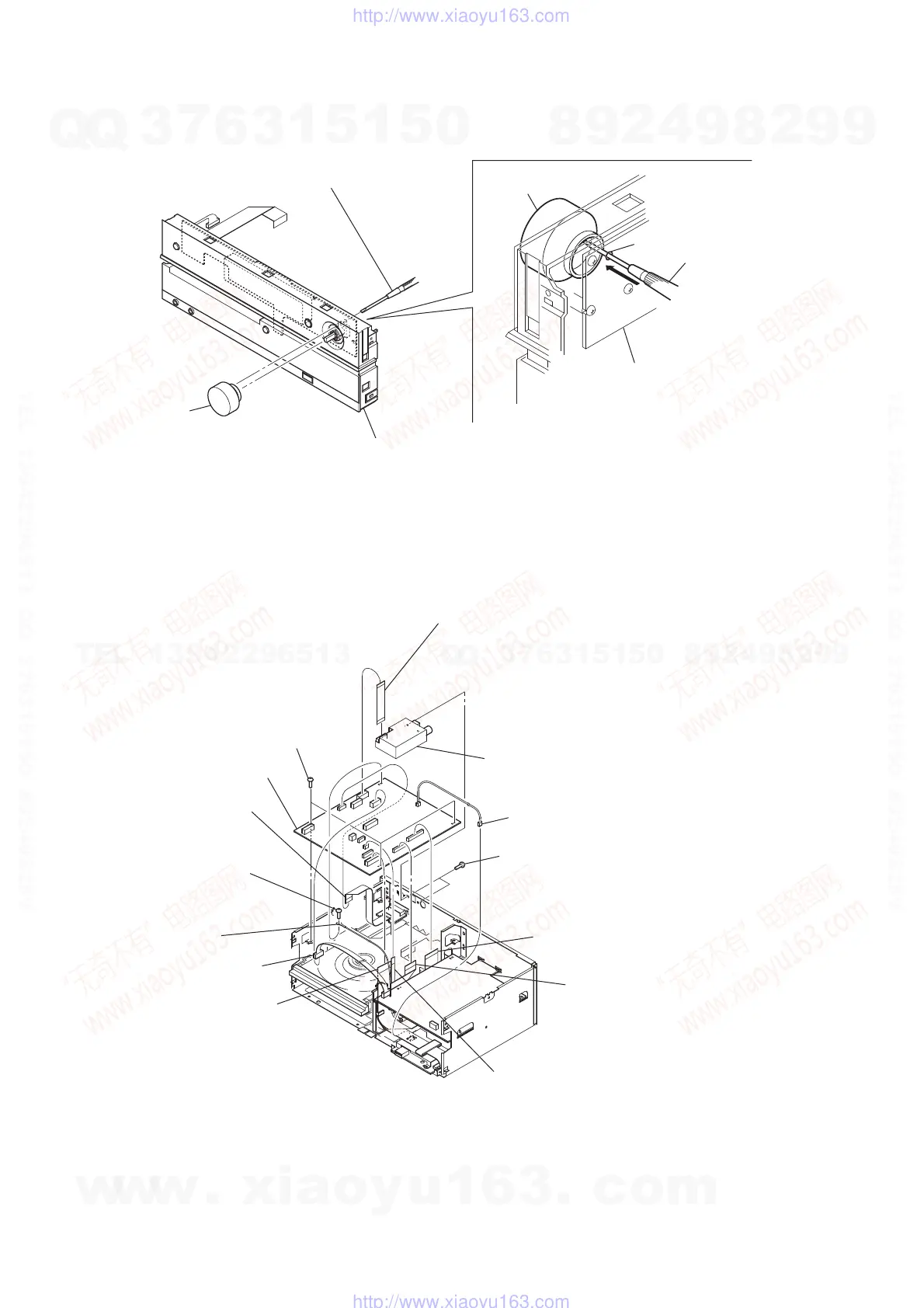

3-4. KNOB ASSY
3-5. MAIN BOARD
knob assy
screw driver
hole
knob assy
PANEL board back view
panel (front) block
Insert a screw driver into the position shown in the fig
and push it to remove the knob assy,
not giving an excessive force.
RB
three screws
(BVTP3
×
8)
RG
MAIN board
RT
screw
(BVTP3
×
8)
RE
earth wire
(HX80R/HX90BTR)
two screws
(BVTP3
×
8)
tuner (FM/AM)
flexible flat cable (9 core)
(HX50BTR: CND, RU, E51, MX, BR, SP, AR, KR models),
flexible flat cable (11 core)
(HX50BTR: AEP/HX70BTR/HX80R/HX90BTR)
(tuner (FM/AM), MAIN board (CN518))
flexible flat cable (11 core)
(CN502)
flexible flat cable (19 core)
(CN510)
flexible flat cable (5 core)
(CN720)
flexible flat cable (21 core)
(CN751)
flexible flat cable (27 core)
(CN701)
connector
(CN504)
R
connector
(CN908)
• Abbreviation
AR : Argentina model
BR : Brazilian model
CND : Canadian model
E51 : Chilean and Peruvian model
KR : Korean model
MX : Mexican model
RU : Russian model
SP : Singapore model
Ver. 1.1
