HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
201 A-1444-800-A USB BOARD, COMPLETE
202 3-077-331-21 +BV3 (3-CR)
203 1-457-413-11 CORE, FERRITE (HX50BTR: AEP, RU, SP, KR/
HX70BTR/HX80R/HX90BTR)
204 1-835-399-21 CABLE, FLEXIBLE FLAT (21 CORE)
205 1-400-932-11 FILTER, CLAMP
206 A-1243-637-A AMP BOARD, COMPLETE (HX50BTR/HX80R/
HX90BTR)
206 A-1486-589-A AMP BOARD, COMPLETE (HX70BTR)
207 1-835-396-21 CABLE, FLEXIBLE FLAT (19 CORE)
208 2-514-691-01 SHEET, RADIATION (HX70BTR)
208 2-597-972-91 SHEET, RADIATION (HX50BTR/HX80R/HX90BTR)
209 1-457-368-11 CORE, FERRITE
210 3-703-244-00 BUSHING (2104), CORD (EXCEPT HX50BTR: MX)
* 210 3-703-571-12 BUSHING (S) (4516), CORD (HX50BTR: MX)
0 211 1-769-079-41 CORD, POWER (HX50BTR: KR)
0 211 1-827-226-31 CORD, POWER (HX50BTR: MX)
0 211 1-832-227-11 CORD, POWER (HX50BTR: AR)
0 211 1-833-218-11 CORD, POWER (HX50BTR: BR)
0 211 1-834-965-11 CORD, POWER (HX50BTR: CND)
0 211 1-834-966-21 CORD, POWER (HX50BTR: AEP, RU, E51, SP/
HX70BTR/HX80R)
0 211 1-835-078-21 CORD, POWER (HX90BTR)
212 3-087-053-01 +BVTP2.6 (3CR)
213 3-701-748-00 CLAMP (HX50BTR: CND)
0 F1 1-576-232-51 FUSE (H.B.C) (5A/250V)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

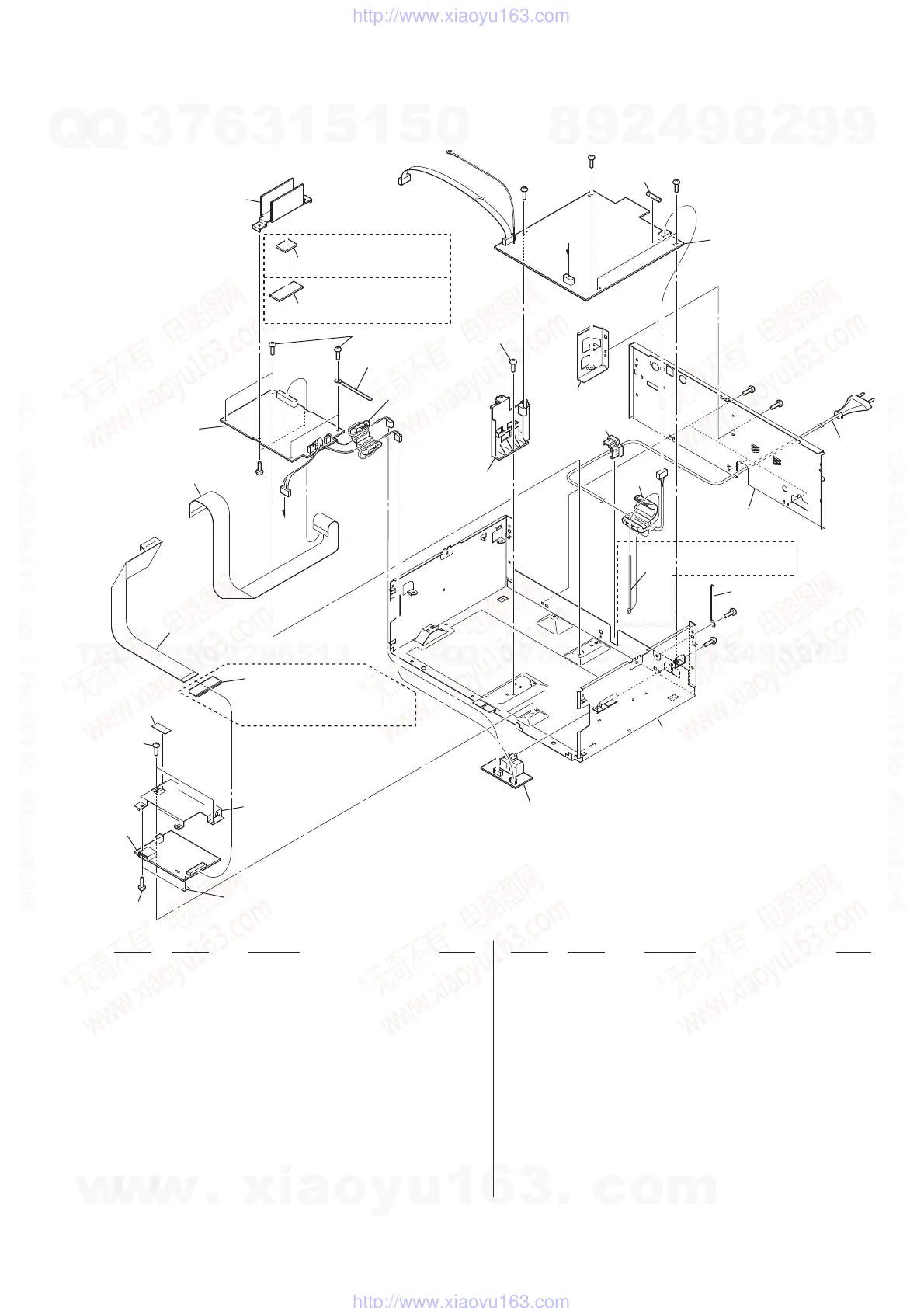

7-5. CHASSIS SECTION
(HX50BTR/HX80R/
HX90BTR)
(HX70BTR)
(HX50BTR: AEP, RU, SP, KR/
HX70BTR/HX80R/HX90BTR)
(HX50BTR: CND)
#1
#1
#1
#1
#1
#1
#1
#1
F1
201
212
202
202
202
203
204
205
206
207
208
208
209
213
210
211
not supplied
(SP TERMINAL board)
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
(SW POWER board)
not supplied
Ver. 1.1
