59
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
101 X-2190-798-1 KNOB ASSY
102 3-198-753-01 FOOT (FELT)
103 X-2190-792-1 PANEL (FRONT) ASSY (HX50BTR)
103 X-2190-793-1 PANEL (FRONT) ASSY (HX70BTR)
103 X-2190-794-1 PANEL (FRONT) ASSY (HX90BTR)
103 X-2190-795-1 PANEL (FRONT) ASSY (HX80R)
104 3-087-053-01 +BVTP2.6 (3CR)
105 X-2190-796-1 BUTTON (POWER) ASSY
106 3-284-487-01 BUTTON (EJECT) (Z)
107 X-2190-797-1 BUTTON (BT) ASSY (HX50BTR/HX70BTR/
HX90BTR)
108 3-284-506-01 SHEET (FL)
109 1-835-397-21 CABLE, FLEXIBLE FLAT (15 CORE)
110 1-835-400-21 CABLE, FLEXIBLE FLAT (15 CORE) (HX50BTR/
HX70BTR/HX90BTR)
111 1-964-881-11 CABLE, COAXIAL (WITH U.F.L CONNECTOR)
(HX50BTR/HX70BTR/HX90BTR)
112 A-1518-779-A BT BOARD, COMPLETE (HX50BTR/HX70BTR/
HX90BTR)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

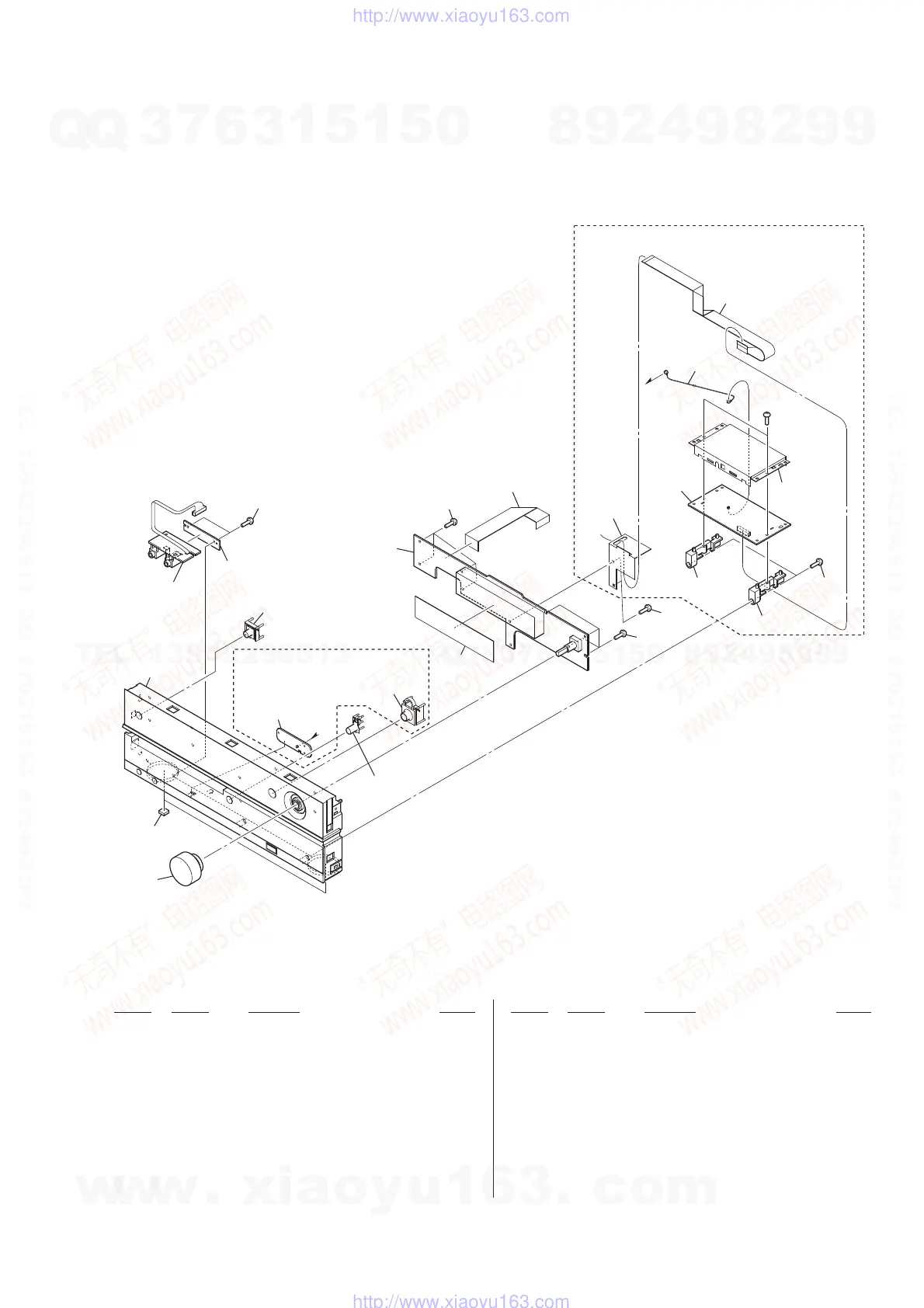

7-3. PANEL (FRONT) SECTION
(HX50BTR/HX70BTR/HX90BTR)
(HX50BTR/HX70BTR/HX90BTR)
#1
101
102
103
104
104
104
104
104
105
106
107
108
109
110
112
111
not supplied
(ANT board)
not supplied
(JACK board)
not supplied
(JACK SUPPORT board)
not supplied
(PANEL board)
not supplied
not supplied
not
supplied
not supplied
