HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
6
SECTION 2
GENERAL
This section is extracted
from instruction manual.

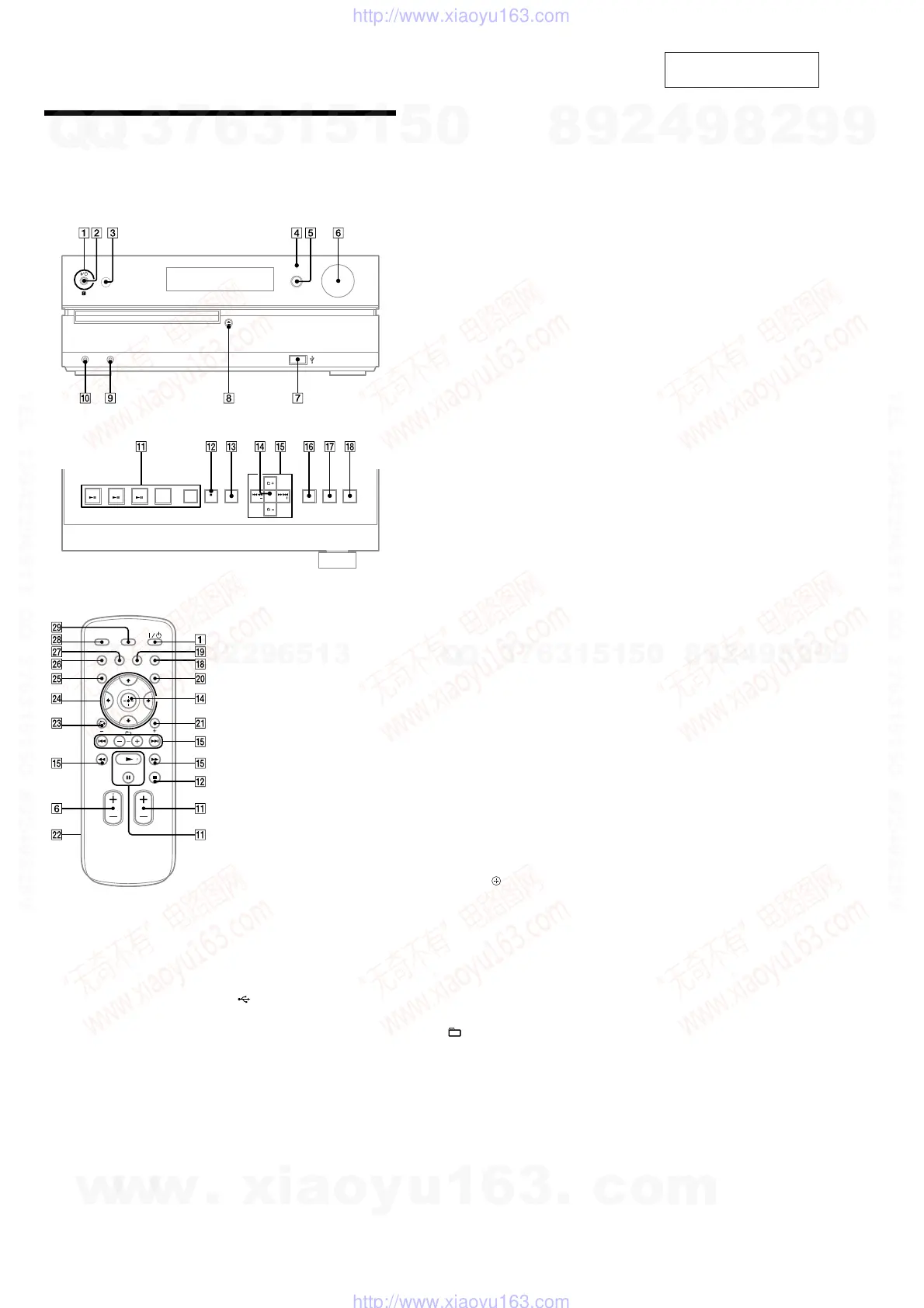

Guide to parts and controls
is manual mainly explains operations using the remote, but the same operations can
also be performed using the buttons on the unit having the same or similar names.
Unit
Front panel
Top panel
Remote (RM-AMU009)
/ (power) button
Press to turn on the system.
STANDBY indicator
Lights up when the system is turned o.
Remote sensor
BLUETOOTH indicator (HX50BTR/
HX70BTR/HX90BTR only)
Lights up when the Bluetooth function
is active.
BLUETOOTH button (HX50BTR/
HX70BTR/HX90BTR only)
Press to make a connection,
disconnection, or pairing with a
Bluetooth device.
Playback buttons and function
buttons
Unit: BLUETOOTH (play/
pause) button (HX50BTR/
HX70BTR/HX90BTR only)
Press to select the Bluetooth function.
Press to start or pause playback of the
music on the Bluetooth device (Bluetooth
mobile phone, etc.).
Unit: USB (play/pause)
button
Press to select the USB function.
Press to start or pause playback of an
optional USB device.
Unit: CD (play/pause)
button
Press to select the CD function.
Press to start or pause playback of a disc.
Remote: (play) button,
(pause) button
Press to start or pause playback.
Unit: TUNER/BAND button
Press to select the TUNER function.
Press to select FM or AM reception
mode.
Unit: DMPORT (play/pause)
button (HX80R only)
Press to select the DMPORT function.
Press to start or pause playback of the
audio device connected to the DIGITAL
MEDIA PORT adapter.
Unit: FUNCTION button
Remote: FUNCTION +/– button
Press to select the function.
Unit: /CANCEL (stop/cancel)
button
Remote: (stop) button
Press to stop playback.
Press to cancel search.
SEARCH button (HX50BTR/
HX70BTR)
Press to enter or exit search mode.
SEARCH/DAB AUTO SCAN button
(HX80R/HX90BTR)
Press to enter or exit search mode.
Press to run the DAB Automatic Scan.
Unit: ENTER button
Remote:
(enter) button
Press to enter the settings.
/ (go back/go forward)
button
Press to select a track or le.
Unit: TUNE +/– (tuning) button
Remote: +/– (tuning) button
Press to tune in the desired station.
+/– (select folder) button
Press to select a folder.
/ (rewind/fast forward)
button
Press to nd a point in a track or le.
CD-USB SYNC/REC1 button
Press to record from a disc onto the
connected optional USB device.
USB MENU button
Press to erase audio les and folders from
the connected optional USB device.
Press to select which memory to read
to if the USB device has more than one
memory.
Sound buttons
Unit: DSGX button
Remote: EQ button
Press to select the sound eect.
CLEAR button
Press to delete a pre-programmed track
or le.
Press to erase the pairing registration
information of the Bluetooth device.
TIMER MENU button
Press to set the clock and the Play Timer.
TOOL MENU button
Press to select a menu when using the
DIGITAL MEDIA PORT adapter.
Battery compartment lid
RETURN button
Press to return to the previous menu
when using the DIGITAL MEDIA PORT
adapter.
/// button
Press to select the menu items.
TUNER MEMORY button
Press to preset the radio station.
PLAY MODE/TUNING MODE
button
Press to select the play mode of a CD,
MP3 disc or an optional USB device.
Press to select the tuning mode.
XK
REPEAT/FM MODE button
Press to listen to a disc, a single track or
le repeatedly.
Press to select the FM reception mode
(monaural or stereo).
XL
SLEEP button
Press to set the Sleep Timer.
XM
DISPLAY button
Press to change the information on the
display.
Unit: VOLUME control
Remote: VOLUME +/– button
Turn or press to adjust the volume.
(USB) port
Connect to an optional USB device.
(open/close) button
Press to open or close the disc tray.
AUDIO IN jack
Connect to an optional audio
component.
PHONES jack
Connect the headphones.
