57
HCD-HX50BTR/HX70BTR/HX80R/HX90BTR
SECTION 7
EXPLODED VIEWS
1 3-284-477-01 PANEL (SIDE L)
2 3-198-753-11 FOOT (FELT)
3 3-284-478-01 PANEL (SIDE R)
4 3-087-053-01 +BVTP2.6 (3CR)
5 3-284-491-01 BUTTON (FUNCTION R) (CD-USB SYNC/REC1,
USB MENU, DSGX)
6 3-282-738-01 BUTTON (ENTER)
7 3-282-739-01 BUTTON (TUNE) ( +, M L TUNE +, –,
l m TUNE –)
8 3-284-490-01 BUTTON (FUNCTION L) (FUNCTION, x CANCEL,
SEARCH) (HX50BTR/HX70BTR)
8 3-284-490-11 BUTTON (FUNCTION L) (FUNCTION, x CANCEL,
SEARCH/DAB AUTO SCAN) (HX80R/HX90BTR)
9 3-284-489-01 BUTTON (PLAY) (BLUETOOTH u, USB u,
CD u, TUNER/BAND) (HX50BTR/HX70BTR/
HX90BTR)
9 3-284-489-11 BUTTON (PLAY) (DMPORT u, USB u,
CD u TUNE/BAND) (HX80R)
10 X-2190-799-1 PANEL (TOP) ASSY (HX50BTR: AEP/HX70BTR/
HX80R/HX90BTR)
10 X-2190-800-1 PANEL (TOP) ASSY (HX50BTR: CND, RU, E51,
MX, BR, SP, AR, KR)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice.
Some delay should be anticipated when
ordering these items.
• Accessories are given in the last of the
electrical parts list.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
R R
Parts Color Cabinet’s Color
• Abbreviation
AR : Argentina model
BR : Brazilian model
CND : Canadian model
E51 : Chilean and Peruvian model

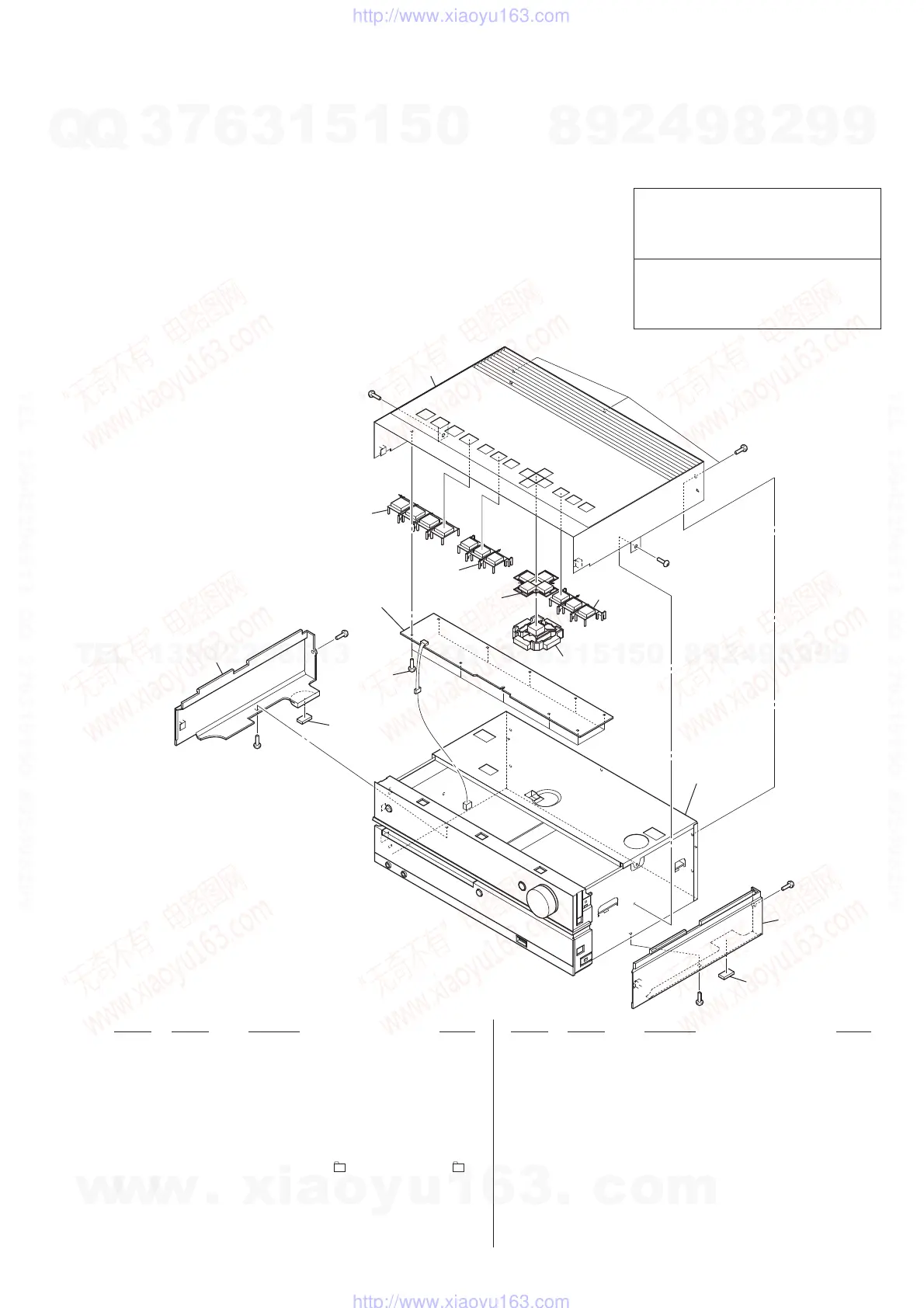

7-1. PANEL (TOP) SECTION
3
2
1
4
5
6
7
8
9
10
chassis (top)
section
not supplied
(TOP PANEL board)
#1
#1
#1
#1
#1
#1
#1
2
KR : Korean model
MX : Mexican model
RU : Russian model
SP : Singapore model
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
Les composants identifi és par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifi é.
Ver. 1.1
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
