HCD-FLX9W

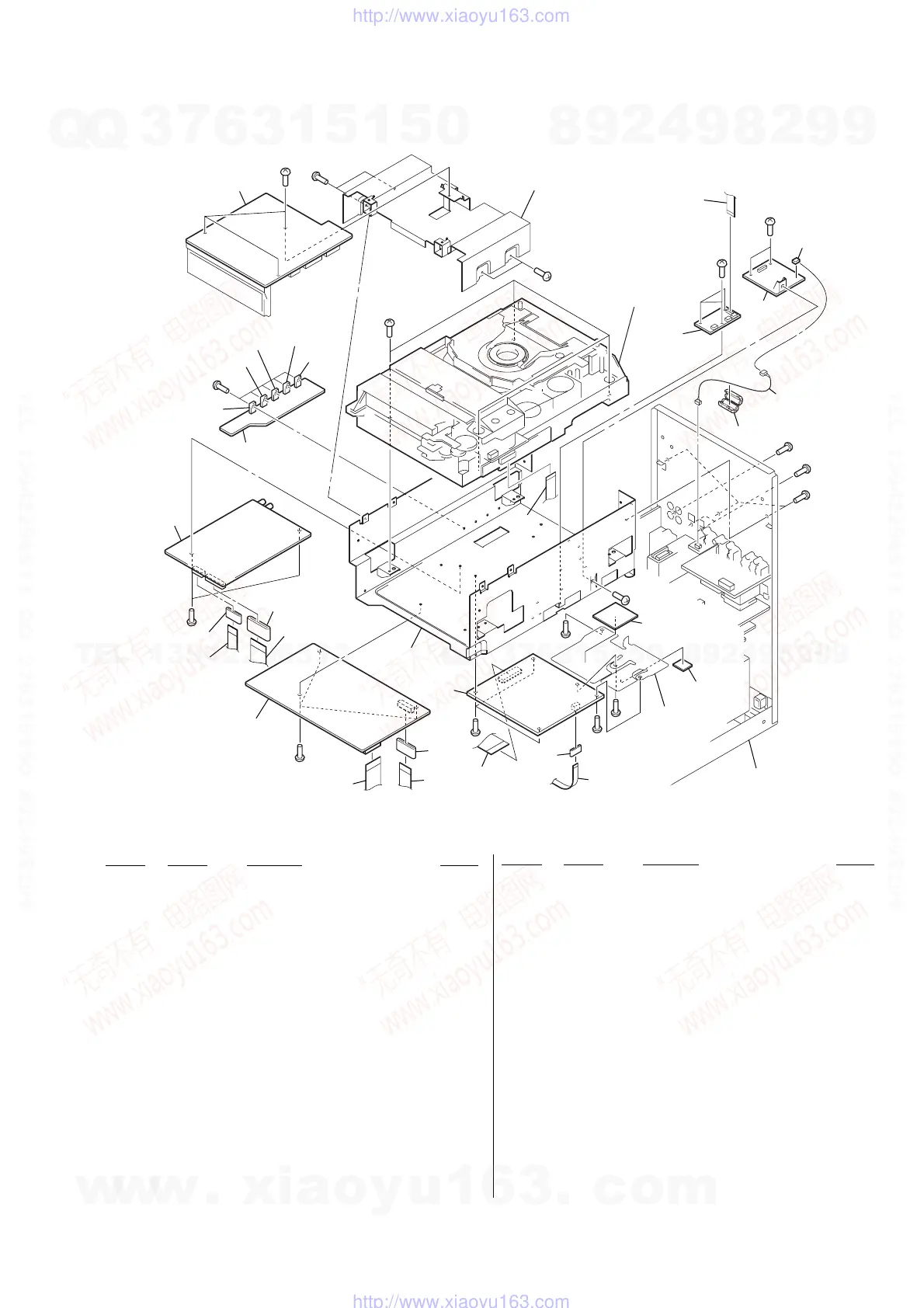

9-6. DSP/GC/ I/F /MC/MB/REGULATOR/TX BOARDS SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
301 1-782-252-11 WIRE (FLAT TYPE) (9 CORE)
302 1-824-686-11 WIRE (FLAT TYPE) (13 CORE)
303 1-773-123-11 WIRE (FLAT TYPE) (19 CORE)
304 A-4750-816-A GC BOARD, COMPLETE (EXCEPT TH)
304 A-4753-591-A GC BOARD, COMPLETE (TH)
305 A-1061-992-A MC BOARD, COMPLETE (EA)
305 A-1072-257-A MC BOARD, COMPLETE (E15)
305 A-1072-258-A MC BOARD, COMPLETE (SP)
305 A-1072-259-A MC BOARD, COMPLETE (TH)
306 A-1061-996-A DSP BOARD, COMPLETE (EA)
306 A-1072-445-A DSP BOARD, COMPLETE (TH)
306 A-1077-535-A DSP BOARD, COMPLETE (E15, SP)
307 1-684-271-11 REGULATOR BOARD
308 1-773-049-11 WIRE (FLAT TYPE) (17 CORE)
309 A-1071-896-A MB BOARD, COMPLETE (EXCEPT TH)
309 A-1072-459-A MB BOARD, COMPLETE (TH)
310 1-824-652-11 WIRE (FLAT TYPE) (29 CORE)
311 1-773-105-11 WIRE (FLAT TYPE) (19 CORE)
312 1-769-937-11 WIRE (FLAT TYPE) (11 CORE)
313 1-769-973-11 WIRE (FLAT TYPE) (13 CORE)
314 A-1072-457-A TX BOARD, COMPLETE (TH)
314 A-4753-411-A TX BOARD, COMPLETE (EXCEPT TH)
315 A-1062-002-A I/F BOARD, COMPLETE (EXCEPT TH)
315 A-1072-452-A I/F BOARD, COMPLETE (TH)
316 1-469-829-11 CORE, FERRITE (EA)
317 1-400-640-11 CORE, FERRITE (EA)
318 1-469-854-11 CORE, FERRITE (EA)
319 1-400-092-11 CORE, FERRITE (EA)
320 1-543-793-11 FILTER, CLAMP (FERRITE CORE) (EA, TH)
* CN7002 1-564-517-11 PLUG, CONNECTOR 2P
IC801 6-703-546-01 IC TA7804LS
IC802 8-759-231-53 IC TA7805S
IC803 8-759-231-57 IC TA7810S
IC804 8-759-231-53 IC TA7805S
Q864 8-729-209-60 TRANSISTOR 2SB1375
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
