Block
Function
61
61
62
62
62
62
62
62
62
Detailed
Code
10
11
00
01
02
03
10
11
12
Symptom/State
Zoom operations fault
(Cannot initialize zoom lens.)
Focus lens initializing failure and zoom
lens initializing failure occur simulta-
neously.
Steadyshot function does not work well.
(With pitch angular velocity sensor output
stopped.)
Steadyshot function does not work well.
(With yaw angular velocity sensor output
stopped.)
Abnormality of IC for steadyshot.
IC for steadyshot and micro controller
communication abnormality among.
Shift lens initializing failure
Shift lens overheating (Pitch)
Shift lens overheating (Yaw)
Self-diagnosis Code
Repaired by:
Correction
Inspect the zoom MR sensor of lens block (Pin ed, eg of CN5802
on the YY-003 board) when zooming is performed when the zoom
switch is operated and the zoom motor drive circuit (IC6004 on
the YY-003 board) when zooming is not performed.
Check both C: 32: 60 and E: 61: 10 of the self-diagnosis code.
Inspect pitch angular velocity sensor (SE8001 on the JJ-004
board) peripheral circuits.
Inspect yaw angular velocity sensor (SE8002 on the JJ-004
board) peripheral circuits.
Refer to [1-6-1. E : 62 : 02 (Abnormality of IC for Steadyshot)
Occurred].
Inspect the steadyshot circuit (IC6203 on the YY-003 board).
Refer to [1-6-2. E : 62 : 10 (Shift Lens Initializing Failure)
Occurred].
Refer to [1-6-3. E : 62 : 11 (Shift Lens Overheating (Pitch))
Occurred].
Refer to [1-6-4. E : 62 : 12 (Shift Lens Overheating (Yaw))
Occurred].

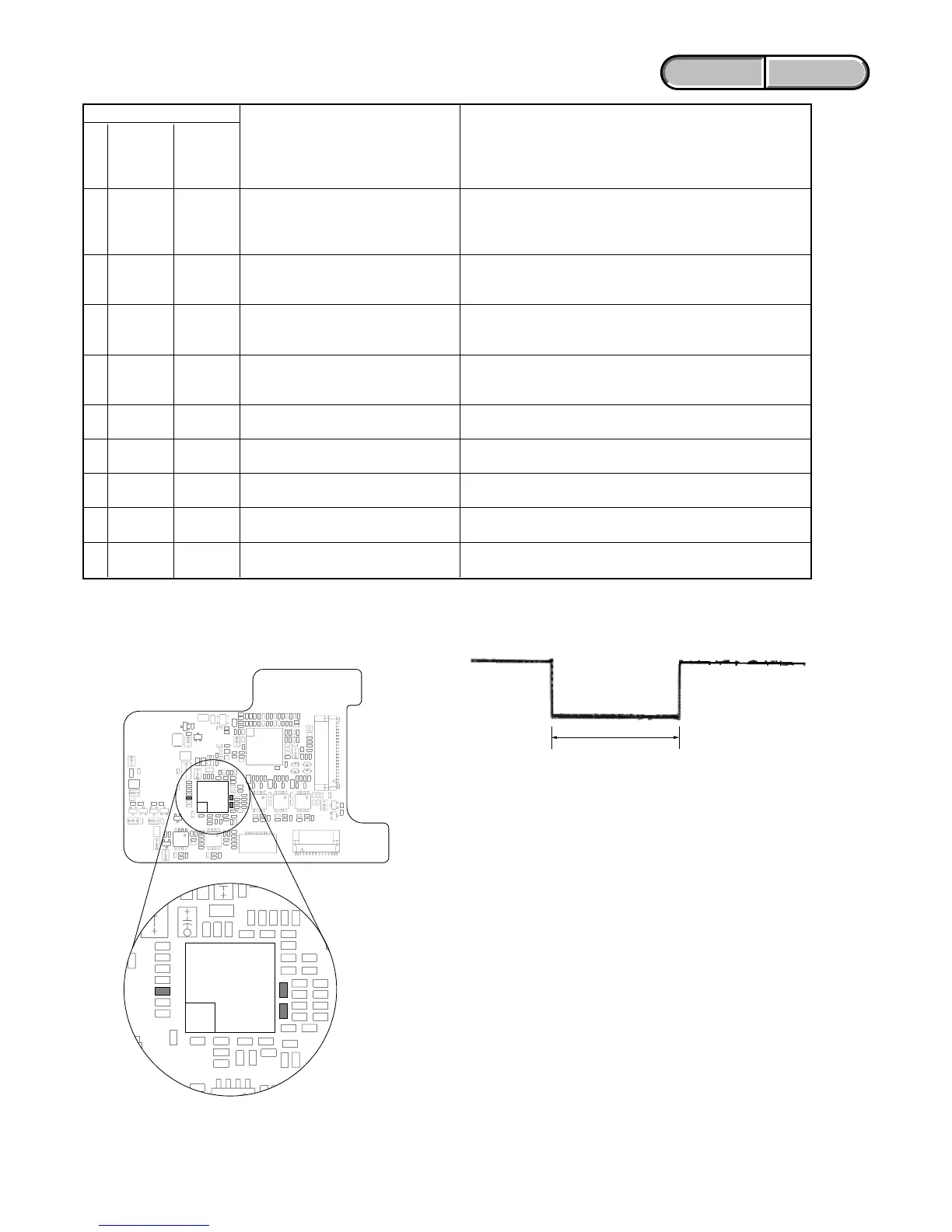

1-6. METHOD OF COPING WITH SHIFT LENS ERROR
about 330 msec
Fig. 1
Measurement points on the YY-003 board
IC6203
R6233
R6242
R6244
YY-003 BOARD (SIDE A)
Fig. 2
Change in output voltage of R6233
Note: The length of low section will vary a little depending on the
conditions.
