Sony HDR-FX7 User Manual

1-2
ENGLISH JAPANESE
ENGLISH JAPANESE
HDR-FX7/FX7E_L2
1-5. SELF-DIAGNOSIS FUNCTION
1-5-1. Self-diagnosis Function
When problems occur while the unit is operating, the self-diagnosis
function starts working, and displays on the viewfinder or LCD
screen what to do.
Details of the self-diagnosis functions are provided in the Instruction
manual.
1-5-2. Self-diagnosis Display
When problems occur while the unit is operating, the counter of the
viewfinder or LCD screen shows a 4-digit display consisting of an
alphabet and numbers, which blinks at 3.2 Hz. This 5-character
display indicates the “repaired by:”, “block” in which the problem
occurred, and “detailed code” of the problem.
1 1
3 1C
Repaired by:
Refer to “1-5-3. Self-diagnosis Code Table”.
Indicates the appropriate
step to be taken.
E.g.
31 ....Reload the tape.
32 ....Turn on power again.
Block
Detailed Code
Blinks at 3.2Hz
C : Corrected by customer
H : Corrected by dealer
E : Corrected by service
engineer
Viewfinder or LCD screen
C : 3 1 : 1 1

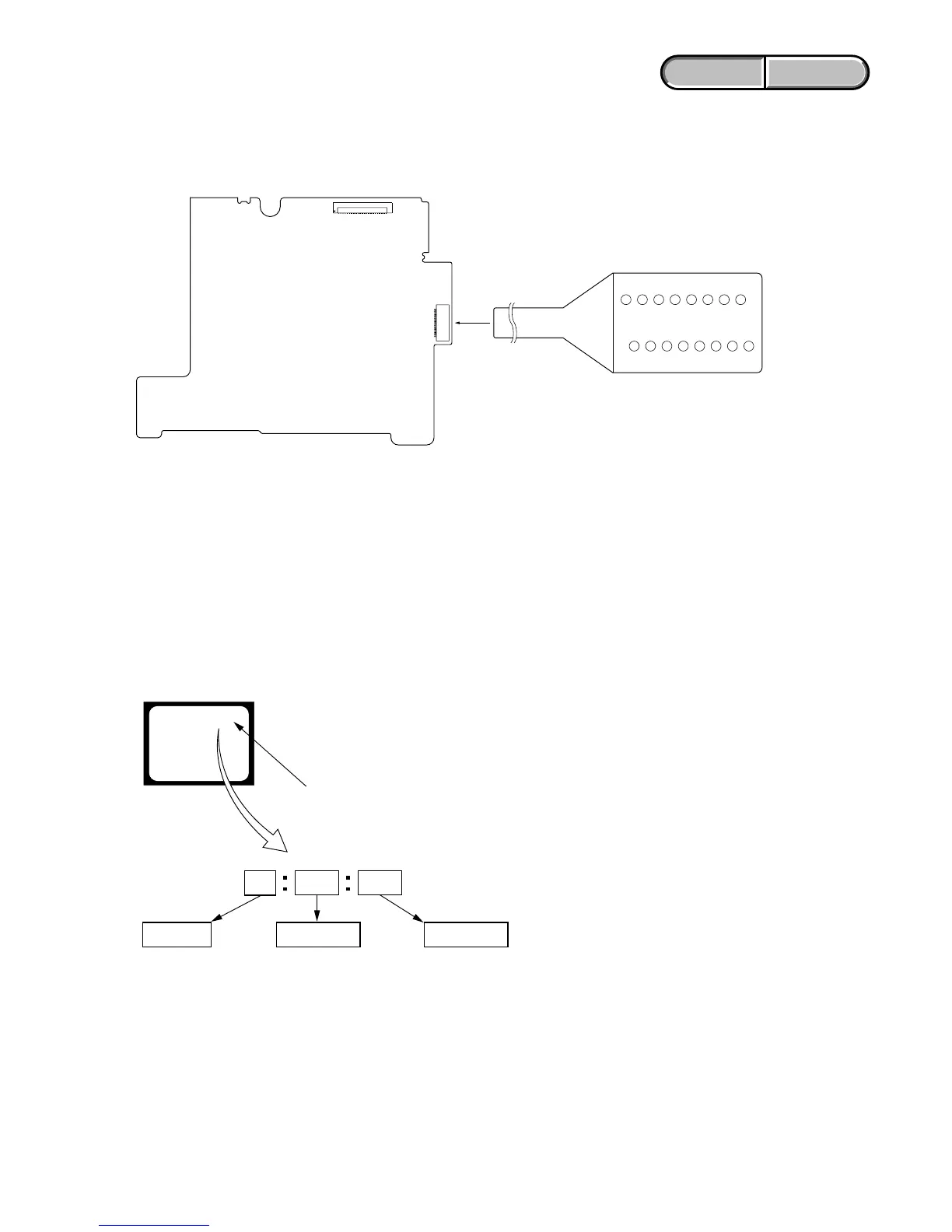

1-4. USING SERVICE JIG
Connect the CPC-7 jig connector (J-6082-382-A) to the CN1014 on the TT-003 board.
TT-003 BOARD
(SIDE B)
CN1014
1
1
16
16
8
9
CPC-7
(J-6082-382-A)

Sony HDR-FX7 Specifications

General

Built-in display	Yes
Display diagonal	3.5 \
Display resolution (numeric)	211000 pixels
Filter size	62 mm
Digital zoom	- x
Optical zoom	20 x
Focal length range	3.9 - 78 mm
Interchangeable lens	-
Maximum aperture number	2.8
Minimum aperture number	1.6
Focal length (35mm film equivalent)	37.4 - 748 mm
Maximum focal length (35mm film equiv)	748 mm
Minimum focal length (35mm film equiv)	37.4 mm
Sensor type	CMOS
Total megapixels	1.07 MP
Optical sensor size	1/4 \
Camcorder tape type	HDV
Camcorder media type	Videotape
Compatible memory cards	MS PRO
Internal storage capacity	- GB
S-Video in	No
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Focus adjustment	Auto/Manual
Camera shutter speed	1/3 - 1/10000 s
Camcorder type	Shoulder camcorder
Minimum illumination	4 lx
Supported aspect ratios	4:3, 16:9
Product color	Black
Maximum video resolution	1920 x 1080 pixels
Image formats supported	JPG
Maximum image resolution	1440 x 810 pixels
Audio system	stereo
Battery capacity	- mAh
Battery life (max)	8 h
Cables included	AV, USB
Aperture range (F-F)	1.6 - 2.8

Weight and Dimensions

Depth	322 mm
Width	145 mm
Height	156 mm
Weight	1400 g
