Sony HXR-NX3 User Manual

2-14
HXR-NX3
601 A-1990-467-A MICROPHONE BLOCK ASSY
602 1-846-792-11 FLEXIBLE FLAT CABLE (FFC-1047)
603 A-1994-362-A VL-1001 BOARD, COMPLETE
604 3-076-631-01 NON WOVEN (T0.25) (Note)
605 A-1994-364-A MA-1008 BOARD, COMPLETE
606 1-876-946-11 FP-975 FLEXIBLE BOARD
607 1-848-048-11 FLEXIBLE FLAT CABLE (FFC-1059)
608 A-1994-363-A SW-1011 BOARD, COMPLETE
609 4-488-855-01 SHEET, VL RADIATION
Ref. No. Part No. Description
Ref. No. Part No. Description
MIC901 1-542-513-21 MICROPHONE
MIC902 1-542-513-21 MICROPHONE
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2
#50 2-891-494-11 SCREW (M2), NEW TRUSTER, P2
#53 3-080-206-21 SCREW, TAPPING, P2

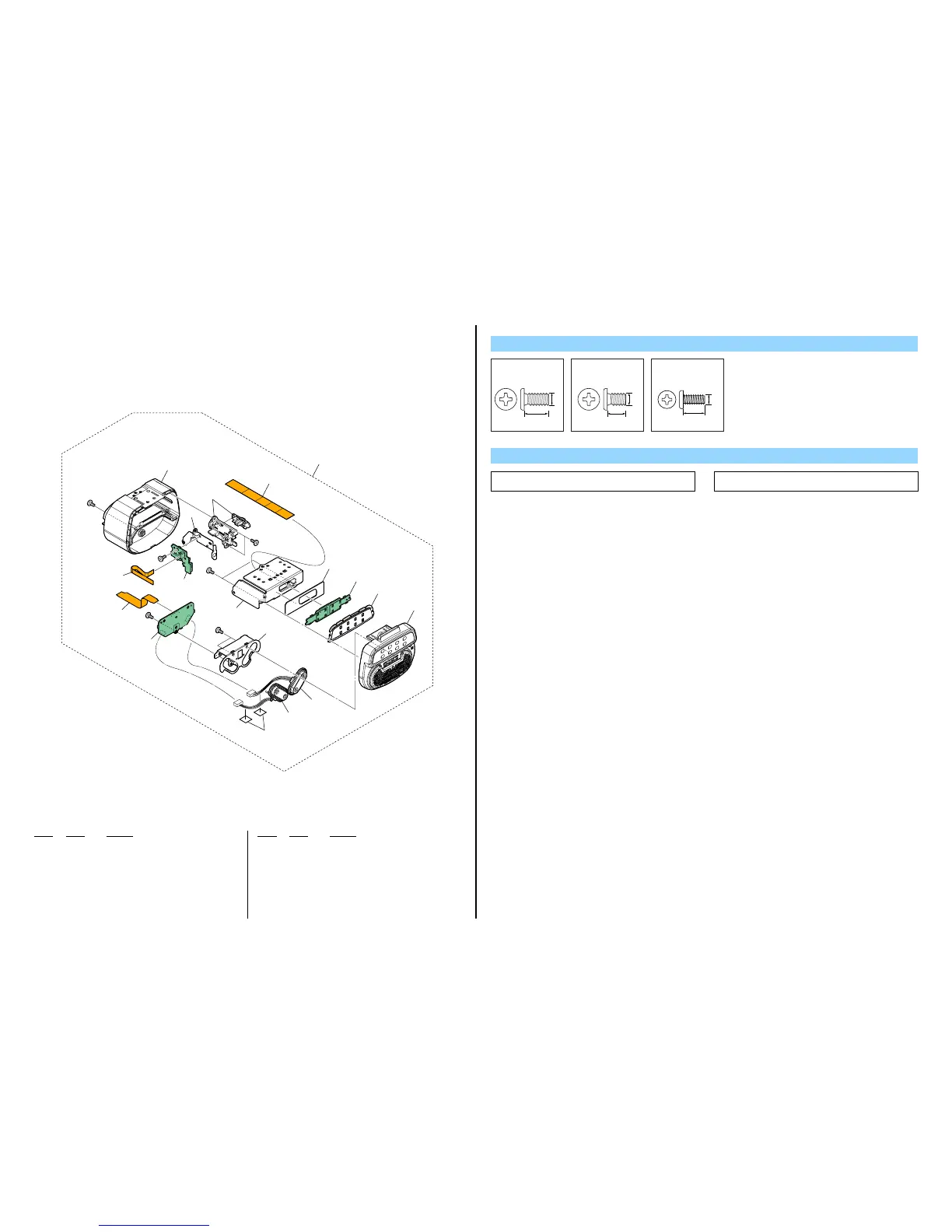

2-1-12. MICROPHONE SECTION
ns: not supplied
Screw
#49: M2.0 X 4.0
(Black)
2-630-005-31
4.0
2.0
#50: M2.0 X 3.0
(Red)
2-891-494-11
3.0
2.0
#53: M2.0 X 5.0 (Tapping)
(Black)
3-080-206-21
5.0
2.0
Note
Note: Cut the NON WOVEN (T0.25) (Ref.No.604) for specified
size and use it.
Note:
 NONWOVEN(T0.25)(図面番号604)は,指定の寸法にカット
して使用してください。
#53
#53
#50
#49
ns
ns
ns
ns
ns
ns
ns
MIC901
MIC902
(Note)
(11 x 11 mm)
#53
601
602
603
609
604
605
606
607
608
