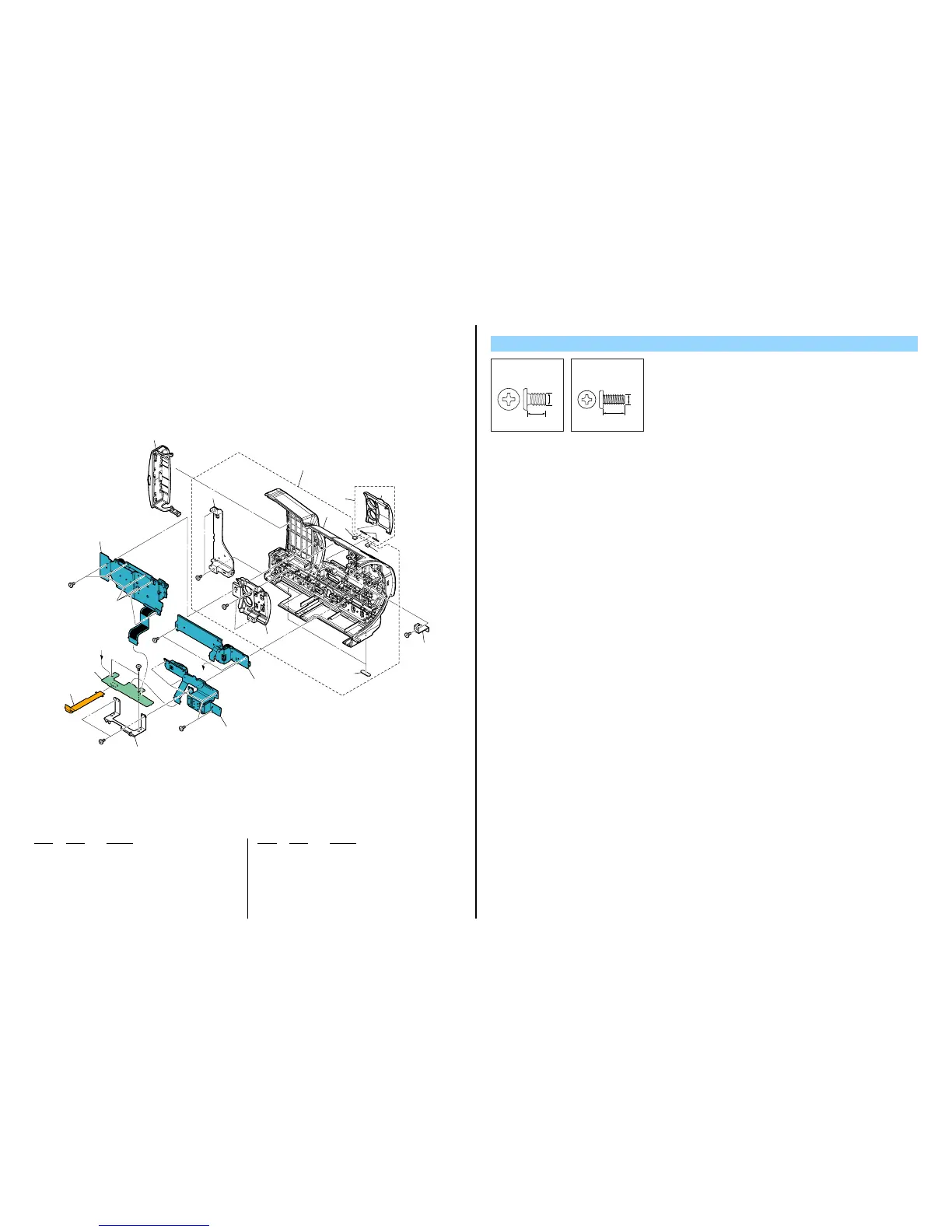

2-1-5. CABINET (R) SECTION
ns: not supplied
Ref. No. Part No. Description
Ref. No. Part No. Description
251 1-879-858-11 FP-1159 FLEXIBLE BOARD
252 A-1994-367-A CK-1008 BOARD, COMPLETE
* 253 4-165-333-01 SHEET METAL, CK
254 1-487-451-11 SWITCH BLOCK, CONTROL (CF94000)
255 1-487-449-11 SWITCH BLOCK, CONTROL(KP94000)
256 1-487-450-11 SWITCH BLOCK, CONTROL (AU94000)
257 X-2588-888-2 CABINET (R (93600)) ASSY
258 X-2589-143-1 LID SUB ASSY (93600), AL
259 X-2589-142-1 LID SUB ASSY (93600), MS
* 260 4-165-325-01 SHEET, RUBBER
261 4-165-229-01 FOOT, RUBBER
* 262 4-119-383-01 PLATE, CABINET (R) FIXED
#50 2-891-494-11 SCREW (M2), NEW TRUSTER, P2
#53 3-080-206-21 SCREW, TAPPING, P2
Screw
#50: M2.0 X 3.0
(Red)
2-891-494-11
3.0
2.0
#53: M2.0 X 5.0 (Tapping)
(Black)
3-080-206-21
5.0
2.0
A
A
ns
ns
ns
ns
#53
#53
#53
#53
ns
#53
#53
#53
#50
257
258
260
260
251
252
256
259
261
262
255
254
253
