2-16
HXR-NX3
* 701 4-488-856-01 CLAMP, DC CABLE
702 X-2588-895-1 PANEL (93600) ASSY, BT
703 X-2588-896-1 HOLDER ASSY, BT
704 4-165-226-01 SHEET, MS LIGHT INTERCEPTION
705 A-1994-369-A MS-1019 BOARD, COMPLETE
706 1-889-007-11 FP-2173 FLEXIBLE BOARD
* 707 4-165-378-01 HOLDER, DC
709 A-2015-618-A CP-1002 BOARD, COMPLETE (SERVICE)
710 1-879-883-11 FP-1162 FLEXIBLE BOARD
711 A-1994-370-A JK-1008 BOARD, COMPLETE
Ref. No. Part No. Description
Ref. No. Part No. Description
712 1-837-240-11 FLEXIBLE FLAT CABLE (FFC-194)
713 A-1752-133-A FP-1149 FLEXIBLE BOARD, COMPLETE
714 4-527-211-01 SHEET (FP2173), COUNTERMEASURE (Note)
715 4-531-811-01 SPACER (FP2173), COUNTERMEASURE (Note)
BT901 1-694-411-31 TERMINAL BOARD, BATTERY
J901 1-785-247-31 CONNECTOR, DC-IN
#2 2-635-562-31 SCREW (M1.7)
#34 3-077-331-41 +BV3 (3-CR)
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2
#50 2-891-494-11 SCREW (M2), NEW TRUSTER, P2
#53 3-080-206-21 SCREW, TAPPING, P2
#273 2-342-356-21 SCREW (M2 (ECO, EG))

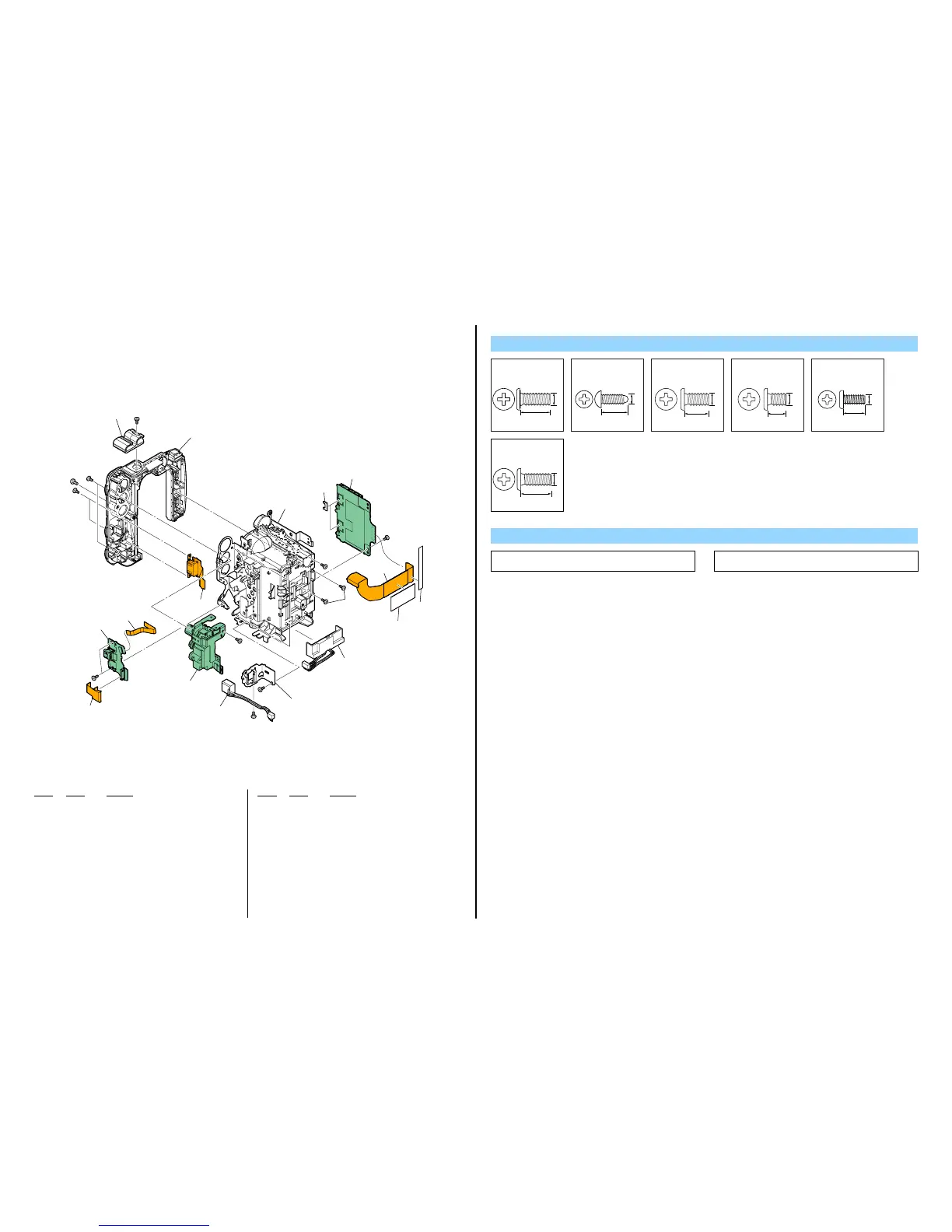

2-1-14. BT PANEL SECTION
ns: not supplied
Screw
#2: M1.7 X 4.0
(Black)
2-635-562-31
4.0
1.7
#34: M3.0 X 8.0
(Black)
3-077-331-41
8.0
3.0
#49: M2.0 X 4.0
(Black)
2-630-005-31
4.0
2.0
Note
Note: Do not reuse these Parts because their adhesive force
decreases when they are removed once.
Note:
これらの部品は一度剥がすと粘着力が弱くなるため、再利
用はしないでください。
#53
#53
#53
#53
#49
J901
#49
#50
#2
#49
#34
#273
705
701
702
703
704
706
709
707
713
714
715
710
711
712
BT901
(Note)
(Note)
#53: M2.0 X 5.0 (Tapping)
(Black)
3-080-206-21
5.0
2.0
#273: M2.0 X 6.0
(Black)
2-342-356-21
6.0
2.0
#50: M2.0 X 3.0
(Red)
2-891-494-11
3.0
2.0
To Next Page
