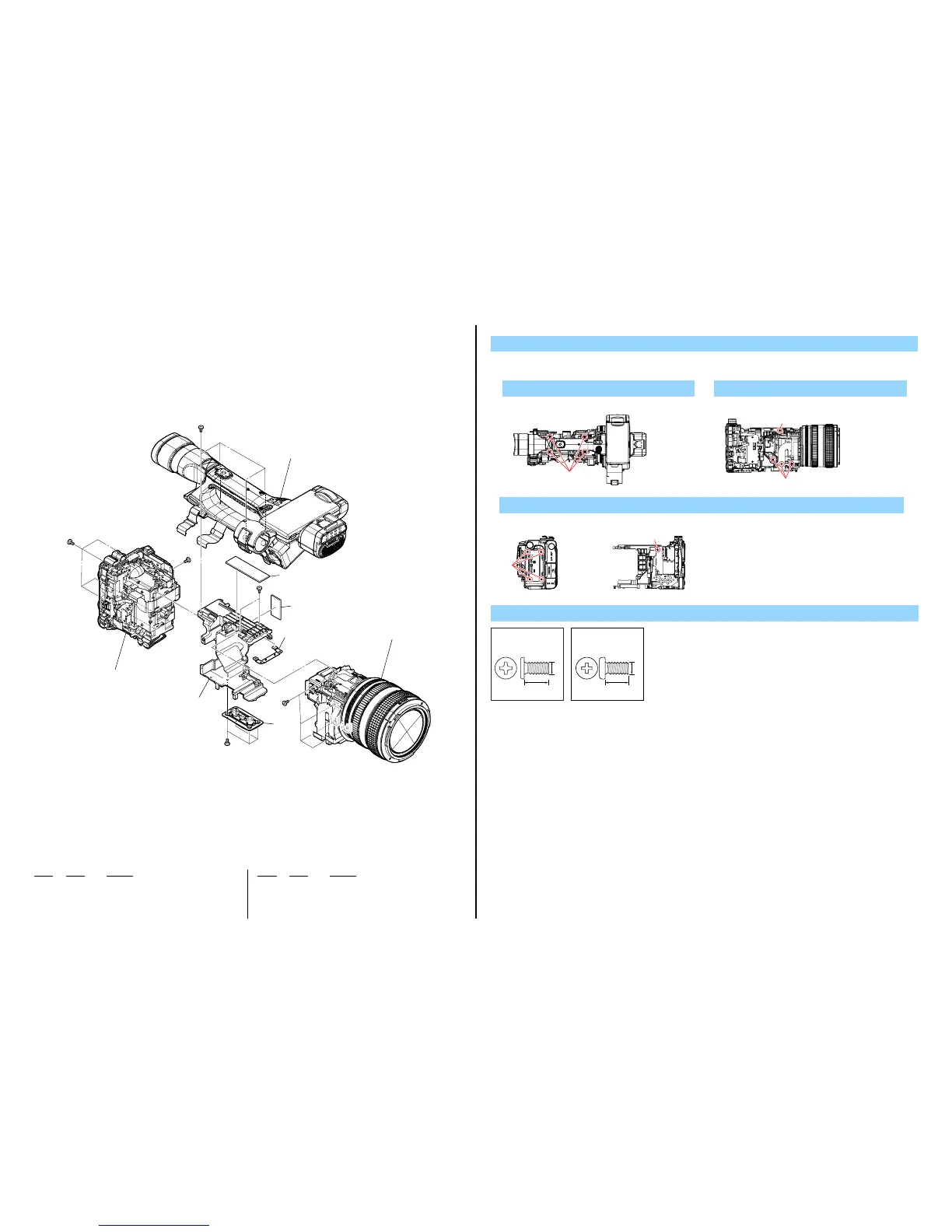

2-1-3. CHASSIS SECTION
Ref. No. Part No. Description
Ref. No. Part No. Description
101 4-119-234-11 WASHER, TRIPOD
* 102 4-165-251-01 CHASSIS, MAIN
103 4-119-237-01 PLATE (F), MC FIXED
* 104 4-165-225-01 SHEET (3218T1), RADIATION
105 4-165-224-01 SHEET (6018T1), RADIATION
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2
#119 7-627-556-58 SCREW +P 2.6X5
Screw
#49: M2.0 X 4.0
(Black)
2-630-005-31
4.0
2.0
#119: M2.6 X 5.0
(Black)
7-627-556-58
5.0
2.6
1
Handle Section-1
(See page 2-8)
2
Lens Section
(See page 2-15)
3
4
BT Panel Section
(See page 2-16)
#119
#49
#49
#49
#119
#119
105
104
103
101
102
1. Remove in numerical order (1 to 4) in the left figure.
DISASSEMBLY
1 #119 X 4
#119
Top View
3 #49 X 5
Back View
#49
Right View
#49
2 #119 X 4
Left View
#119
#119
