Sony HXR-NX3 User Manual

2-8
HXR-NX3
301 X-2342-570-1 HOLDER (93000) ASSY,MICROPHONE
302 3-284-080-01 RUBBER, MICROPHONE
303 3-284-081-11 SHEET, RUBBER ADHESIVE
304 3-284-621-11 CUSHION, MICROPHONE HOLDER
305 3-284-075-02 COVER, MICROPHONE HOLDER RUBBER
306 4-119-861-01 RUBBER (93000), HOLDER
307 X-2588-893-1 COVER (93600) ASSY, (REAR)
Ref. No. Part No. Description
Ref. No. Part No. Description
308 X-2588-892-1 CABINET (93600) ASSY, (UPPER)
309 3-288-538-11 SHOE, REAR (COLD)
310 1-480-298-11 SWITCH BLOCK, CONTROL (GZ92000)
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2
#53 3-080-206-21 SCREW, TAPPING, P2
#119 7-627-556-58 SCREW +P 2.6X5
#304 2-342-356-01 SCREW (M2 (ECO, EG))
Screw
#49: M2.0 X 4.0
(Black)
2-630-005-31
4.0
2.0
#53: M2.0 X 5.0 (Tapping)
(Black)
3-080-206-21
5.0
2.0
#304: M2.0 X 4.0
(Black)
2-342-356-01
4.0
2.0
#119: M2.6 X 5.0
(Black)
7-627-556-58
5.0
2.6

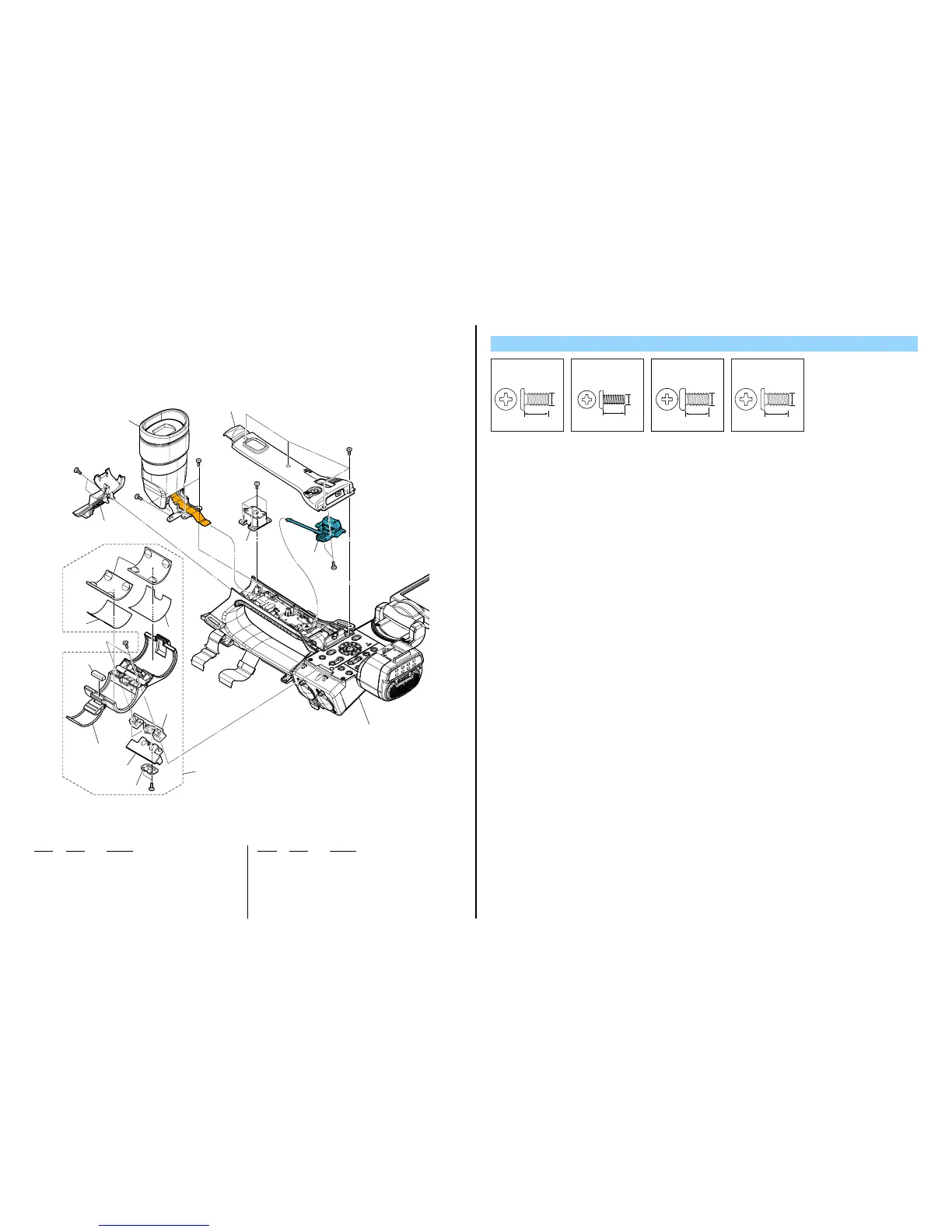

2-1-6. HANDLE SECTION-1
ns: not supplied
Handle section-2
(See page 2-9)
#53
#119
#304
#49
#304
#49
301
302
303
305
306
303
EVF section
(See page 2-12)
ns
ns
308
307
304
310
309
#49
#49
