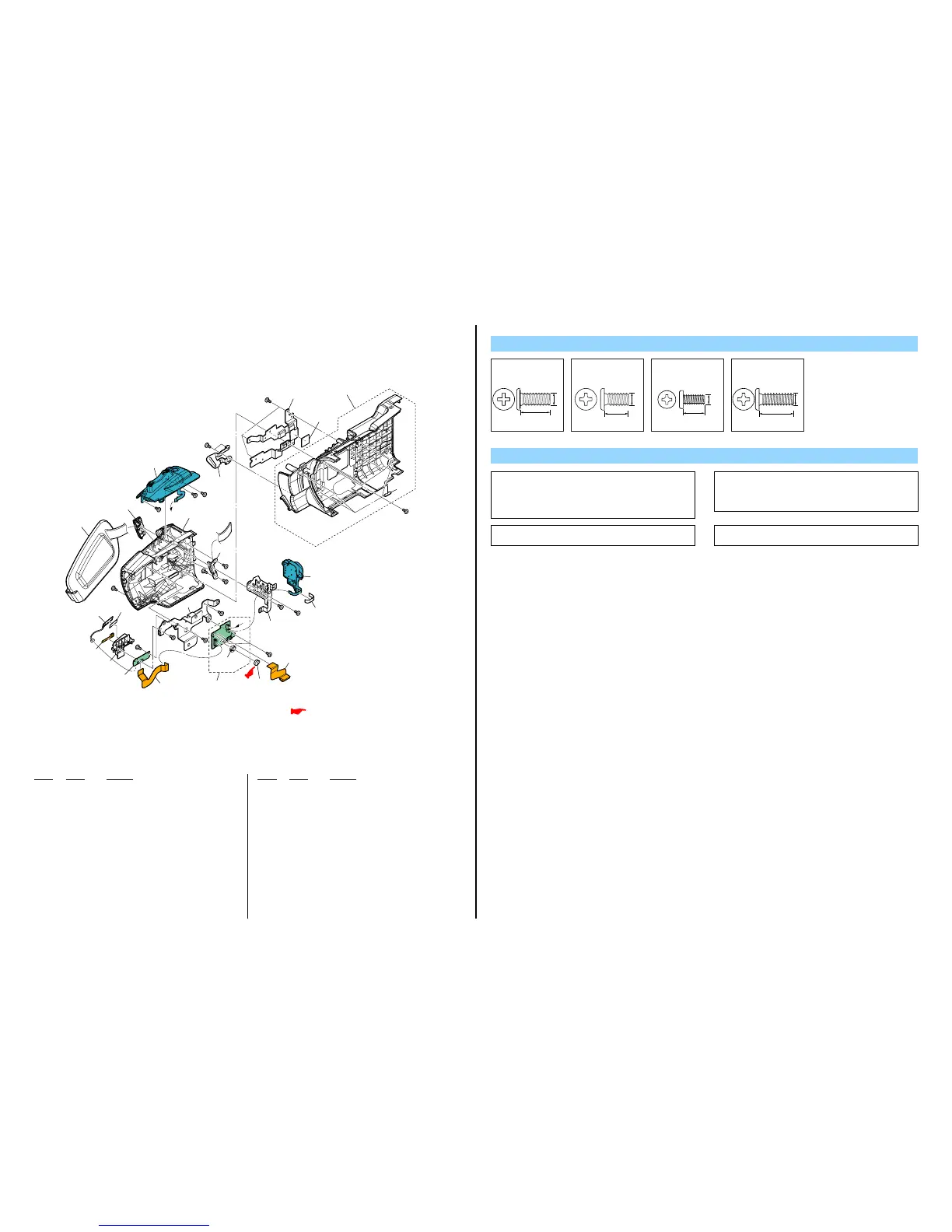

2-1-4. CABINET (L) SECTION
Ref. No. Part No. Description
Ref. No. Part No. Description
151 X-2588-889-1 CABINET (L (93600)) ASSY
* 152 4-488-859-01 HEAT SINK, L
* 153 4-165-326-01 FRAME, PS
154 1-487-447-11 SWITCH BLOCK, CONTROL (PS94000)
* 155 4-165-331-01 BRACKET (REAR), GRIP BELT
156 4-527-209-01 SHEET (L), RADIATION
* 157 4-165-327-01 BRACKET (FRONT), GRIP BELT
* 158 4-165-330-01 HOLDER, GRIP BELT
159 1-487-448-41 SWITCH BLOCK, CONTROL (PZ94000)
160 X-2588-890-1 CABINET G (93600) ASSY
161 2-178-804-01 BELT, GRIP
* 162 4-488-860-01 HEAT SINK, G
* 163 4-488-861-01 HOLDER, WF
164 A-1994-366-A GC-1003 BOARD, COMPLETE
165 A-1998-093-A WF-1004 BOARD, COMPLETE
166 1-889-609-11 FP-2217 FLEXIBLE BOARD
167 1-889-610-11 FP-2218 FLEXIBLE BOARD
168 4-488-862-01 SHEET, PS PROTECTION (Note 2)
169 4-489-010-01 SHEET (ANT), ADHESIVE
170 1-889-592-11 AN-1006 FLEXIBLE BOARD
171 A-2040-499-A NFC BLOCK ASSY
172 2-178-805-01 FOOT, RUBBER
 BT2001 1-756-134-15 BATTERY, LITHIUM (SECONDARY) (Note 1)
 BH2001 1-251-928-21 SOCKET, BATTERY (Note 1)
#2 2-635-562-31 SCREW (M1.7)
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2
#53 3-080-206-21 SCREW, TAPPING, P2
#155 3-080-204-31 SCREW, TAPPING, P2
Screw
#2: M1.7 X 4.0
(Black)
2-635-562-31
4.0
1.7
#49: M2.0 X 4.0
(Black)
2-630-005-31
4.0
2.0
1.7
6.0
#155: M1.7 X 6.0 (Tapping)
(Black)
3-080-204-31
#53: M2.0 X 5.0 (Tapping)
(Black)
3-080-206-21
5.0
2.0
Note
Note 1: Replace the battery holder (BH2001) together when replac-
ing the lithium storage battery (BT2001) on the GC-1003
board. (The battery holder removed once cannot be used
again.)
When mounting these parts, mount new battery holder first
and attach new lithium storage battery next.
Note 1:
 GC-1003基板のリチウム蓄電池(BT2001)を交換する場合は
バッテリホルダ(BH2001も同時に新品に交換して下さい。
（一度使用したバッテリホルダは再使用できません。）
 部品取り付けの際は，先にバッテリホルダを取り付けてか
らリチウム蓄電池を装着して下さい。
Note 2: Do not reuse these Parts because their adhesive force
decreases when they are removed once.
Note 2:
 これらの部品は一度剥がすと粘着力が弱くなるため、再利
用はしないでください。
: BT2001 (LITHIUM STORAGE BATTERY)
Board on the mount position.
(See page 6-45)
BT2001
(Note 1)
(Note 2)
BH2001
(Note 1)
151
152
156
172
157
159
158
161
160
155
154
153
168
166
164
167
165
163
162
170
169
171
#53
#53
#53
#53
#53
#53
#53
#53
#53
#53
#53
#2
#53
#53
#49
#49
#155
A
A
