Sony HXR-NX5C User Manual

HXR-NX5C/NX5E/NX5J/NX5M/NX5N/NX5P/NX5U
2-2
– ENGLISH – – JAPANESE –
NOTE FOR REPAIR
• Make sure that the flat cable and flexible board are not cracked
of bent at the terminal.
Do not insert the cable insufficiently nor crookedly.
• When remove a connector, don’t pull at wire of connector. It is
possible that a wire is snapped.
• When installing a connector, don’t press down at wire of con-
nector.
It is possible that a wire is snapped.
• Do not apply excessive load to the gilded flexible board.
修理時の注意
 

 

 


 


 


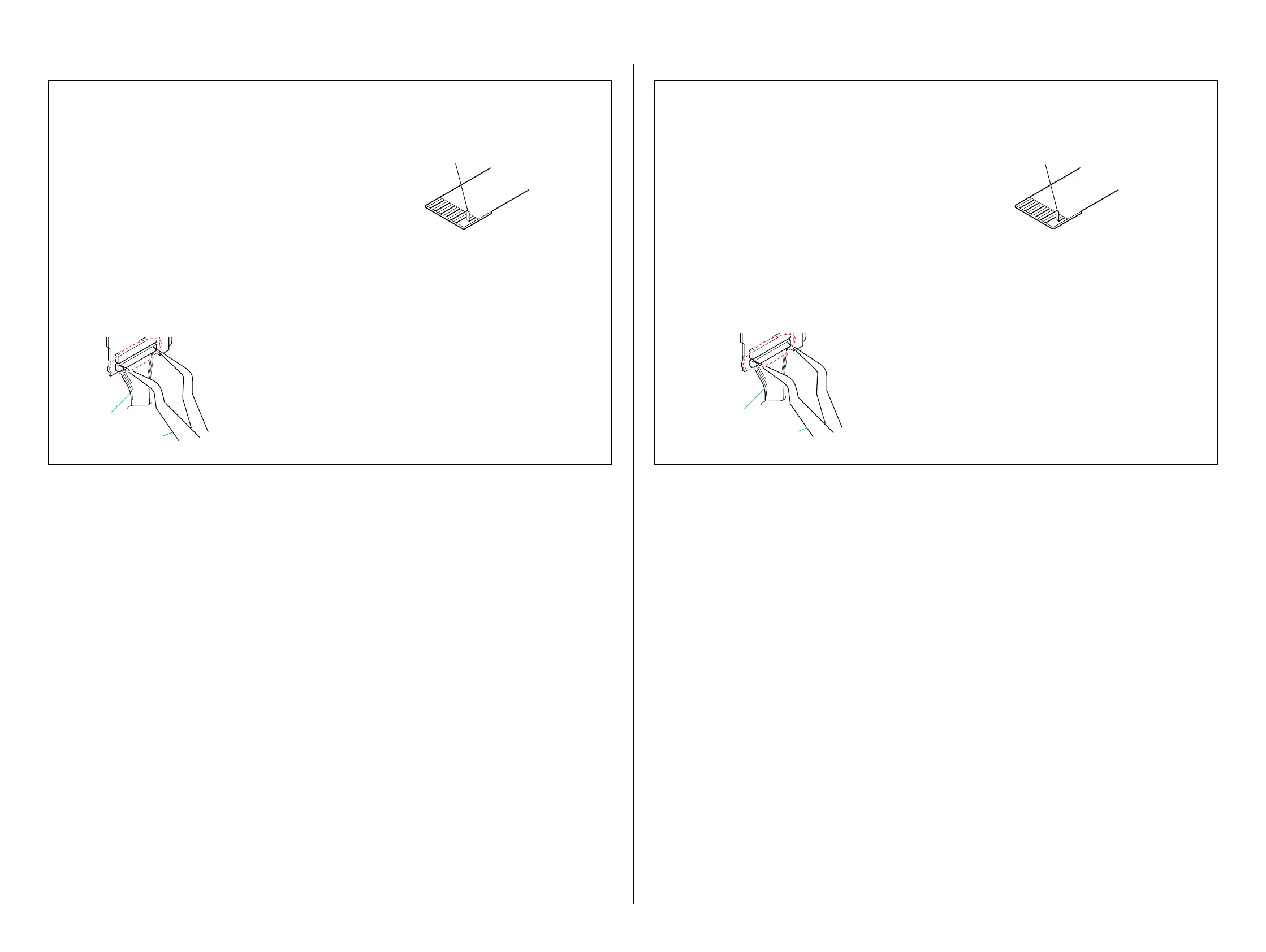

NOTE FOR DISCONNECTING THE HARNESS (COAXIAL CABLE)
ハーネス（同軸ケーブル）の交換について
Cut and remove the part of gilt
which comes off at the point.
(Be careful or some
pieces of gilt may be left inside)




Harness
(coaxial cable)
Tweezers etc.
When disconnecting the harness (COAX IAL CABL E ), do not
pull the harness part but pull off the connector body with tweezers
etc.





