HXR-NX5C/NX5E/NX5J/NX5M/NX5N/NX5P/NX5U
2-17

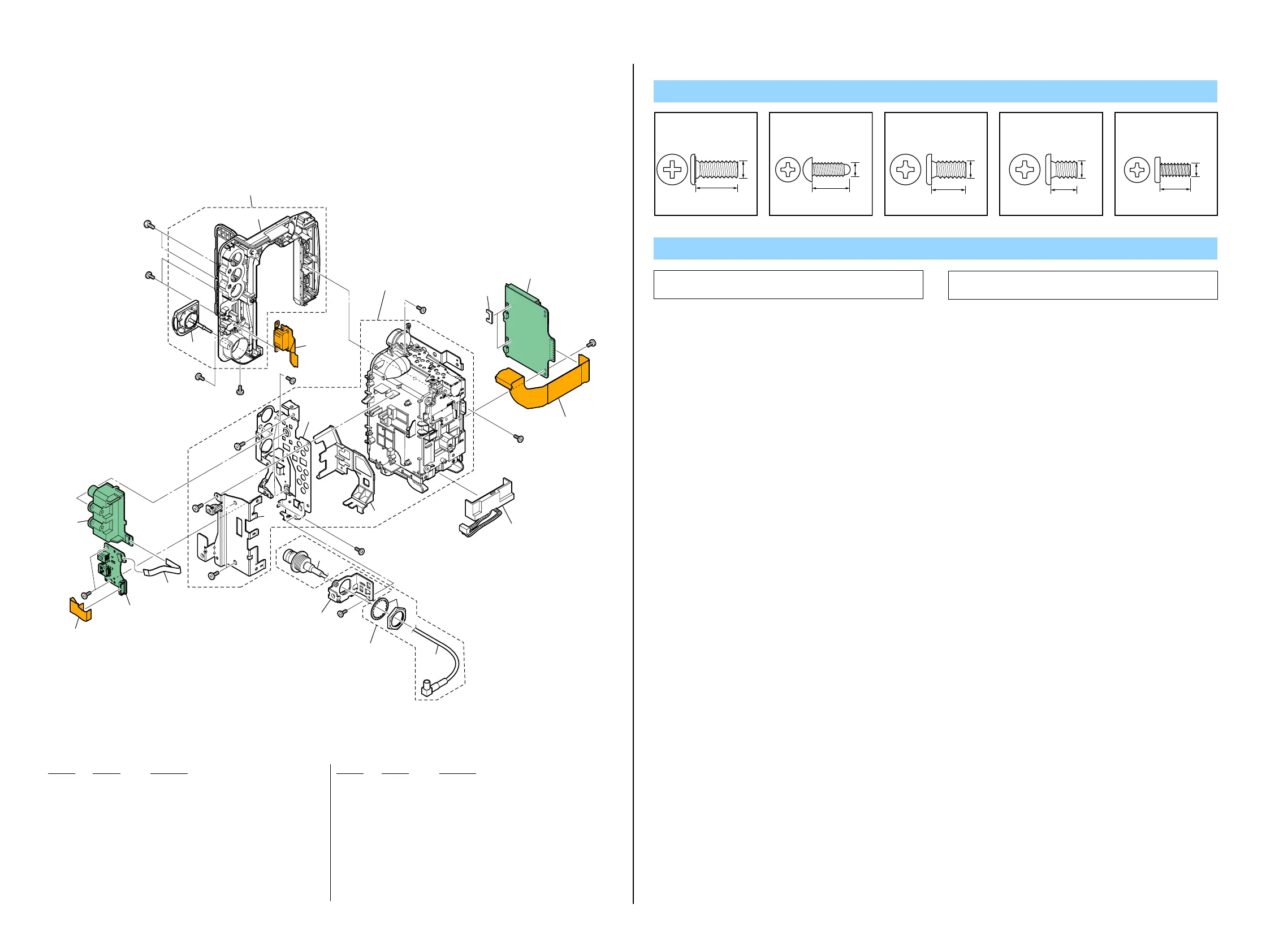

2-1-15. BT PANEL SECTION
ns: not supplied
Ref. No. Part No. Description Ref. No. Part No. Description
701 X-2515-765-1 PANEL (94000) ASSY, BT
702 4-165-234-01 COVER, SDI JACK
703 A-1752-133-A FP-1149 FLEXIBLE BOARD, COMPLETE
704 A-1752-099-A CP-004 BOARD, COMPLETE
705 1-879-883-11 FP-1162 FLEXIBLE BOARD
706 A-1752-115-A JK-392 BOARD, COMPLETE
707 1-837-240-11 CABLE, FLEXIBLE FLAT (FFC-194)
708 1-836-909-11 CABLE ASSY, COAXIAL (Note)
* 709 4-165-233-01 HOLDER, SDI
710 X-2515-780-1 HOLDER ASSY, BT
711 1-879-854-11 FP-1155 FLEXIBLE BOARD
712 4-165-226-01 SHEET, MS LIGHT INTERCEPTION
713 A-1752-120-A MS-424 BOARD, COMPLETE
714 4-165-269-01 HOLDER, JACK
0 BT901 1-694-411-12 TERMINAL BOARD, BATTERY
#2 2-635-562-31 SCREW (M1.7)
#34 3-077-331-41 +BV3 (3-CR)
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2
#50 2-891-494-11 SCREW (M2), NEW TRUSTER, P2
#53 3-080-206-21 SCREW, TAPPING, P2
Screw
ns
#49
#49
#2
#34
701
702
703
704
706
707
705
#50
711
713
710
#5
#53
#53
#53
#53
#53
#53
#53
BT901
MS-424
714
712
ns
ns
708
#53
ns
ns
709
(Note)
#2: M1.7 X 4.0
(Black)
2-635-562-31
4.0
1.7
#34: M3.0 X 8.0
(Black)
3-077-331-41
8.0
3.0
#49: M2.0 X 4.0
(Black)
2-630-005-31
4.0
2.0
#50: M2.0 X 3.0
(Red)
2-891-494-11
3.0
2.0
#53: M2.0 X 5.0 (Tapping)
(Black)
3-080-206-21
5.0
2.0
Note
Note:
Note: Connect and Disconnect the SDI Cable vertically.
Do not load to widthwise.
