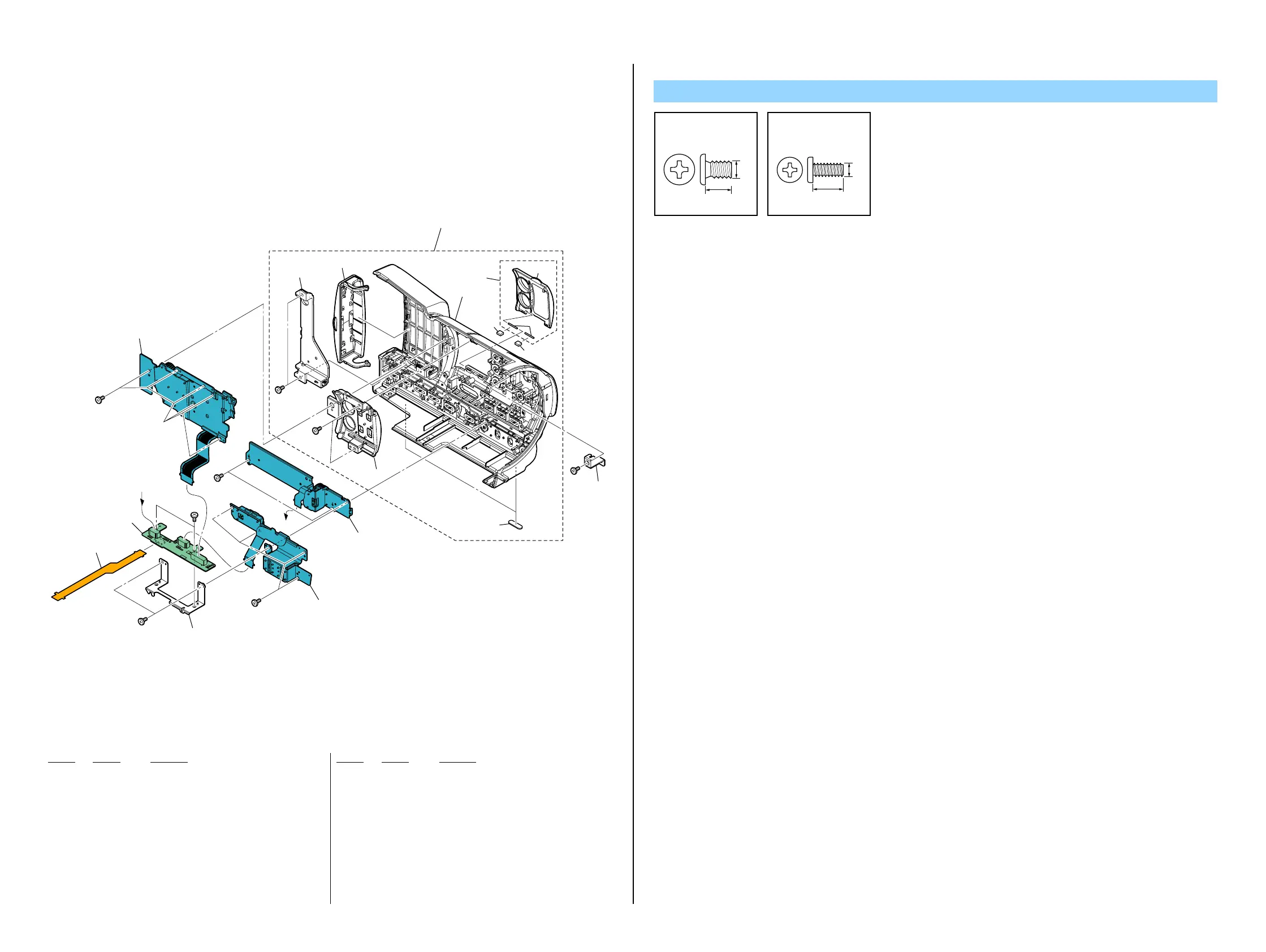

2-1-6. CABINET (R) SECTION
ns: not supplied
Ref. No. Part No. Description Ref. No. Part No. Description
251 1-879-858-11 FP-1159 FLEXIBLE BOARD
252 A-1752-112-A CK-218 BOARD, COMPLETE
253 1-487-451-11 SWITCH BLOCK, CONTROL (CF94000)
254 1-487-449-11 SWITCH BLOCK, CONTROL (KP94000)
255 1-487-450-11 SWITCH BLOCK, CONTROL (AU94000)
256 X-2515-775-1 CABINET (R (94000)) ASSY
(EXCEPT HXR-NX5M/HXR-NX5C)
256 X-2515-786-1 CABINET (R (94003)) ASSY
(HXR-NX5M/HXR-NX5C)
257 X-2546-696-1 LID SUB ASSY (94000), AL (SERVICE)
258 X-2546-465-1 LID SUB ASSY (94000), MS (SERVICE)
* 259 4-165-325-01 SHEET, RUBBER
* 260 4-119-383-01 PLATE, CABINET (R) FIXED
* 261 4-165-313-01 BASE, AL
#50 2-891-494-11 SCREW (M2), NEW TRUSTER, P2
#53 3-080-206-21 SCREW, TAPPING, P2
Screw
A
A
ns
ns
ns
ns
ns
ns
#53
#53
#53
#53
#53
#53
#53
#50
256
257
251
252
255
ns
258
259
261
260
254
253
#50: M2.0 X 3.0
(Red)
2-891-494-11
3.0
2.0
#53: M2.0 X 5.0 (Tapping)
(Black)
3-080-206-21
5.0
2.0
