HXR-NX5C/NX5E/NX5J/NX5M/NX5N/NX5P/NX5U
2-1
2. REPAIR PARTS LIST
Follow the disassembly in the numerical order given.
AC- DIS-
IDENTIFYING PARTS
Link
• Abbreviation
CH : Chinese model
CND : Canadian model
J : Japanese model
Right View
Left View
Front View
Bottom View
Top View
Back View
View Position
VC-582
1
Cabinet (L) Section
[Disassembly]

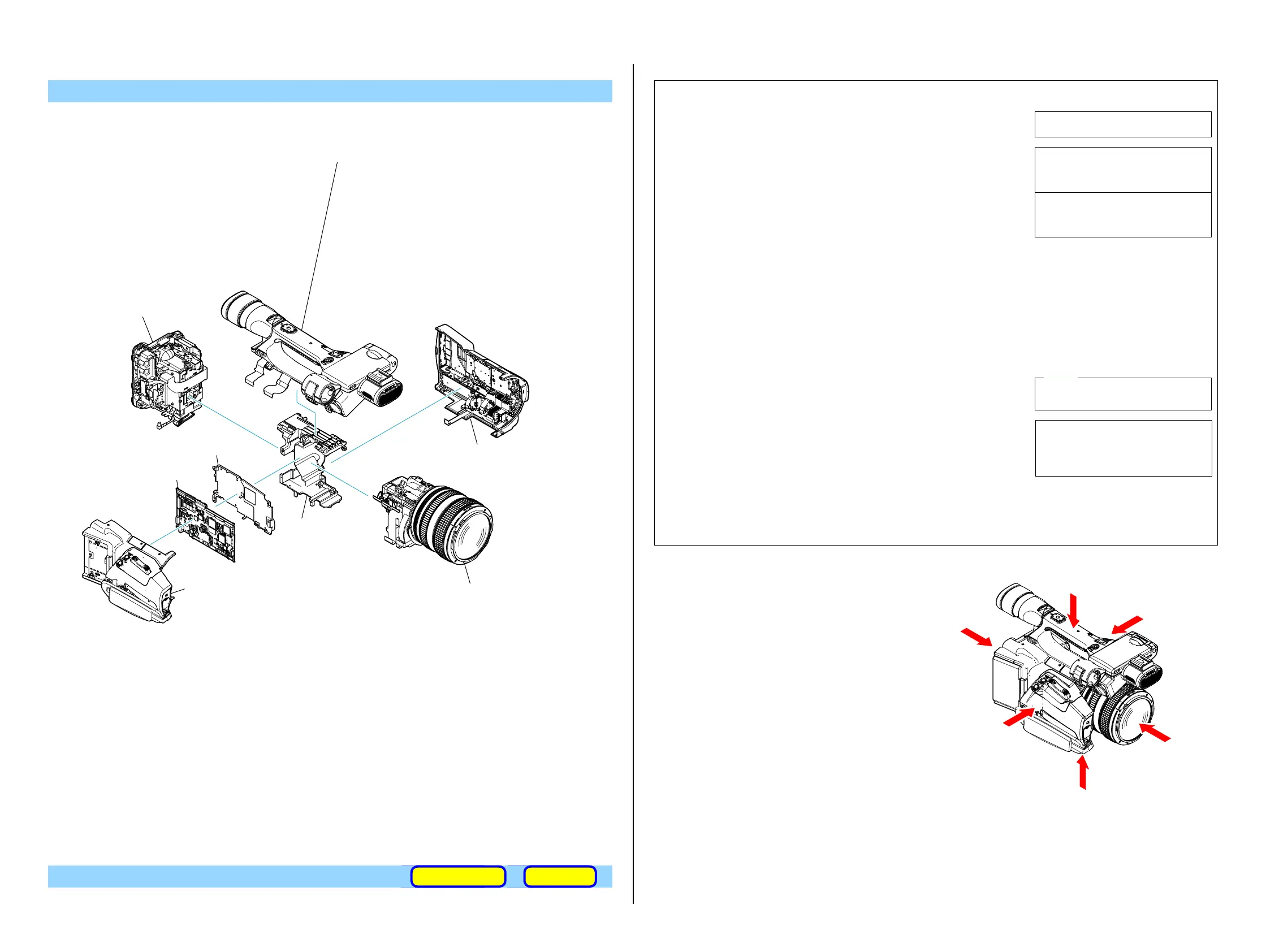

[Exploded View]
• Cabinet (L) Section- 1
• AS-063 Board
• GC-012 Board
• GS-010 Board
(Except HXR-NX5M/HXR-NX5C)
• FP-1151 Flexible Board
• FP-1156 Flexible Board
• FP-1161 Flexible Board
• Cabinet (L) Section- 2
• TC-001 Board
• TS-157 Board
Handle Section
[Disassembly]
[Exploded View]
• Handle Section- 1
• GP940 Assy (GP-028 Board)
(Except HXR-NX5M/HXR-NX5C)
• Handle Section- 2
• KY-115 Board
• PI-030 Board
• FP-1150 Flexible Board
• FP-1157 Flexible Board
• Handle Section- 3
• HG-001 Board
• HP-156 Board
• XL-011 Board
• FP-1152 Flexible Board
• Handle Section- 4
• EVF Section
• VF-179 Board
• FP-776 Flexible Board
• FP-1160 Flexible Board
• LCD Section
• HT-003 Board
• PD-395 Board
• Microphone Section
• MA-459 Board
• FP-1158 Flexible Board
4
5
Lens Section
[Disassembly]
[Exploded View]
• GY-022 Board
• Prism Device
(including CM-097/CM-104 Board
6
Cabinet (R) Section
[Disassembly]
[Exploded View]
• CK-218 Board
• FP-1159 Flexible Board
7
BT Panel Section
[Disassembly]
[Exploded View]
• CP-004 Board
• JK-392 Board
• MS-424 Board
• FP-1149 Flexible Board
• FP-1155 Flexible Board
• FP-1162 Flexible Board
2 VC-582 Board
3 Main Frame
8 Main Chassis
(ENGLISH)
NOTE:
• -XX, -X mean standardized parts, so they may have some differences from the original
one.
• Items marked “*” are not stocked since they are seldom required for routine service.
Some delay should be anticipated when ordering these items.
• The mechanical parts with no reference number in the exploded views are not sup-
plied.
• Due to standardization, replacements in the parts list may be different from the parts
specified in the diagrams or the components used on the set.
• CAPACITORS:
uF: F
• COILS
uH: H
• RESISTORS
All resistors are in ohms.
METAL: metal-film resistor
METAL OXIDE: Metal Oxide-film resistor
F: nonflammable
• SEMICONDUCTORS
In each case, u: , for example:
uA...: A... , uPA... , PA... ,
uPB... , PB... , PC... , PC... ,
uPD..., PD...
(JAPANESE)
The components identified by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
0
0
When indicating parts by reference
number,please include the board name.
ACCESSORIES ASSEMBLY
To Next Page
