HXR-NX5C/NX5E/NX5J/NX5M/NX5N/NX5P/NX5U
2-10

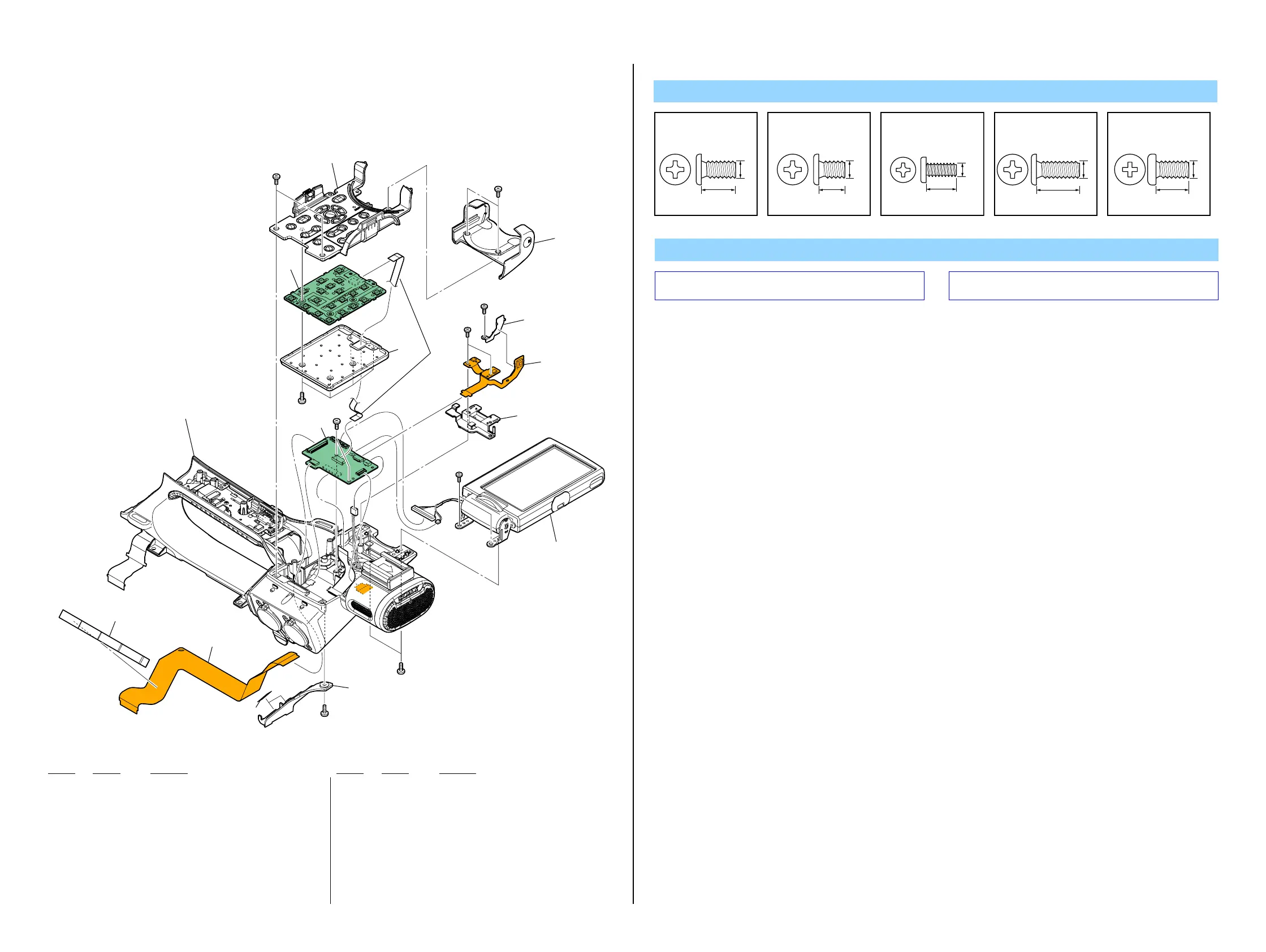

2-1-8. HANDLE SECTION-2
Ref. No. Part No. Description Ref. No. Part No. Description
351 X-2515-767-1 PANEL (94000) ASSY, CONTROL
352 A-1752-116-A KY-115 BOARD, COMPLETE
353 1-837-240-11 CABLE, FLEXIBLE FLAT (FFC-194)
* 354 4-165-283-01 COVER (BB)
355 A-1752-129-A PI-030 BOARD, COMPLETE (Note)
356 4-119-279-01 HOLDER, FLEXIBLE (Note)
357 A-1752-134-A FP-1150 FLEXIBLE BOARD, COMPLETE (Note)
358 X-2188-609-1 FIXED (759) ASSY
359 X-2515-768-1 COVER (94000) ASSY, (FRONT)
360 4-165-281-01 CABINET, HANDLE (FRONT)
361 1-879-856-12 FP-1157 FLEXIBLE BOARD
362 4-169-934-01 SHEET (FP1157), COUNTERMEASURE
* 363 4-174-174-01 CUSHION, HANDLE (FRONT) CABINET
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2
#50 2-891-494-11 SCREW (M2), NEW TRUSTER, P2
#53 3-080-206-21 SCREW, TAPPING, P2
#100 3-080-203-51 SREW (M2), LOCK ACE, P2
#119 7-627-556-58 SCREW +P 2.6X5
Screw
KY-115
PI-030
#119
#50
#50
LCD section
(See page 2-14)
359
360
361
363
362
357
(Note)
356
(Note)
355
(Note)
358
#50
#49
#49
353
354
351
352
#53
#100
#100
Handle section-3
(See page 2-11)
#50: M2.0 X 3.0
(Red)
2-891-494-11
3.0
2.0
#53: M2.0 X 5.0 (Tapping)
(Black)
3-080-206-21
5.0
2.0
#49: M2.0 X 4.0
(Black)
2-630-005-31
4.0
2.0
#119: M2.6 X 5.0
(Black)
7-627-556-58
5.0
2.6
#100: M2.0 X 6.0
(Black)
3-080-203-51
6.0
2.0
Note
Note : Refer to “Assembly-4: How to arrange Harnesses and
Flexible Board”when installing.
Note :
The changed portions from
Ver. 1.0 are shown in blue.
Ver. 1.1 2010.01
