237
4
In the <Flex Shadow Source> group, select the signal
to use for the flex shadow.
External: Generate using an input key signal.
Internal: Generate using a full-size key signal.
5
In the <Flex Shadow Fill> group, select the signal for
the flex shadow portion.
Flat Color: Single color
Mix Color: Mix color signal set in the DME >Edge
>Color Mix menu (4117) (see page 241)
Ext Video: External video signal input from Ext In
6
When [Flat Color] is selected in step 5, set the
following parameters.
Adjusting the size of the flex shadow
1
In the Flex Shadow menu (4115), press [Size].
2
Set the following parameters.
a) The Soft parameter is valid only when [Internal] is selected in the
<Flex Shadow Source> group.
Setting the center point of the flex shadow
1
In the Flex Shadow menu (4115), press [Axis Loc].
2
Set the following parameters.
The flex shadow center axis appears when [Flex Shadow
Axis] is enabled in the <Graphic Type> group of the DME
>Input/Output >Graphic menu (4164).
For details, see “Displaying graphics” (page 229).
Skewing the flex shadow
1
In the Flex Shadow menu (4115), press [Skew].
2
Set the following parameters.
Adding perspective to the flex shadow
1
In the Flex Shadow menu (4115), press [Perspective].
2
Set the following parameters.
No. Parameter Adjustment
1 Luminance Luminance
2 Saturation Saturation
3Hue Hue
No. Parameter Adjustment
1 Size H Enlarge or shrink horizontally
2 Size V Enlarge or shrink vertically
3 Size All Enlarge or shrink horizontally and
vertically
4Soft
a)
Softness of shadow
5 Density Density of shadow
No. Parameter Adjustment
1 Axis Loc H Move the shadow center axis
horizontally
2 Axis Loc V Move the shadow center axis
vertically
No. Parameter Adjustment
1 Skew H Skew horizontally
2 Skew V Skew vertically
No. Parameter Adjustment
1Perspective
H
Add horizontal perspective
2Perspective
V
Add vertical perspective

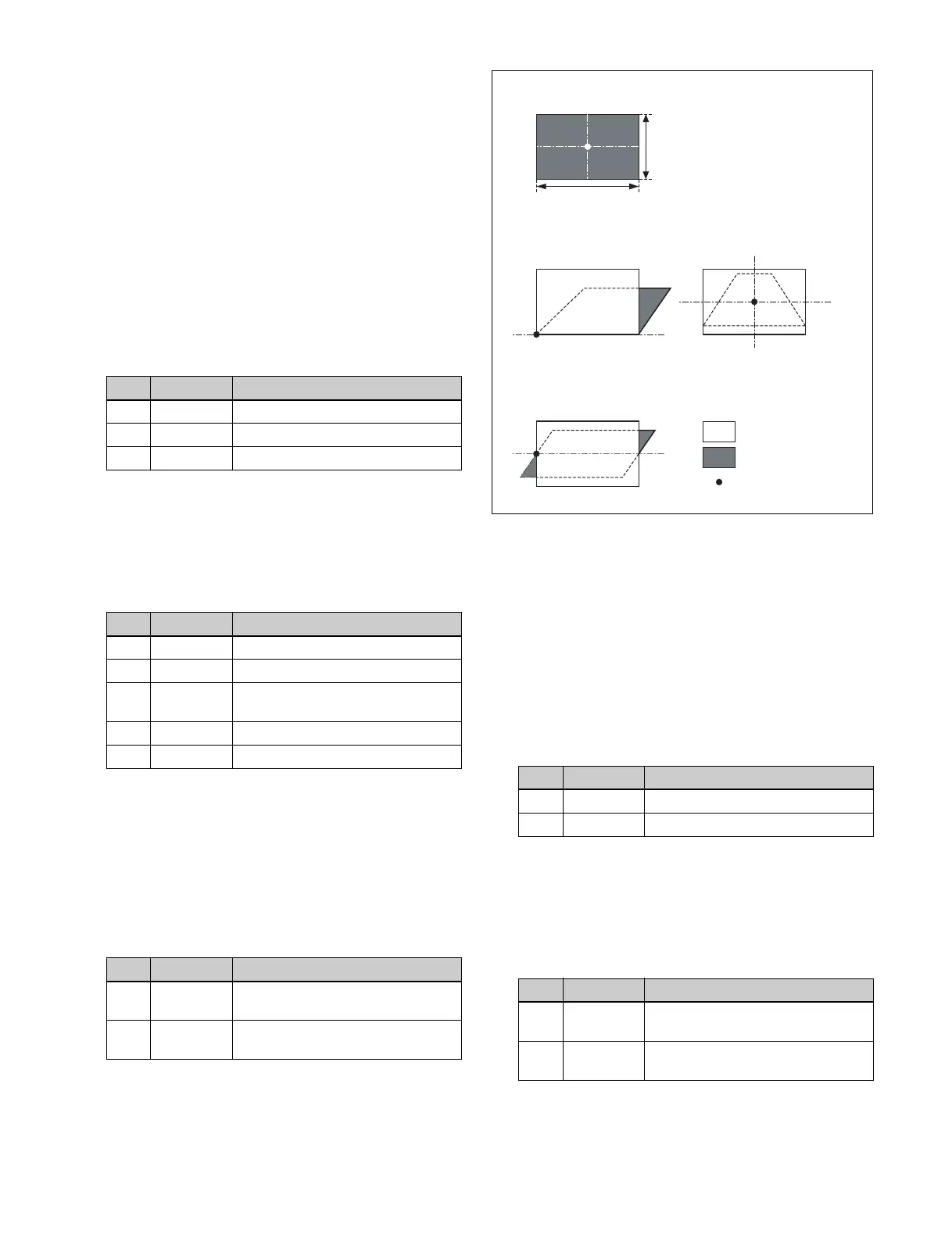

Shadow skewed with
Axis Loc set at the lower
left corner of the picture
When the default Axis Loc setting is used
Axis Loc H
Axis Loc V
Video
Flex shadow
Axis Loc position
Shadow size and
perspective adjusted with
default Axis Loc setting
Shadow skewed with Axis
Loc set at the midpoint on
the left edge of the picture
To Next Page
