Setting the transition rate (Flexi Pad
control block)
Flexi Pad control block
1
In the Flexi Pad control block of the target switcher
bank, press the [TRANS RATE] button.
This switches the memory recall section to transition
rate operation mode.
2
Enter the transition rate in the numeric keypad.
You can switch the input mode using the [TC] button.
In frame input mode, enter three digits. In timecode
input mode, enter four digits.
The entered value appears in the top right of the
memory recall section.
To clear the entered value, press the [CLEAR] button.
3
Press the [ENTER] button.
Setting the transition rate (utility/shotbox
control block and numeric keypad control
block)
Pressing the [TRANS RATE1] to [TRANS RATE3]
buttons on the utility/shotbox control block displays the
transition rates set in the switcher bank or key on the
memory recall buttons. Pressing a memory recall button
displaying a transition rate enables you to enter a transition
rate using the numeric keypad control block.
You can change the target that is displayed on the [TRANS
RATE1] to [TRANS RATE3] buttons in the Setup menu
(see page 427).
Numeric keypad control block
1
Press the [TRANS RATE1] to [TRANS RATE3]
buttons in the utility/shotbox control block.
This switches the memory recall buttons to transition
rate display mode.
2
Press a memory recall button displaying the transition
rate to set, turning it on.
The region name and transition rate appears in the
numeric keypad control block display.
3
Enter the transition rate using the numeric keypad in
the numeric keypad control block.
You can switch the input mode using the [TC] button.
In frame input mode, enter three digits. In timecode
input mode, enter four digits.
To clear the entered value, press the [CLR] button.
4
Press the [ENTER] button.
The input is applied, and the specified value is
reflected in the memory recall button in the utility/
shotbox control block.
The specified value is also displayed in the transition
rate display section of the transition control block.

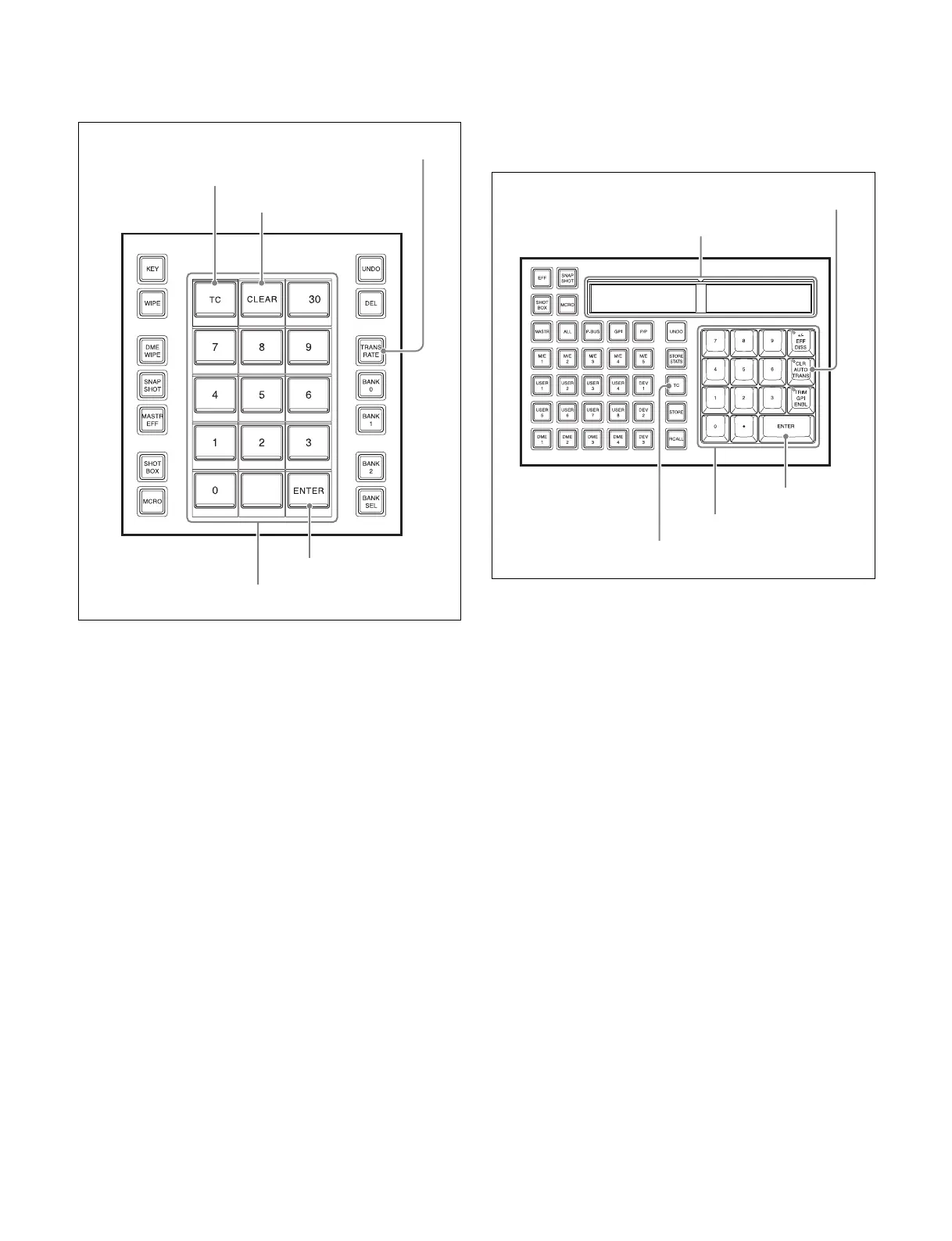

TRANS RATE button
