Introduction
Chapter 1 Overview
Chapter
Overview
Introduction
The unit allows you to adjust and set video effects, transitions, and audio in detail to
perform more sophisticated switching. You can also perform 3D video switching,
and use the frame memory function to write one screen of the input video to memory
so that you can use it as input material.
System Configuration Examples

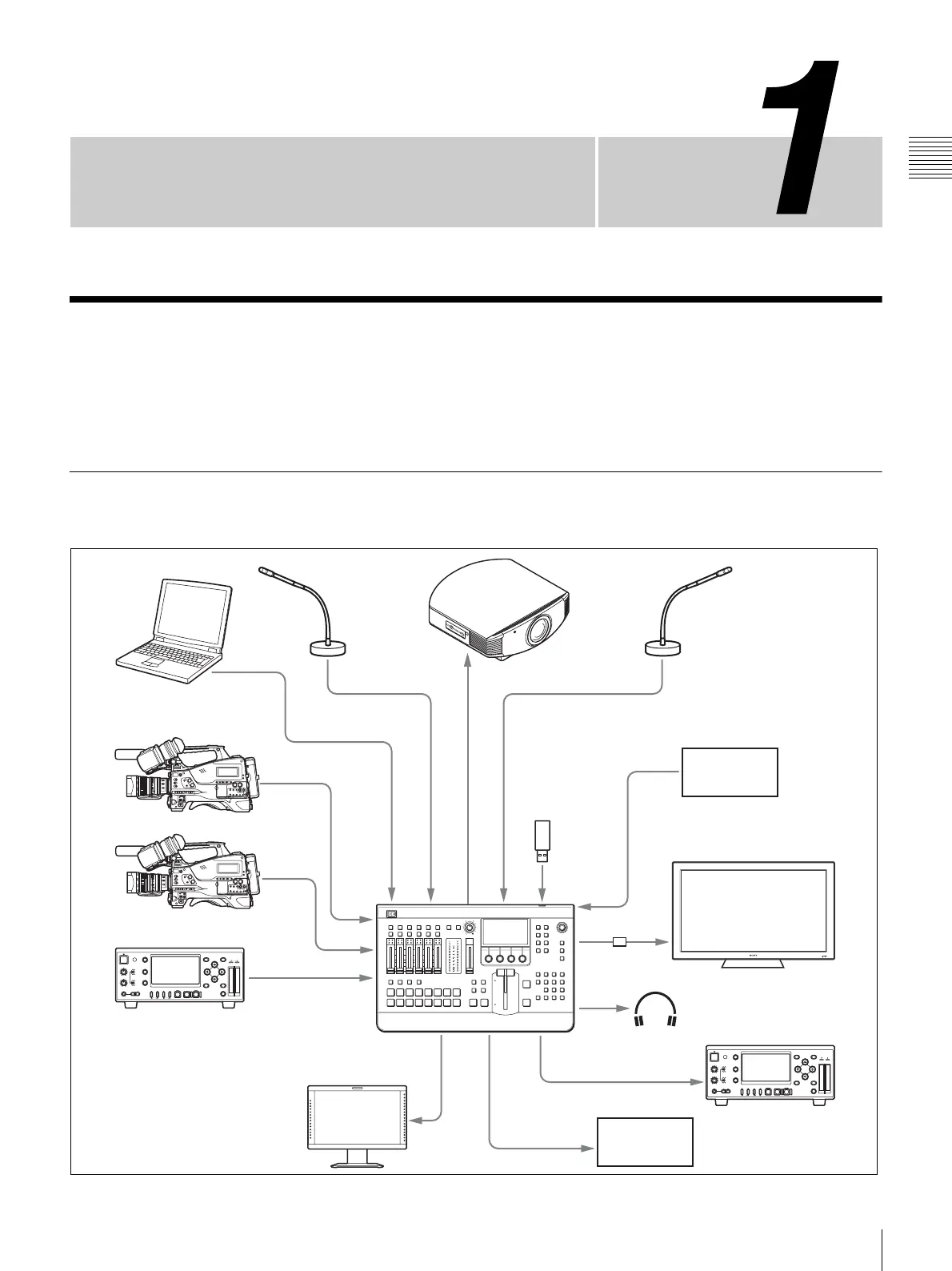

Example 1: When SD system
Presenter computer
Presenter
microphone
Projector
VIDEO
DVI-D
Host microphone
DVI-I
SDI
VIDEO
SDI
PA, etc.
Multi Viewer display
Headphones
PGM monitoring display
Recording equipment
with SDI input
Camera with SDI output
Recording equipment
with SDI output
CD/DVD
player
SDI
USB flash drive
(CG material)
PGM
SDI
MIC/LINE
MIC/LINE
LINE
Camera with VIDEO output
DVI⇔HDMI
conversion cable
