MEX-BT3600U
15

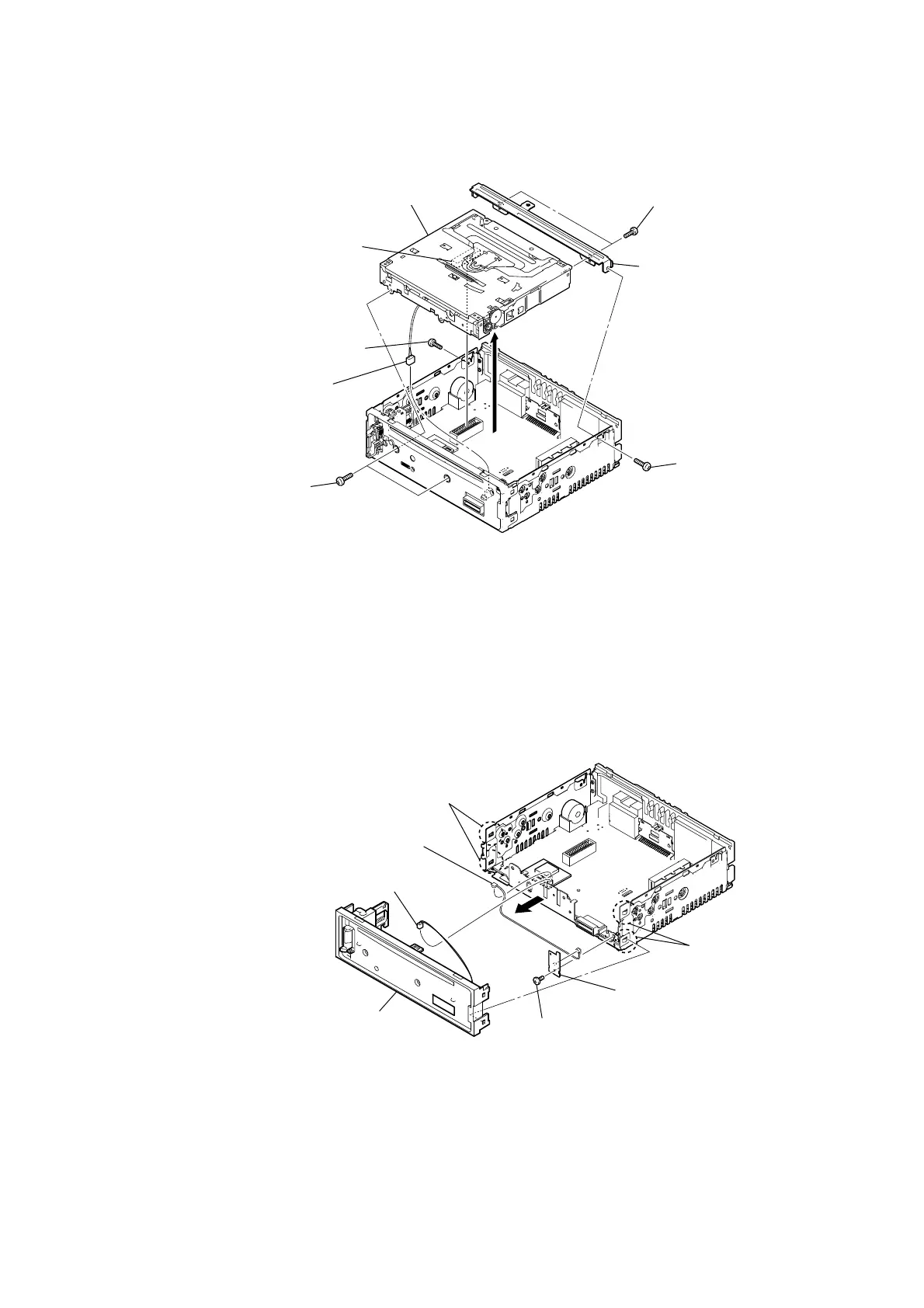

3-4. ANTENNA BOARD
3-3. CD MECHANISM DECK BLOCK (MG-101I-188//Q)
screw
(PTT2.6 × 6)
connector
(CN2)
CD mechanism deck block
(MG-101I-188//Q)
screw
(PTT2.6 × 6)
two screws
(PTT2.6 × 6)
two screws
(PTT2.6 × 4)
connector
(CN352)
bracket (CD)
two claws
two claws
connector
lead wire with connector
(ANTENNA board: CN1, BT board)
sub panel assy
screw (T)
ANTENNA board
