Sony MEX-BT3600U Service Manual

MEX-BT3600U
16

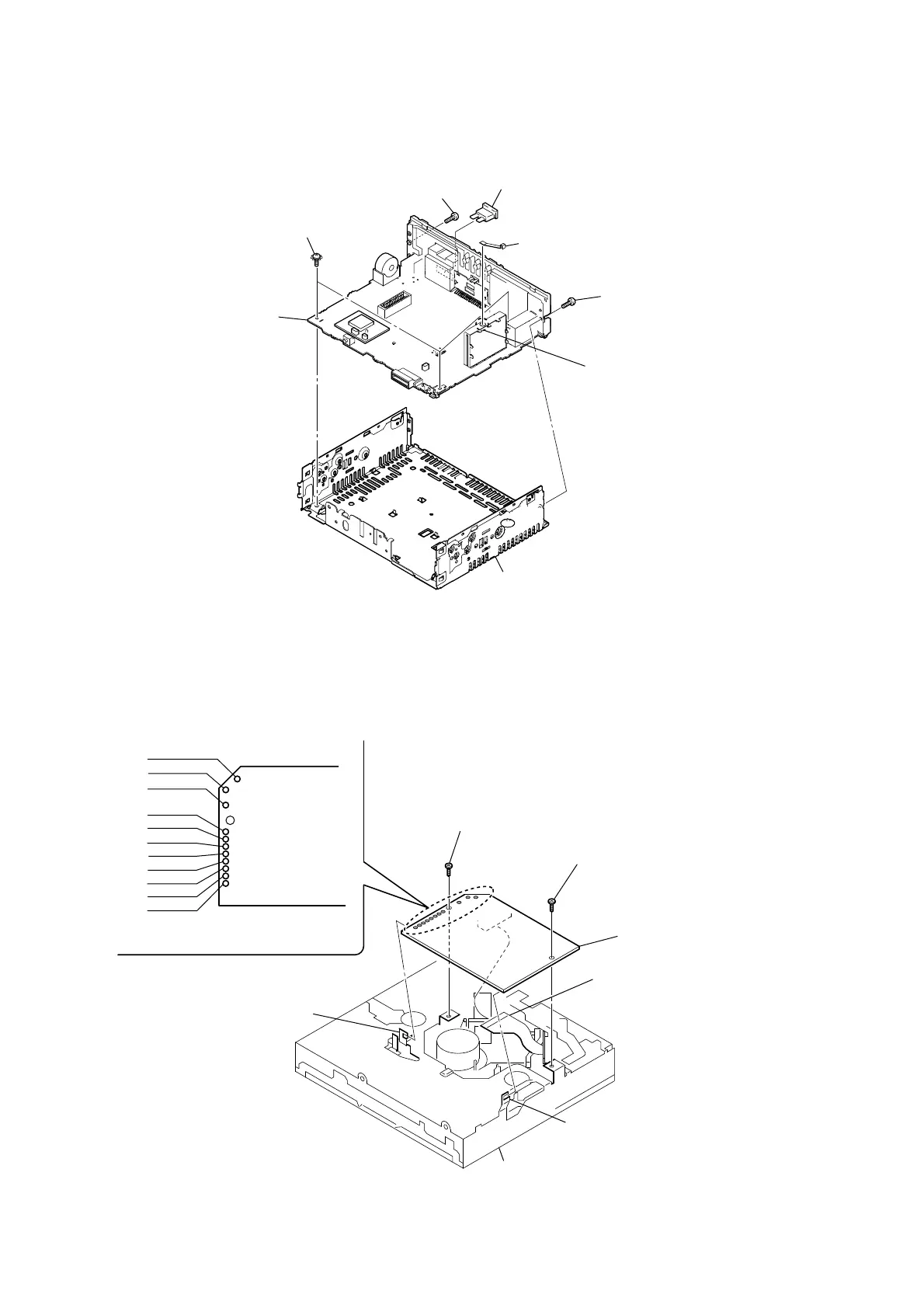

3-5. MAIN BOARD
3-6. SERVO BOARD
 Remove the solder.
 ground sheet (TU)
 fuse (blade type) (auto fuse) (10A/32V)
(FU601)
 MAIN board
chassis block
 screw
(PTT2.6 × 8)
 screw
(PTT2.6 × 8)
 three ground point screws
(PTT2.6 × 6)
mechanical block assy (bottom view)
SERVO board
SERVO board
claw
claw
toothed lock
screw
(M1.7 × 2.5)
toothed lock screw
(M1.7
× 2.5)
 Remove the eleven solders.
GRY
YEL
BLU
ORG
VIO
BLK
RED
WHT
BLK
RED
WHT
optical pick-up (16 core)
(CN1)

Sony MEX-BT3600U Specifications

General

MP3 playback	Yes
Tuner type	SSIR-EXA
Supported radio bands	FM, LW, MW, SW
Preset stations quantity	18
Product color	Black
Ready for iPod	No
Frequency range	10 - 20000 Hz
Audio output channels	4.0 channels
Equalizer bands quantity	3
Maximum power per channel	52 W
Signal-to-Noise Ratio (SNR)	120 dB
Display type	Fluorescent
I/O ports	USB 2.0 Pre-amp Out: Front / Rear Audio AUX Front In
Key illumination color	Blue

Weight and Dimensions

Dimensions (WxDxH)	178 x 179 x 50 mm
