Sony MEX-BT3600U Service Manual

MEX-BT3600U
19

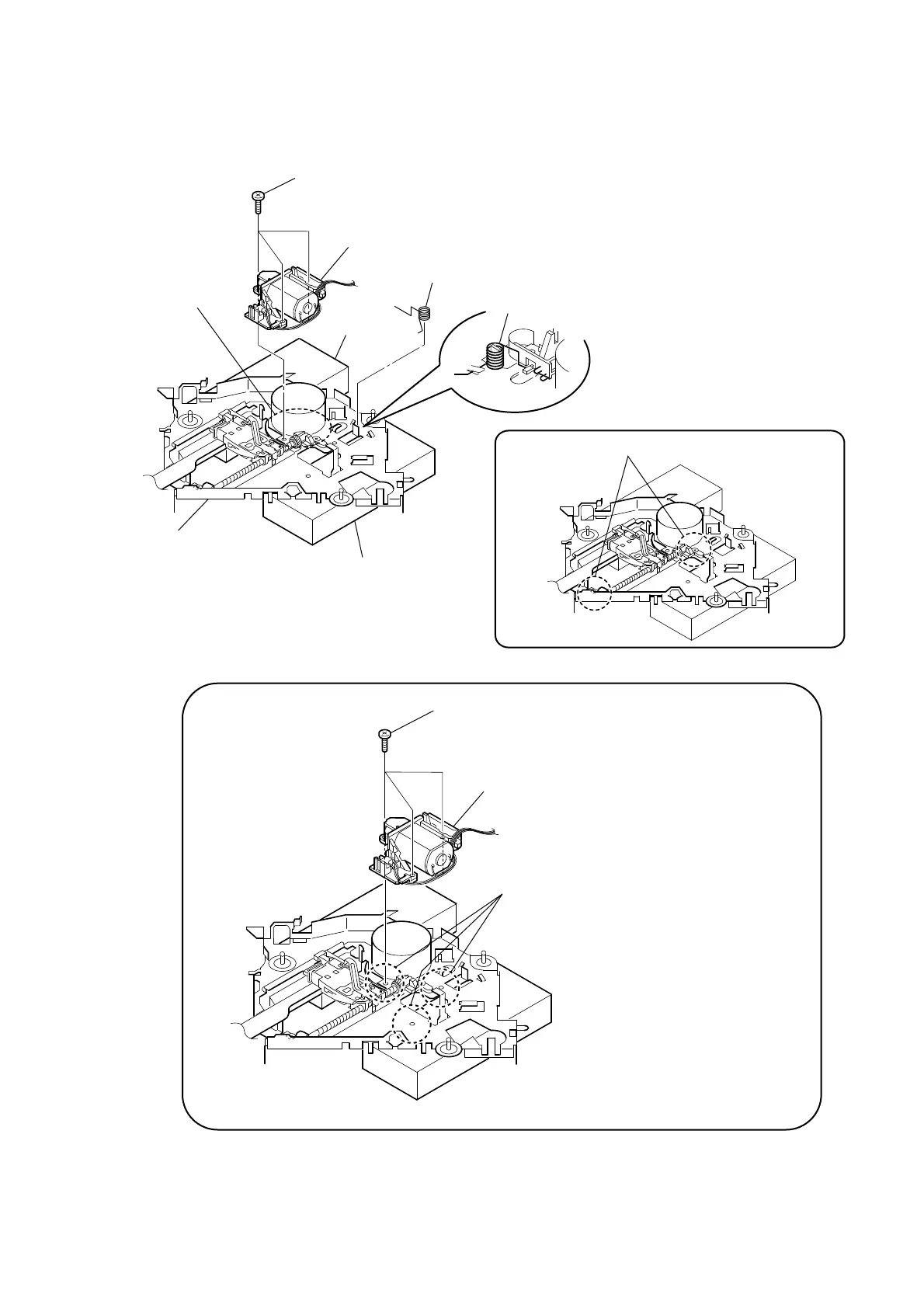

3-11. SLED MOTOR ASSY
NOTE FOR ASSEMBLY
sled motor assy
sled motor assy
spring
spring
stand
stand
turn table
three serration screws
(M2 × 3)
three serration screws
(M2 × 3)
chassis (OP) sub assy
(bottom view)
Note 1: Place the stand with care not to touch the turn table.
Note 2: Never remove these parts since they were adjusted.
Note 3: Take care to prevent the chassis from being bent
when tightening the three machine screws.
