Sony MEX-BT3600U Service Manual

MEX-BT3600U
38
101 A-1313-179-A MECHANICAL BLOCK (U) ASSY 08,
0 102 A-1284-705-A DAXEV08//Q
0 103 X-2149-672-1 SERVICE ASSY, OP (DAX-25A)
104 2-626-869-01 SCREW (M2X3), SERRATION
105 3-348-998-31 SCREW (M1.4X2.5), TAPPING, PAN
106 3-352-758-31 SCREW (M1.7X2.5), TOOTHED LOCK
107 A-1362-921-A SERVO BOARD, COMPLETE
#6 7-627-000-08 SCREW, PRECISION +P 1.7X2.2 TYPE3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

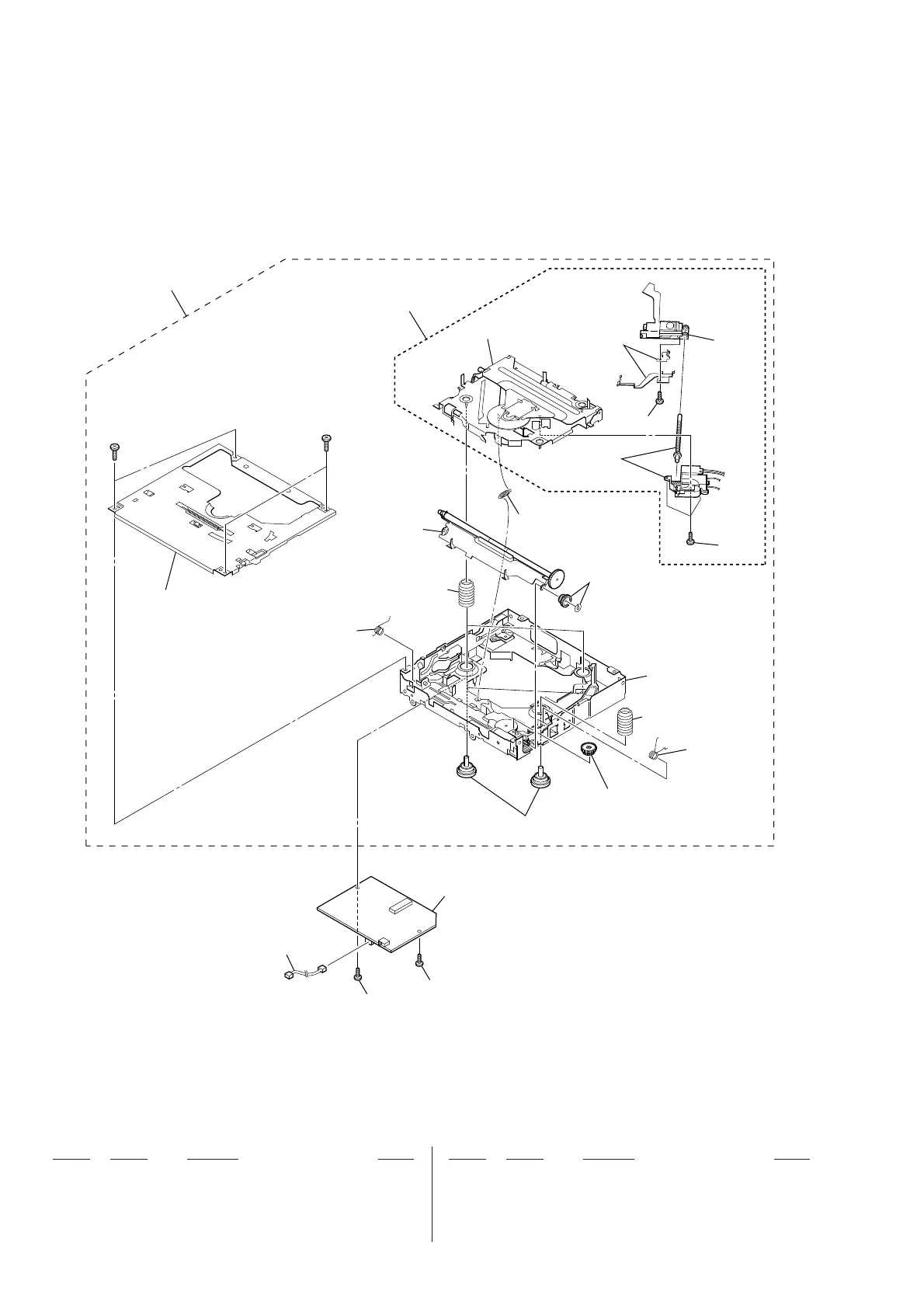

6-3. CD MECHANISM DECK SECTION
(MG-101I-188//Q)
not supplied
#6
#6
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
101
107
106
not supplied
not supplied
not supplied
not supplied
not supplied
106
not supplied
not supplied
not supplied
102
103
105
104
