Sony MEX-BT3600U Service Manual

MEX-BT3600U
18

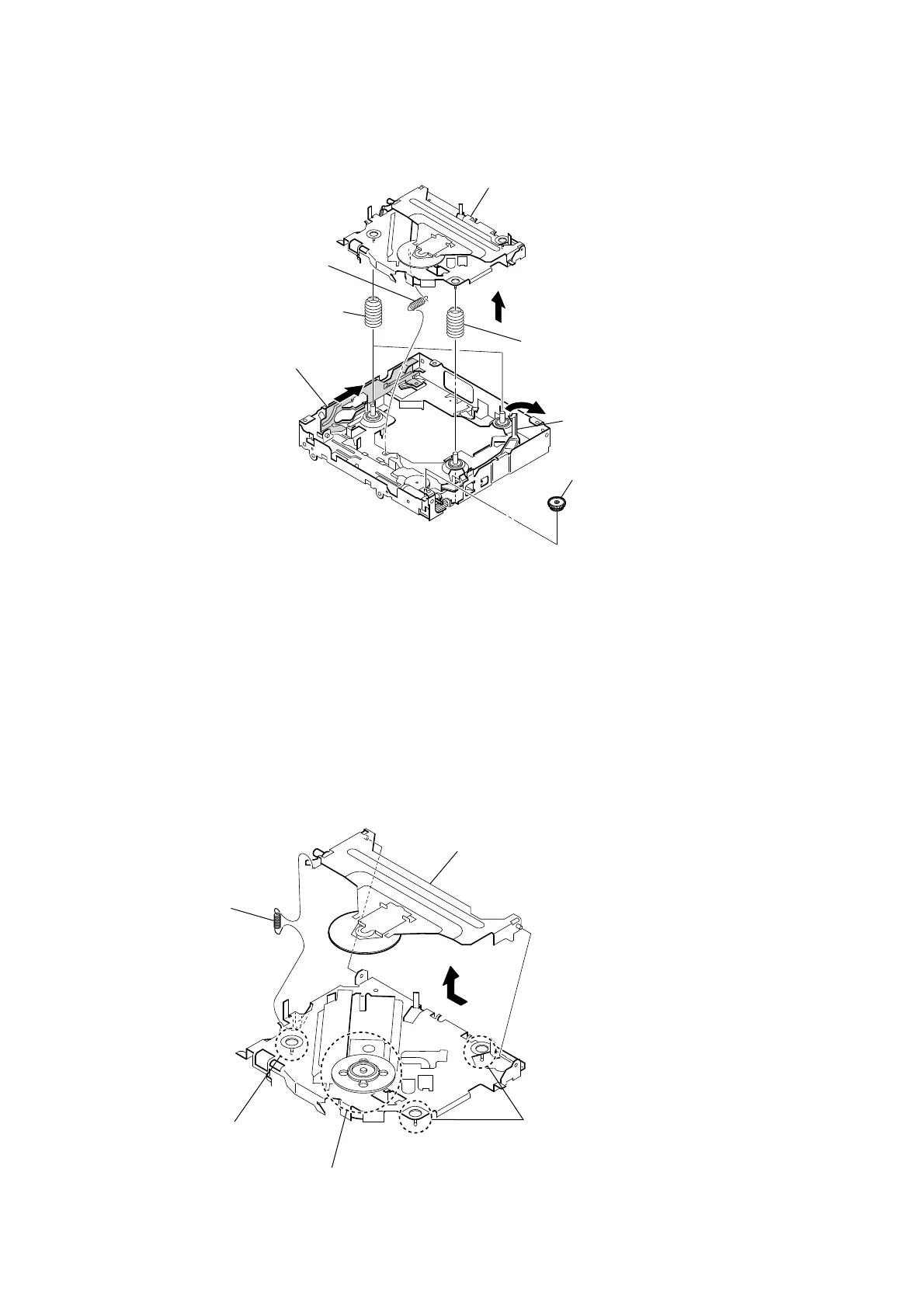

3-9. CHASSIS (OP) ASSY
3-10. CHUCKING ARM SUB ASSY
two coil springs (damper)
(silver)
coil spring (damper) (green)
 chassis (OP) assy

 tension spring (KF)
gear (LE1)
"
#
Slide the slider (R) in the
direction of arrow ".
Slide the lever (D) in the
direction of arrow #.
chucking arm sub assy

spring
Note 1: Have this portion receive the chassis.
Note 1: Have this portion receive the chassis.
Note 2: Be careful not to touch the turn table.

Sony MEX-BT3600U Specifications

General

MP3 playback	Yes
Tuner type	SSIR-EXA
Supported radio bands	FM, LW, MW, SW
Preset stations quantity	18
Product color	Black
Ready for iPod	No
Frequency range	10 - 20000 Hz
Audio output channels	4.0 channels
Equalizer bands quantity	3
Maximum power per channel	52 W
Signal-to-Noise Ratio (SNR)	120 dB
Display type	Fluorescent
I/O ports	USB 2.0 Pre-amp Out: Front / Rear Audio AUX Front In
Key illumination color	Blue

Weight and Dimensions

Dimensions (WxDxH)	178 x 179 x 50 mm
