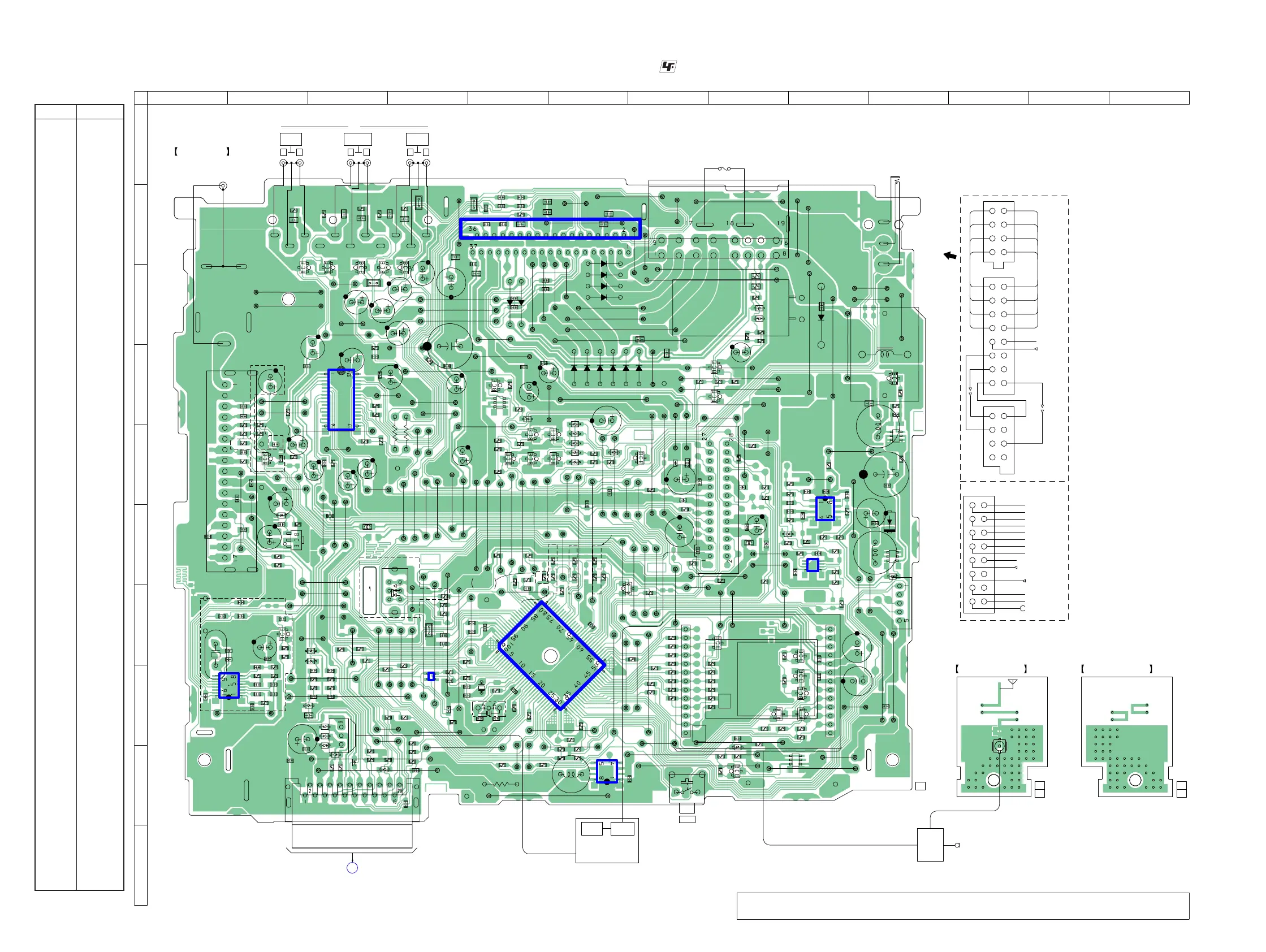

5-1. PRINTED WIRING BOARDS - MAIN Section -
• : Uses unleaded solder.
• See page 25 for Circuit Boards Location.
Ref. No. Location
• Semiconductor
Location
D2 F-2
D101 H-3
D102 H-3
D103 I-3
D104 H-3
D105 H-3
D106 G-3
D107 G-3
D301 C-5
D302 C-5
D303 D-7
D304 D-6
D305 D-6
D306 D-6
D307 D-6
D308 D-6
D309 C-6
D310 C-6
D311 C-6
D312 B-6
D313 D-5
D400 G-7
D491 E-6
D492 E-6
D493 E-6
D494 E-6
D501 I-3
D602 E-6
D603 E-6
D607 C-9
D702 C-8
D704 C-8
D800 H-9
D801 H-8
D802 F-10
D803 F-10
D807 H-8
D808 F-9
IC50 H-2
IC300 B-6
IC401 D-3
IC501 G-6
IC602 H-4
IC803 F-9
IC804 I-6
IC805 F-9
Q1 E-2
Q3 F-2
Q50 G-2
Q300 D-5
Q301 D-5
Q420 C-4
Q432 C-3
Q440 C-3
Q452 C-3
Q470 C-2
Q491 E-5
Q492 E-6
Q495 G-8
Q496 E-7
Q601 E-5
Q602 E-5
Q605 E-6
Q701 D-8
Q702 D-8
Q806 F-10
Q807 E-10
Q808 D-10
Q809 I-8
Q811 I-9
Q812 H-9
Q813 G-9
Q814 H-9
Note: When the BT board is replaced, it is necessary to confi rm operation. Refer to “BLUETOOTH FUNCTION
CHECKING METHOD USING A CELLULAR PHONE” of the servicing notes (See page 5).
