Sony PMW-EX1R User Manual

Specifications
168
Appendixes

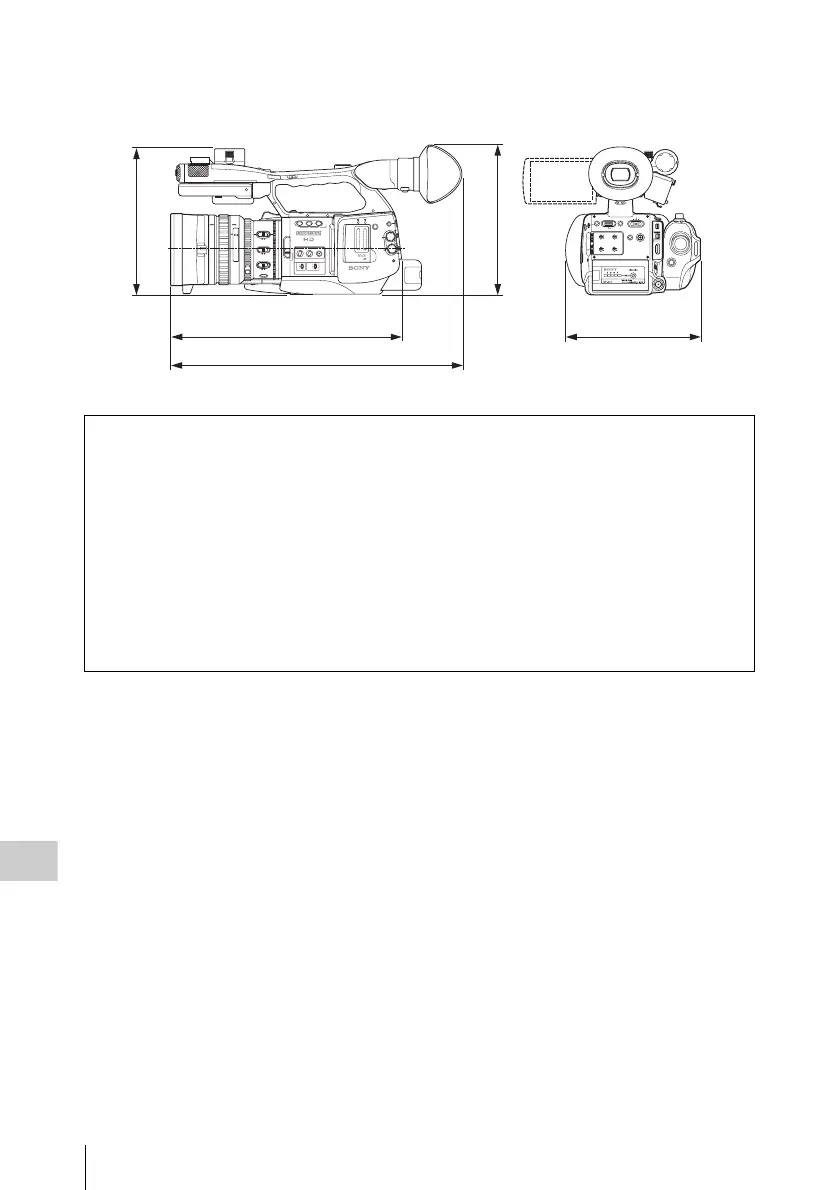

Dimensions
OPEN
CLOSE
AF/MF Full MF
15 25 40 81.210
310mm5
10 30
ft15
5.8
C
MANU AUTO
MANU AUTO
MACRO
FOCUS
PUSH AF
IRIS
OFF ON
85.6 42.81.916
AB
AUTO
MANUAL
INTMIC
EXT
PROFILE
DC IN
CH-2
AUTO
MANUAL
INTMIC
EXT
CH-1
AUDIO
SELECT
AUDIO
IN
OFF
R
CAMERA
CANCELMENU
SEL/SET
MEDIA
S&Q
CH-1
AUDIO
LEVEL
CH-2
CACHE REC
PMW-EX1R
EXPANDED
FOCUS
REC
REVIEW
RELEASE
START/
STOP
123
ASSIGN
LENS INFO BRT DISP HISTOGRAM
ZEBRA PEAKING
GAIN
OFF
2
1
ND
FILTER
B
A
PRST
L
M
H
WHITE BAL
FULL AUTO
SLOT SELECT
S&Q
CH-1
AUDIO
LEVEL
CH-2
CACHE REC
A/V
OUT
COMPONENT
OUT
HDMI
OPEN
199
(
7
7
/
8
)
215
(
8
1
/
2
)
384
(
15
1
/
8
)
308
(
12
1
/
4
)
179
(
7
1
/
8
)
Unit: mm (inches)
Notes
• Always make a test recording, and verify that it
was recorded successfully.
SONY WILL NOT BE LIABLE FOR
DAMAGES OF ANY KIND INCLUDING,
BUT NOT LIMITED TO, COMPENSATION
OR REIMBURSEMENT ON ACCOUNT OF
FAILURE OF THIS UNIT OR ITS
RECORDING MEDIA, EXTERNAL
STORAGE SYSTEMS OR ANY OTHER
MEDIA OR STORAGE SYSTEMS TO
RECORD CONTENT OF ANY TYPE.
• Always verify that the unit is operating properly
before use. SONY WILL NOT BE LIABLE
FOR DAMAGES OF ANY KIND
INCLUDING, BUT NOT LIMITED TO,
COMPENSATION OR REIMBURSEMENT
ON ACCOUNT OF THE LOSS OF PRESENT
OR PROSPECTIVE PROFITS DUE TO
FAILURE OF THIS UNIT, EITHER DURING
THE WARRANTY PERIOD OR AFTER
EXPIRATION OF THE WARRANTY, OR
FOR ANY OTHER REASON WHATSOEVER.

Sony PMW-EX1R Specifications

General

Sensor type	CMOS
Total megapixels	- MP
Filter size	77 mm
Digital zoom	- x
Optical zoom	14 x
Image stabilizer	Yes
Focal length range	5.8 - 81.2 mm
Focal length (35mm film equivalent)	31.4 - 439 mm
Camcorder media type	HDD, Memory card
Internal storage capacity	32 GB
Focus adjustment	Auto/Manual
Camera shutter speed	1/32 - 1/2000 s
Display diagonal	3.5 \
Display resolution	640 x 480 pixels
Display resolution (numeric)	921000 pixels
Viewfinder screen size	0.45 \
Product color	Black
Minimum illumination	0.14 lx
Video formats supported	MPEG2
Maximum video resolution	1920 x 1080 pixels
Analog signal format system	NTSC, PAL
PCM digital audio	16-bit/48 kHz
USB connector type	Mini-USB B
USB 2.0 ports quantity	1
Battery life (max)	3 h
Video recording time	1.6 h
Operating temperature (T-T)	0 - 40 °C
Cables included	USB
Power requirements	12 V DC

Weight and Dimensions

Depth	199 mm
Width	179 mm
Height	308 mm
Weight	2400 g
