Other Operations

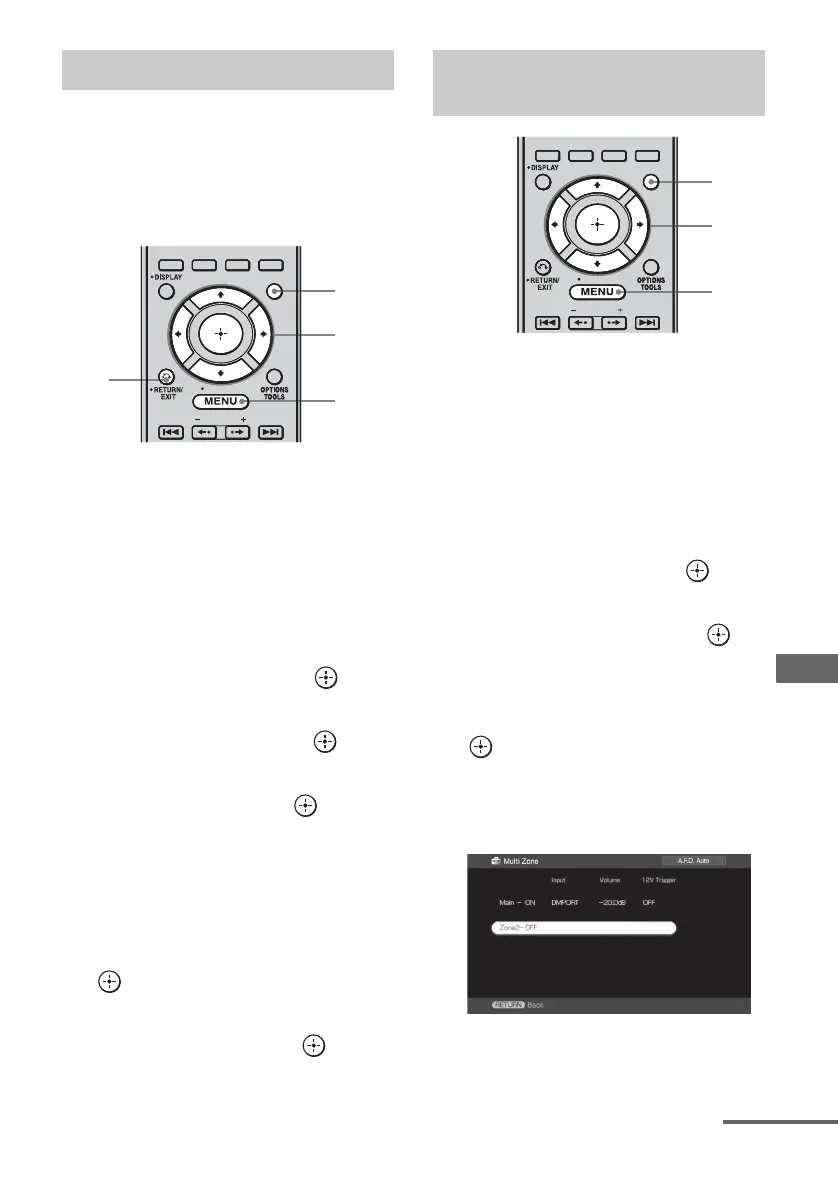

When the speakers in zone 2 are connected to
the SPEAKERS SURROUND BACK
terminals of the receiver (page 104), make the
setting so that the sound selected in zone 2 is
output from the speakers connected to the
SPEAKERS SURROUND BACK terminals.
1 Press GUI MODE repeatedly to
select “GUI ON”.
“GUI MODE” appears in the display
window of the receiver and the GUI menu
appears on the TV screen. Press MENU if
the GUI menu does not appear on the TV
screen.
2 Press V/v repeatedly to select
“Settings”, then press or b.
3 Press V/v repeatedly to select
“Speaker”, then press or b.
4 Press V/v to select “Speaker
Pattern”, then press .
Select the speaker pattern that has no
surround back speakers.
5 Press RETURN/EXIT O.
6 Press V/v repeatedly to select
“Sur Back Assign”, then press
.
7 Press V/v repeatedly to select
“ZONE2”, then press .
1 Press GUI MODE repeatedly to
select “GUI ON”.
“GUI MODE” appears in the display
window of the receiver and the GUI menu
appears on the TV screen. Press MENU if
the GUI menu does not appear on the TV
screen.
2 Press V/v repeatedly to select
“Settings”, then press or b.
3 Press V/v repeatedly to select
“Multi Zone”, then press .
4 Press V/v to select the zone to
which you want to output
audio/video signals, then press
.
“Main” (this receiver) is always selected.
If you do not change the setting, proceed
to step 6.
Setting the speakers in zone 2
CATEGORY
MODE
GUI
MODESLEEP
NIGHT
MODERESOLUTION
HOME
INPUT
MODE
GUI
2-4,
6,7
1
MENU
5
Setting audio/video output
signals to the zone 2
CATEGORY
MODE
GUI
MODESLEEP
NIGHT
MODERESOLUTION
HOME
INPUT
MODE
GUI
2-6
1
MENU
continued

Sony STR-DA3400ES Specifications

General

Equalizer	Yes
Product color	Silver
Frequency range	20 - 20000 Hz
RMS rated power	700 W
Audio output channels	7.1 channels
Total Harmonic Distortion (THD)	0.09 %
Supported radio bands	AM, FM
I/O ports	1 x AV 1 x DM-Port 4 x Audio In 1 x Audio Out 5 x A/V In 1 x A/V Out 1 x S-Video 3 x Component Video In 1 x Component Video Out 1 x Multi-ch In 1 x SW 4 x HDMI In 1 x HDMI Out 4 x Opt. IN 1 x Opt. Out 3 x Coax.
Connectivity technology	Wired
Dimensions (WxDxH)	430 x 388 x 157.5 mm
Power requirements	230 V, 50/60 Hz
HDMI ports quantity	5
Package weight	16000 g
Power consumption (standby)	0.7 W
Power consumption (typical)	360 W

Weight and Dimensions

Weight	12500 g
