Getting Started
The following illustration shows how to
connect a DVD player.
It is not necessary to connect all the cords.
Connect the audio and video cords according
to the jacks of your components.
Note
To output multi channel digital audio from the DVD
player, set the digital audio output setting on the
DVD player. Refer to the operating instructions
supplied with the DVD player.

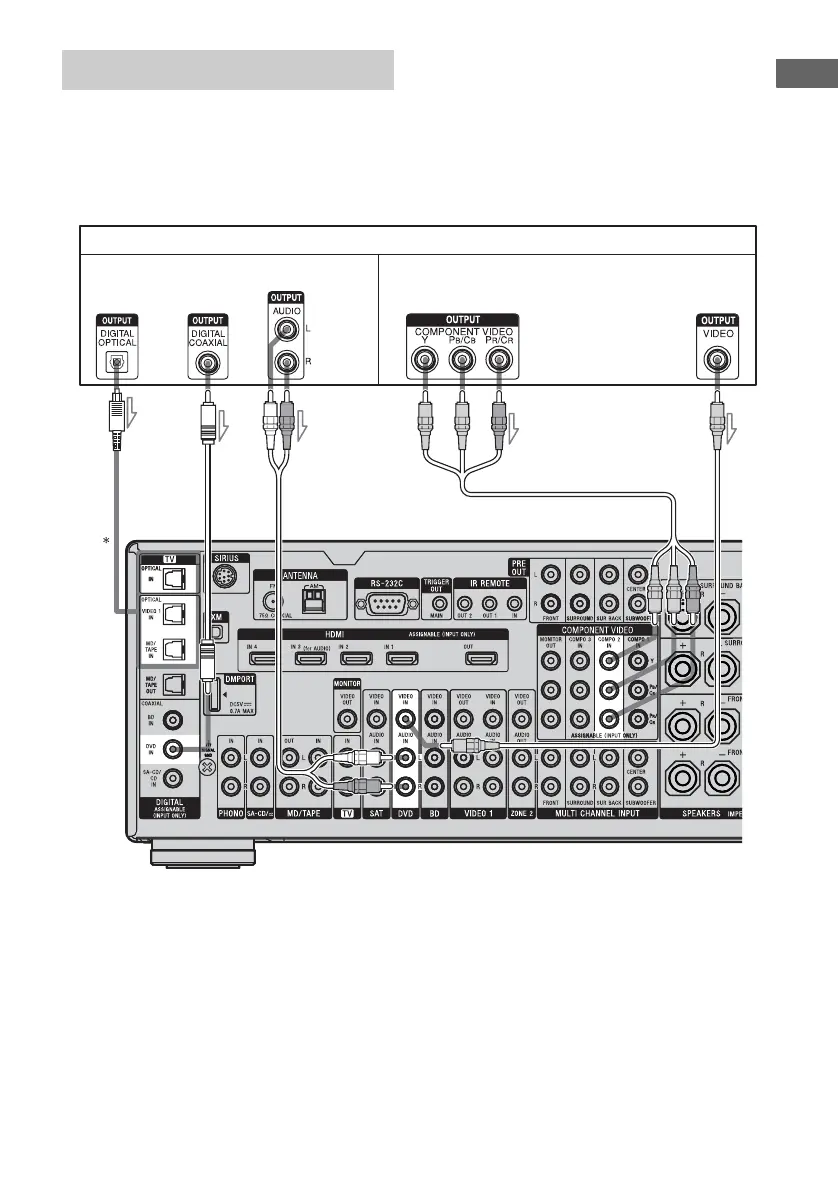

Connecting a DVD player
DVD player
ABC
A Optical digital cord (not supplied)
B Coaxial digital cord (not supplied)
C Audio cord (not supplied)
D Component video cord (not supplied)
E Video cord (not supplied)
* When you connect a component equipped with
an OPTICAL jack, set “Input Assign” in the
Input menu.
Tip
The COMPONENT VIDEO COMPO 2 IN jacks
have been assigned to the DVD player. If you
connect your DVD player to the COMPONENT
VIDEO COMPO 1 or COMPO 3 IN jacks, set
“Input Assign” in the Input menu.
D
Audio signals Video signals
E

Sony STR-DA3400ES Specifications

General

Equalizer	Yes
Product color	Silver
Frequency range	20 - 20000 Hz
RMS rated power	700 W
Audio output channels	7.1 channels
Total Harmonic Distortion (THD)	0.09 %
Supported radio bands	AM, FM
I/O ports	1 x AV 1 x DM-Port 4 x Audio In 1 x Audio Out 5 x A/V In 1 x A/V Out 1 x S-Video 3 x Component Video In 1 x Component Video Out 1 x Multi-ch In 1 x SW 4 x HDMI In 1 x HDMI Out 4 x Opt. IN 1 x Opt. Out 3 x Coax.
Connectivity technology	Wired
Dimensions (WxDxH)	430 x 388 x 157.5 mm
Power requirements	230 V, 50/60 Hz
HDMI ports quantity	5
Package weight	16000 g
Power consumption (standby)	0.7 W
Power consumption (typical)	360 W

Weight and Dimensions

Weight	12500 g
