STR-DE400
5 A-1157-676-A DISPLAY BOARD, COMPLETE
6 3-363-099-02 SCREW (CASE 3 TP2) (BLACK) (AEP, UK)
6 3-363-099-11 SCREW (CASE 3 TP2) (SILVER)
(EXCEPT AEP, UK)
7 4-245-939-01 CASE (BLACK) (AEP, UK)
7 4-245-939-61 CASE (SILVER) (EXCEPT AEP, UK)
8 1-829-004-11 WIRE (FLAT TYPE) (19 CORE)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
SECTION 4
EXPLODED VIEWS
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
Ref. No. Part No. Description Remark
1 4-232-113-01 KNOB (VOL) (BLACK) (AEP, UK)
1 4-232-113-31 KNOB (VOL) (SILVER) (EXCEPT AEP, UK)
2 4-977-358-01 CUSHION
3 X-2103-292-1 FRONT PANEL ASSY (SILVER) (AEP, UK, RU)
3 X-2103-295-1 FRONT PANEL ASSY (SILVER)
(KR, TH, TW, AUS)
3 X-2109-618-1 FRONT PANEL ASSY (BLACK) (AEP, UK)
4 3-087-053-01 +BVTP2.6 (3CR)

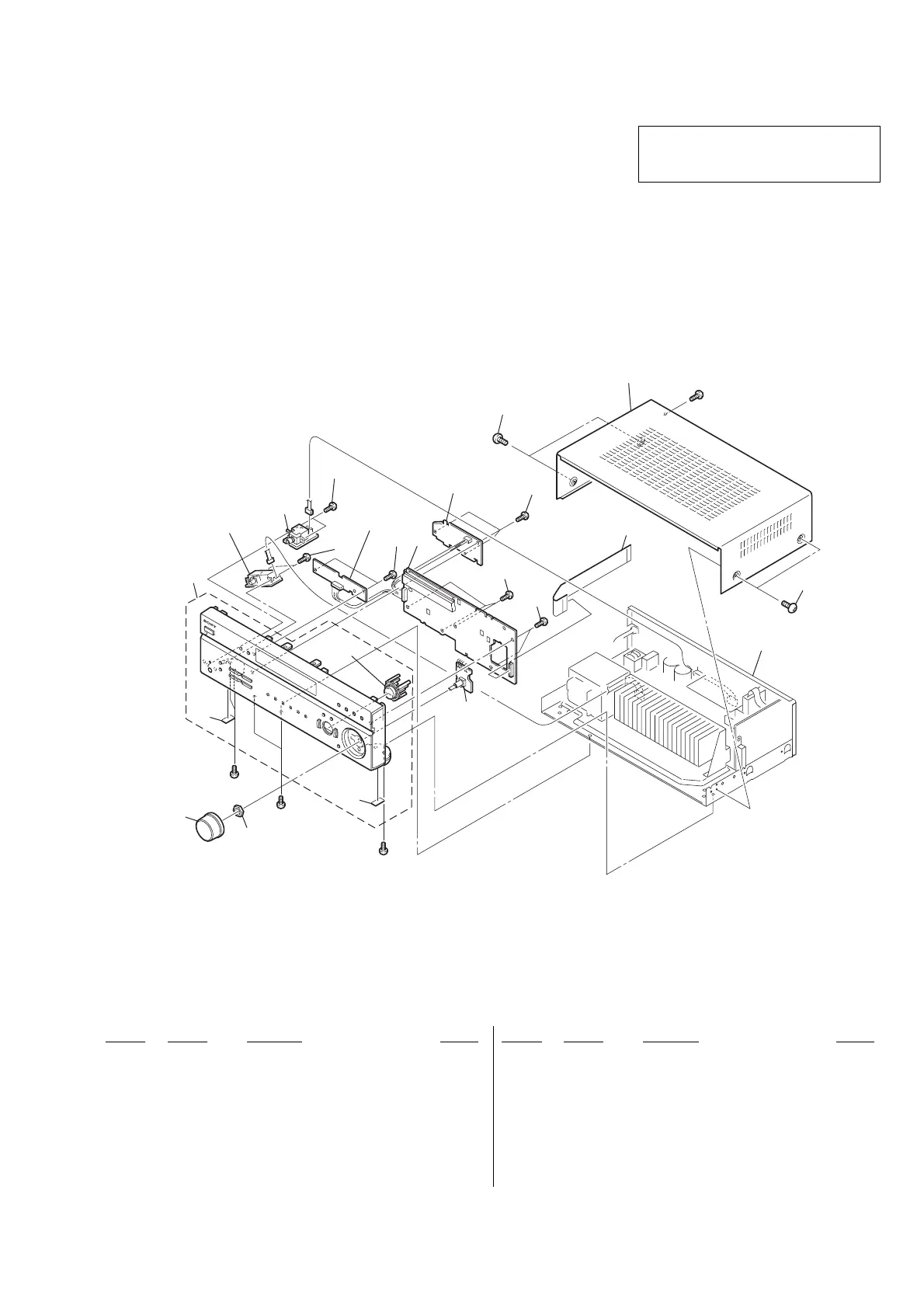

4-1. FRONT PANEL SECTION
Ref. No. Part No. Description Remark
•Abbreviation
AUS: Australian model
KR : Korean model
RU : Russian model
TH : Thai model
TW : Taiwan model
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑ ↑
Parts Color Cabinet’s Color
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
1
2
2
3
6
6
7
#1
#1
4
4
4
4
5
4
4
8
#1
#1
supplied
with RV102
not
supplied
not
supplied
chassis section
not
supplied
not
supplied
not
supplied
not
supplied
Ver. 1.1
To Next Page
