Sony STR-DE400 Service Manual

6
STR-DE400
*You can watch the selected input image when you
connect the MONITOR OUT jack to a TV monitor.

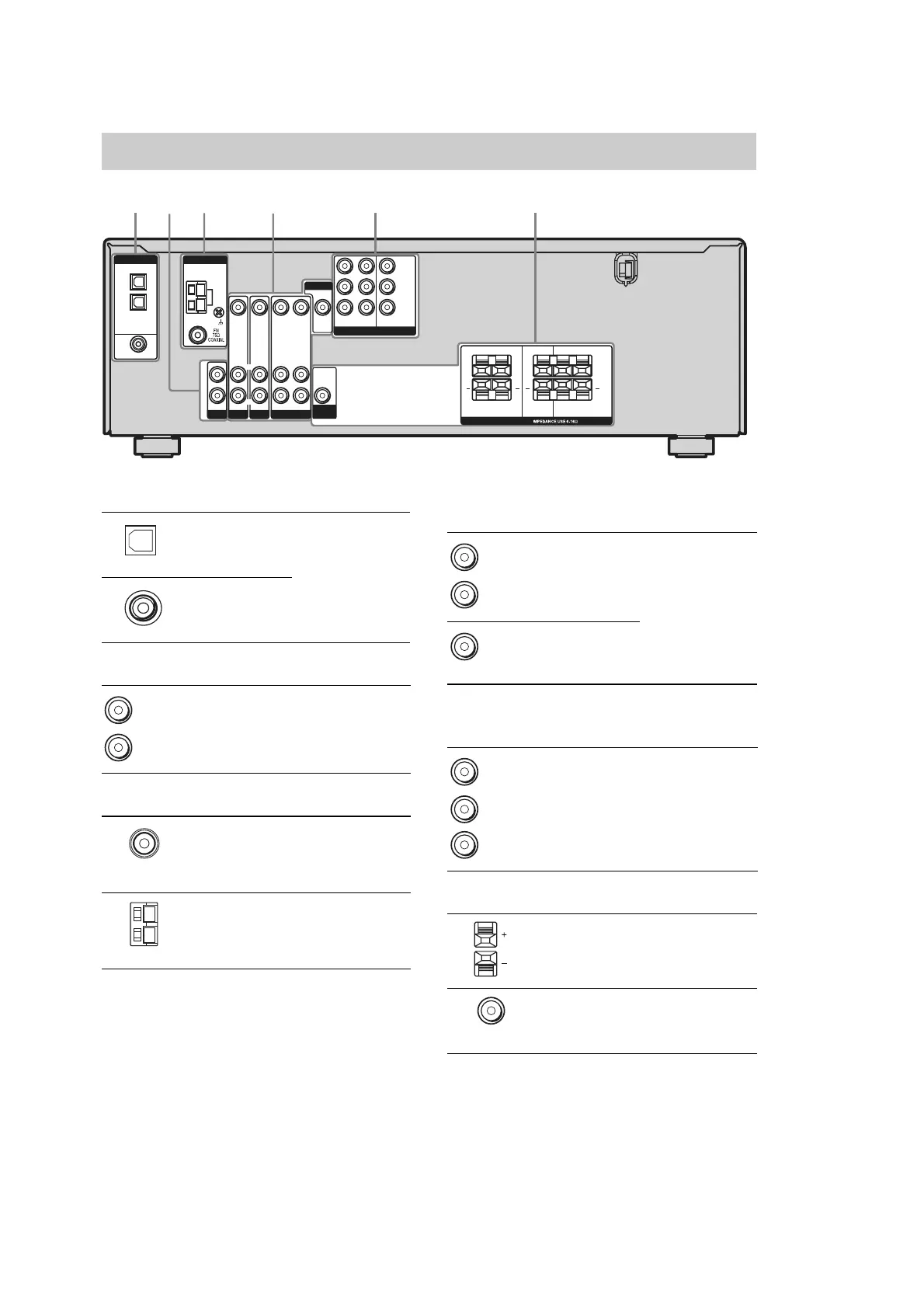

Rear panel
432 5 61
DVD IN
DIGITAL
OPTICAL
VIDEO 2
IN
VIDEO 1
IN
COAXIAL
SA-CD/CD
AUDIO IN
DVD
AUDIO IN
VIDEO 2
AUDIO IN
VIDEO IN VIDEO IN
AM
ANTENNA
SURROUND
SPEAKERS
LR
LR
+ +
CENTER FRONT
LR
LR
+ +
R
L
R
L
R
L
AUDIO
OUT
VIDEO 1
COMPONENT VIDEO
AUDIO IN
VIDEO IN
AUDIO OUT
VIDEO OUT
VIDEO OUT DVD
IN
VIDEO 2
IN
MONITOR
OUT
SUB
WOOFER
MONITOR
Y
P
B /C B
/B–Y
P
R /C R
/R–Y
A DIGITAL INPUT section
OPTICAL
IN jack
Connects to a DVD
player, etc. The
COAXIAL jack
provides a better
quality of loud
sound.
COAXIAL IN
jack
B AUDIO INPUT section
AUDIO IN/
OUT jack
Connects to an MD
deck or CD player,
etc.
C ANTENNA section
FM
ANTENNA
Connects to the
FM wire antenna
supplied with this
receiver.
AM
ANTENNA
Connects to the
AM loop antenna
supplied with this
receiver.
White (L)
Red (R)
D VIDEO/AUDIO INPUT/OUTPUT
section
AUDIO IN/
OUT jack
Connects the video
and audio jacks of
a VCR or a DVD
player.
VIDEO IN/
OUT jack*
E COMPONENT VIDEO INPUT/
OUTPUT section
COMPONENT
VIDEO
INPUT/
OUTPUT
jack*
Connects to a DVD
player, TV, or a
satellite tuner. You
can enjoy high
quality image.
F SPEAKER section
Connects to
speakers.
Connects to sub
woofer.
White (L)
Red (R)
Ye llow
Green
Blue
Red
