Sony STR-DE400 Service Manual

40
STR-DE400
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 X-4953-448-1 FOOT ASSY
52 3-701-748-00 CLAMP
53 3-077-331-21 +BV3 (3-CR)
54 A-1157-640-A STANDBY BOARD, COMPLETE
(AEP, UK, RU, AUS)
54 A-1185-845-A STANDBY BOARD, COMPLETE (KR)
54 A-1185-846-A STANDBY BOARD, COMPLETE (TW)
54 A-1185-847-A STANDBY BOARD, COMPLETE (TH)
55 4-249-675-01 +BV SUMITITE S 4X6 ROUND
56 A-1179-813-A DIGITAL BOARD, COMPLETE (AEP, UK, RU)
56 A-1185-840-A DIGITAL BOARD, COMPLETE (AUS)
56 A-1185-841-A DIGITAL BOARD, COMPLETE (KR)
56 A-1185-848-A DIGITAL BOARD, COMPLETE (TH)
56 A-1185-849-A DIGITAL BOARD, COMPLETE (TW)
57 3-905-609-01 SCREW (TRANSISTOR)
* 58 3-703-244-00 BUSHING (2104), CORD
0 59 1-696-847-11 CORD, POWER (AUS)
0 59 1-769-079-23 CORD, POWER (KR)
0 59 1-777-071-82 CORD, POWER (AEP, UK, RU, TH)
0 59 1-827-597-41 CORD, POWER (TW)
60 A-1179-811-A MAIN BOARD, COMPLETE (EXCEPT TW)
60 A-1187-012-A MAIN BOARD, COMPLETE (TW)
61 1-828-963-11 WIRE (FLAT TYPE) (11 CORE)
(KR, TH, TW, AUS)

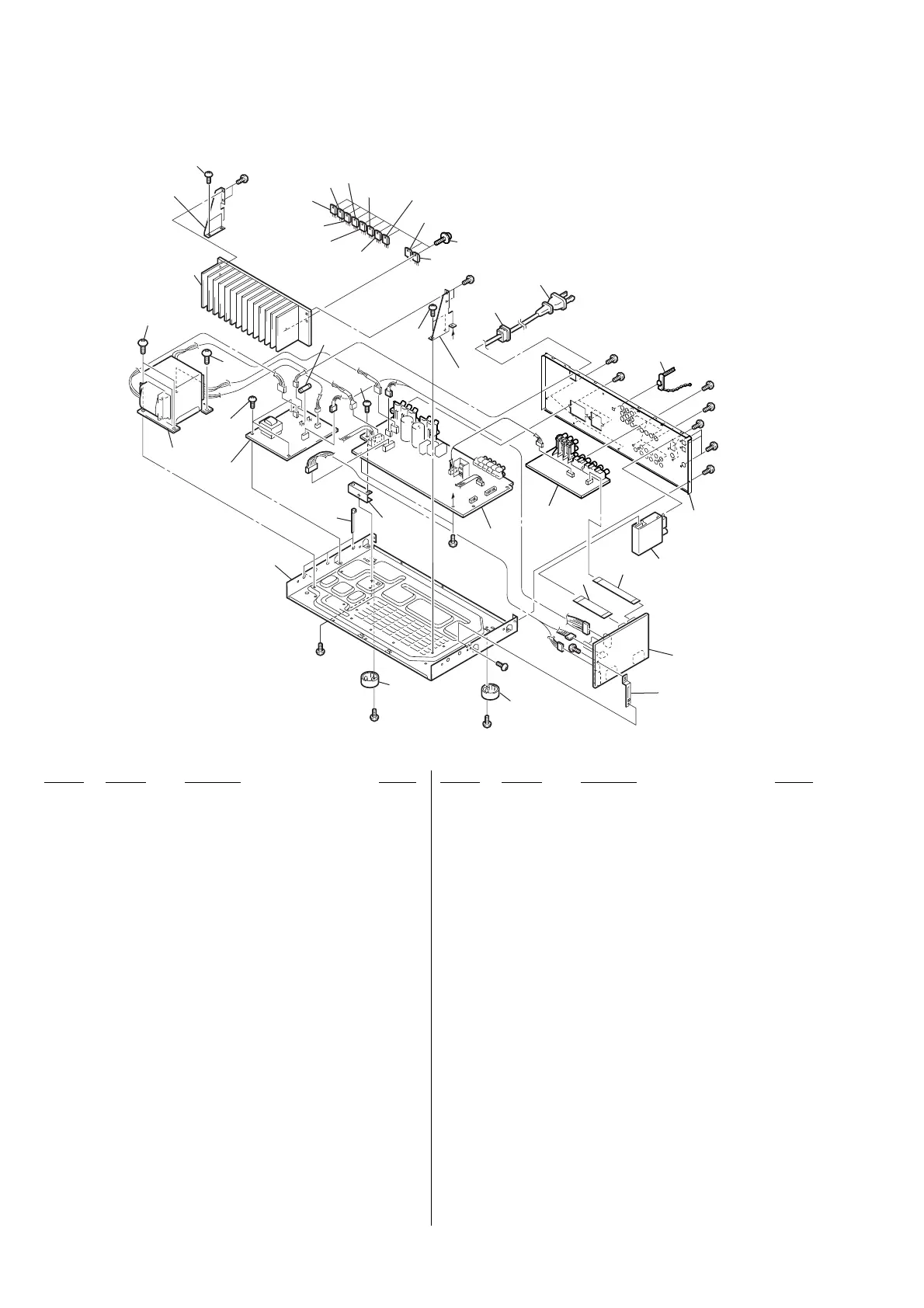

4-2. CHASSIS SECTION
61 1-828-980-11 WIRE (FLAT TYPE) (15 CORE) (AEP, UK, RU)
62 1-828-936-11 WIRE (FLAT TYPE) (5 CORE)
63 4-956-370-12 BAND, PLUG FIXED (UK, AUS)
0 F901 1-532-504-33 FUSE, TIME-LAG (T4A/250V) (TW)
0 F901 1-532-464-33 FUSE (T2.5AL/250V) (EXCEPT TW)
Q503 6-702-390-01 IC MN2488-OPY-MK
Q504 6-702-391-01 IC MP1620-OPY-MK
Q553 6-702-390-01 IC MN2488-OPY-MK
Q554 6-702-391-01 IC MP1620-OPY-MK
Q603 6-702-390-01 IC MN2488-OPY-MK
Q604 6-702-391-01 IC MP1620-OPY-MK
Q653 6-702-390-01 IC MN2488-OPY-MK
Q654 6-702-391-01 IC MP1620-OPY-MK
Q703 6-702-390-01 IC MN2488-OPY-MK
Q704 6-702-391-01 IC MP1620-OPY-MK
0 T901 1-443-916-11 POWER TRANSFORMER (EXCEPT TH, TW)
0 T901 1-443-918-11 POWER TRANSFORMER (TH)
0 T901 1-445-030-11 POWER TRANSFORMER (TW)
TN1 1-693-676-21 TUNER (AEP, UK, RU)
TN1 1-693-678-11 TUNER (KR, TH, TW, AUS)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
51
52
54
Q654
Q554
Q553
Q604
Q504
Q503
Q704
Q703
57
58
59
56
T901
F901
Q603
Q653
51
55
55
#1
#1
#1
#1
#1
53
#1
#1
53
#1
60
53
53
62
TN1
#1
#1
#1
#1
#1
#1
#1
not
supplied
not
supplied
not
supplied
a
a
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
61
63
Ver. 1.2
