Sony STR-DG710 Operating Instructions

15
US
Getting Started

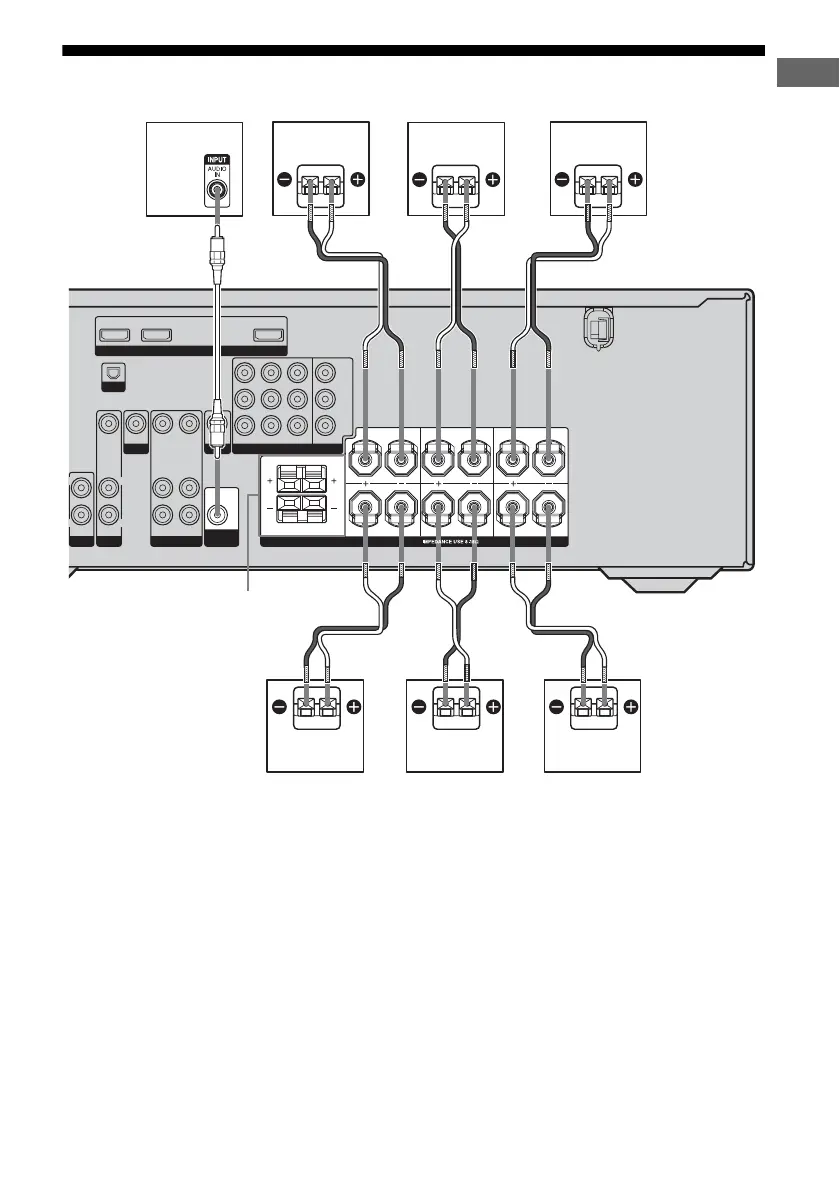

2: Connecting speakers
AFront speaker A (left)
BFront speaker A (right)
CCenter speaker
DSurround speaker (left)
ESurround speaker (right)
FSurround back speaker
GSub woofer
b)
a)
If you have an additional front speaker system,
connect them to the SPEAKERS FRONT B
terminals. You can select the front speakers you
want to use with SPEAKERS (OFF/A/B) on the
receiver (page 27).
b)
When you connect a sub woofer with an auto
standby function, turn off the function when
watching movies. If the auto standby function is
set to on, it turns to standby mode automatically
based on the level of the input signal to a sub
woofer, then sound may not be output.
HDMI
XM
DVD IN VIDEO 2/BD IN OUT
TV
IN
SAT
AUDIO IN
VIDEO IN
DVD
VIDEO IN
VIDEO 1
AUDIO OUT
VIDEO OUT
VIDEO OUT
AUDIO IN
VIDEO IN
L
R
L
R
L
R
MONITOR
SAT IN
COMPONENT VIDEO
DVD IN VIDEO 1 IN
Y
P
B/CB
PR/CR
MONITOR OUT
SUB
WOOFER
FRONT B
L
L
R
R
L
R
CENTER
AUDIO OUT
SPEAKERS
FRONT A SURROUND
SURROUND BACK
G
ECB
A
SPEAKERS FRONT B terminals
a)
A Monaural audio cord (not supplied)
B Speaker cords (not supplied)
D
B
B
AF
