Getting Started
Description and location of parts
Getting Started

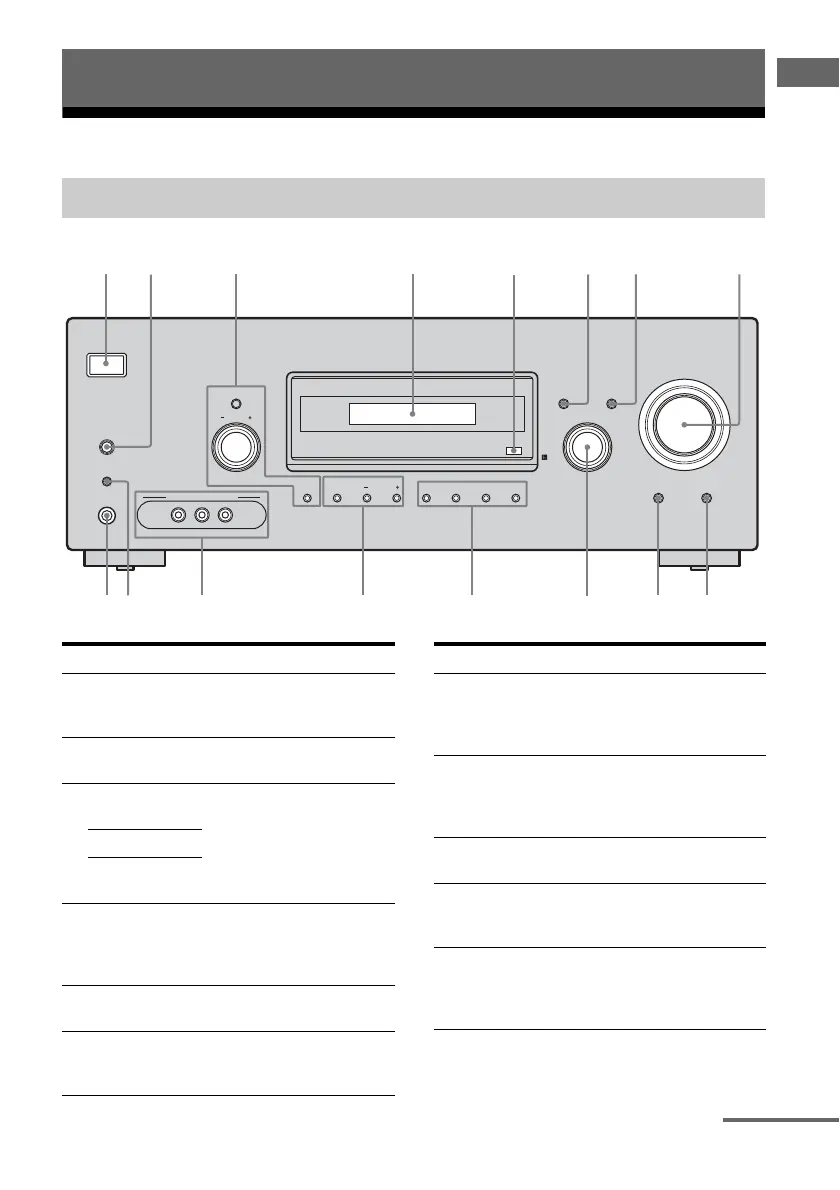

Front panel
?/1
AUTO CAL MIC
SPEAKERS
(OFF/A/B)
PHONES
VIDEO 3 IN/PORTABLE AV IN
VIDEO L AUDIO R
MEMORY/
ENTER
CATEGORY
MODE
CATEGORY
TUNING
2CH A.F.D. MOVIE MUSIC
AUTO CAL DIRECT
DISPLAY INPUT MODE
INPUT SELECTOR
MASTER VOLUME
TUNING MODE
9q;qh qaqd qsqg qf
Name Function
A ?/1
(on/standby)
Press to turn the receiver on
or off (page 26, 34, 35, 55,
82).
B SPEAKERS
(OFF/A/B)
Press to select the front
speaker system (page 27).
C TUNING
MODE
Press or turn to operate the
tuner (FM/AM/XM) (page
55).
TUNING +/–
MEMORY/
ENTER
D Display The current status of the
selected component or a list
of selectable items appears
here (page 7).
E Remote
sensor
Receives signals from remote
commander.
F DISPLAY Press to select information
displayed on the display
(page 73).
Name Function
G INPUT MODE Press to select the input mode
when the same components
are connected to both digital
and analog jacks (page 67).
H MASTER
VOLUME
Turn to adjust the volume
level of all speakers at the
same time (page 32, 33, 34,
35).
I DIRECT Press to listen to high quality
analog sound (page 54).
J AUTO CAL Press to activate the Auto
Calibration function (page
29).
K INPUT
SELECTOR
Turn to select the input
source to play back (page 33,
34, 35, 54, 56, 58, 59, 67, 72,
74).
continued
To Next Page
