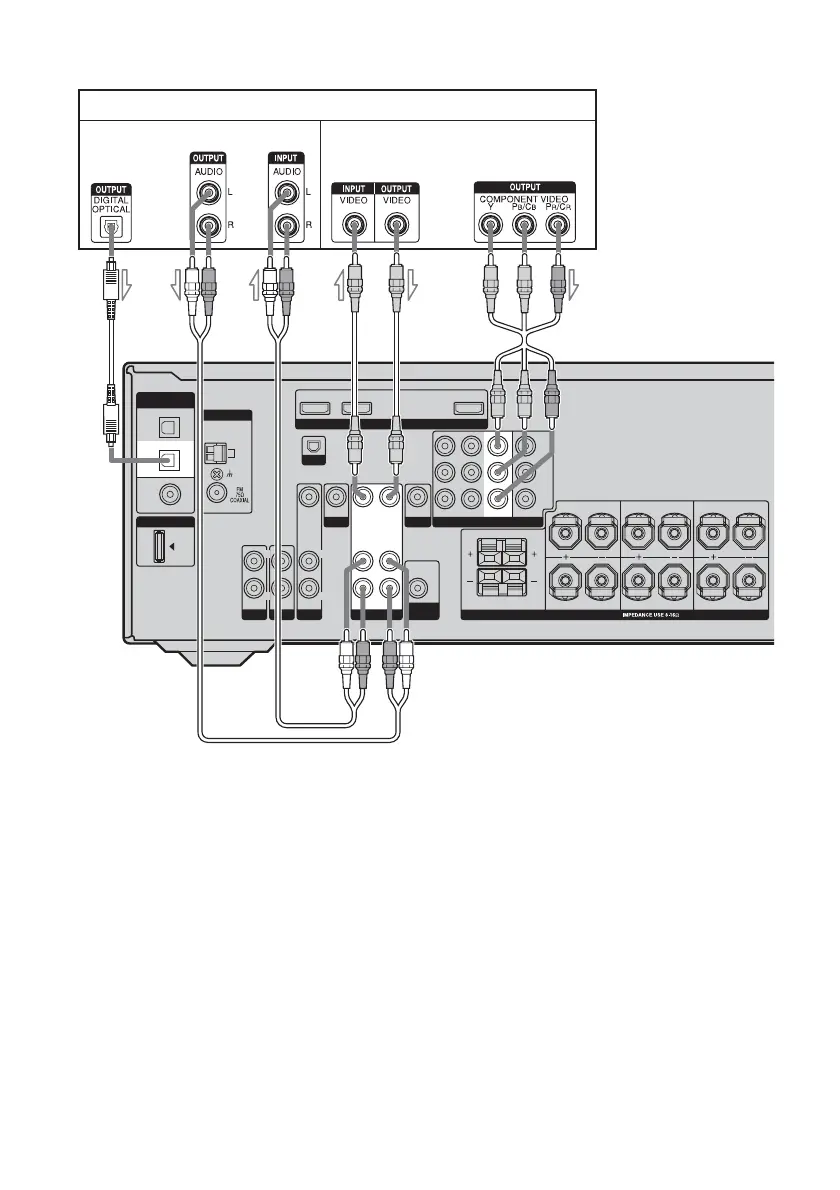

Connecting a DVD recorder
Notes
• Be sure to change the factory setting of the VIDEO
1 input button on the remote so that you can use the
button to control your DVD recorder. For details,
see “Changing button assignments” (page 74).
• You can also rename the VIDEO 1 input so that it
can be displayed on the receiver’s display. For
details, see “Naming inputs” (page 72).
• When connecting optical digital cords, insert the
plugs straight in until they click into place.
• Do not bend or tie optical digital cords.
Tip
All the digital audio jacks are compatible with
32 kHz, 44.1 kHz, 48 kHz, and 96 kHz sampling
frequencies.
DMPORT
ANTENNA
AM
HDMI
XM
DVD IN VIDEO 2/BD IN OUT
TV
IN
SA-CD / CD
IN
SAT
AUDIO IN
VIDEO IN
DVD
VIDEO IN
VIDEO OUT
AUDIO OUT
L
R
L
R
SUB
WOOFER
MONITOR
SPEAKERS
FRONT B
FRONT A
L
L
R
R
SURROUND
L
R
CENTER
SURROUND BACK
VIDEO OUT VIDEO IN
L
R
DIGITAL
(ASSIGNABLE)
OPTICAL
SAT
IN
DVD
IN
COAXIAL
SAT IN
COMPONENT VIDEO
DVD IN VIDEO 1 IN
Y
P
B/CB
PR/CR
MONITOR OUT
VIDEO 1
AUDIO OUT AUDIO IN
VIDEO 1
IN
DVD recorder
BC
A Optical digital cord (not supplied)
B Audio cord (not supplied)
C Video cord (not supplied)
D Component video cord (not supplied)
Video signals Audio signals
D
A
